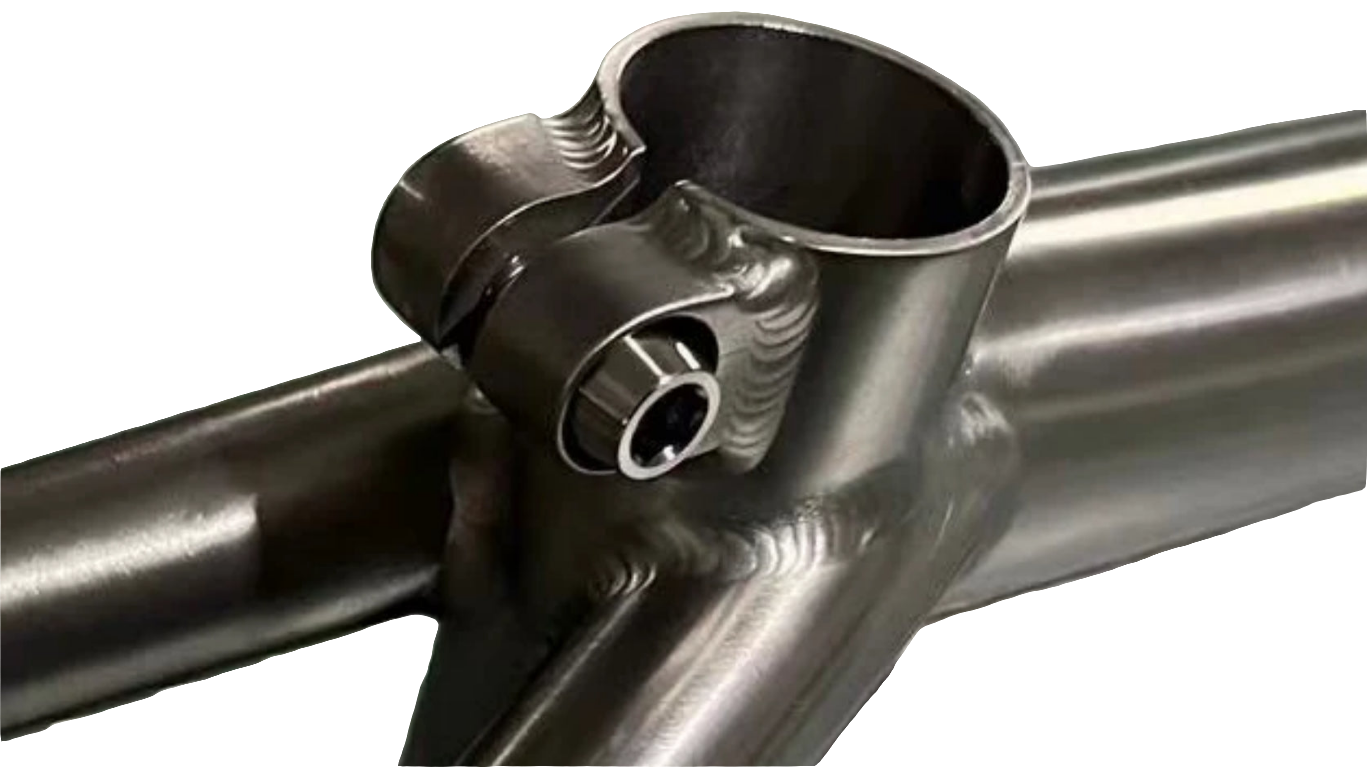

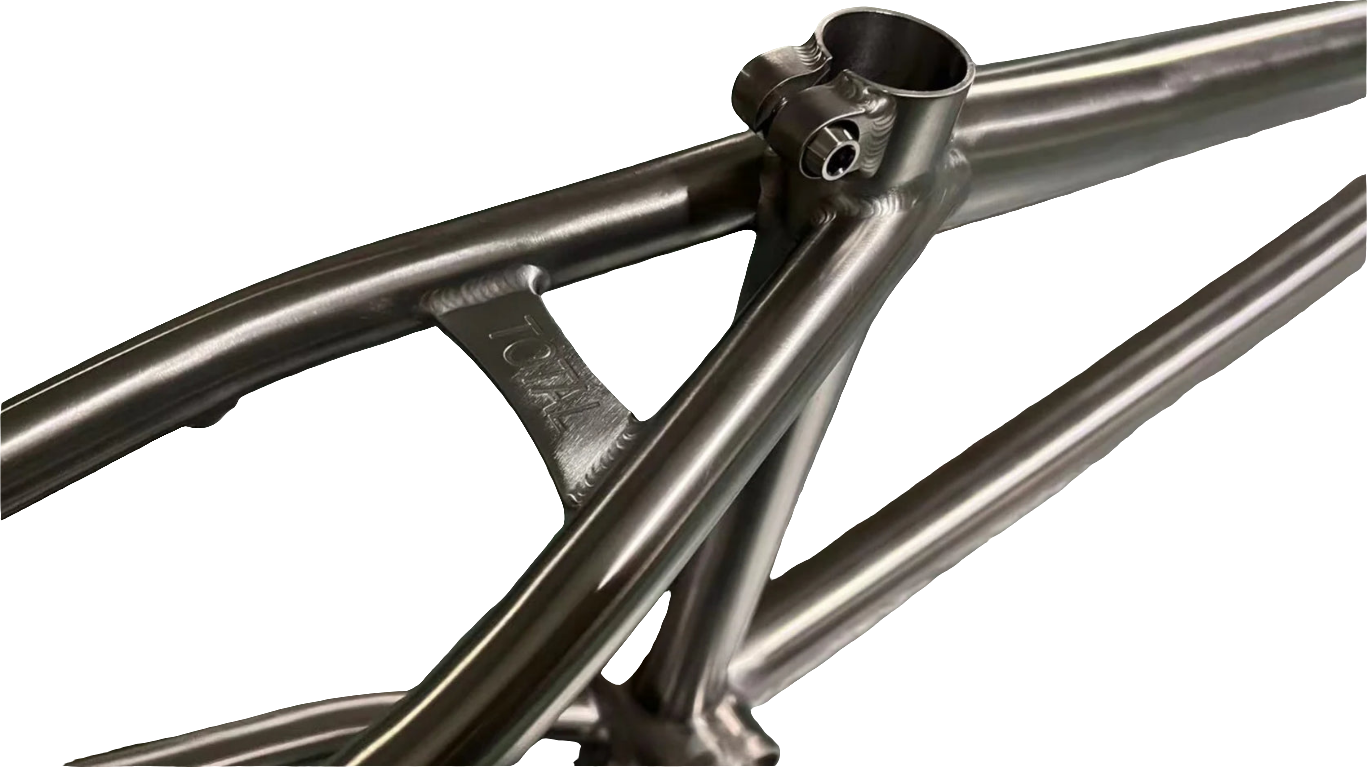

Total Killabee & Team Titanium Frames
Total Killabee & Team Titanium Frames
Killabee Frame Specs:
Material : Titanium Gr9 (Ti3AI2.5V) & Gr5 (Ti6Al4V)
Top Tube Lengths : 19.75, 20.4, 20.7, 20.8, 21 & 21.25"
Head Tube Angle : 75.75 Degrees
Head Tube Length : 120mm
Seat Tube Angle : 71 Degrees
Chain Stay Length : 12.65 - 12.95"
Bottom Bracket Height : 11.6"
Stand Over Height : 7.7"
Bottom Bracket : Mid
Dropouts : 14mm slots | 5.8mm thick | Heat-Treated
Down Tube & T.T. Gussets : External
Tire clearance : Fits large tires (2.4")
Brake Mounts : Removable on seat stay (not included)
Gyro Tab Holes : Yes
Weight: 2.89lbs
Additional Info:
Brake Mounts & Chain Tensioners not included
Recommended for Park Riding, Flatland & Racing use only
Team Frame Specs:
Material : Titanium Gr9 (Ti3AI2.5V) & Gr5 (Ti6Al4V)
Top Tube Lengths : 20.2, 20.5, 20.75 & 21"
Head Tube Angle : 75.75 Degrees
Head Tube Length : 120mm
Seat Tube Angle : 71 Degrees
Chain Stay Length : 12.75 - 13.05"
Bottom Bracket Height : 11.6"
Stand Over Height : 8.25"
Bottom Bracket : Mid
Dropouts : 14mm slots | 5.8mm thick | Heat-Treated
Down Tube & T.T. Gussets : External
Tire clearance : Fits large tires (2.4")
Brake Mounts : Removable on seat stay (not included)
Gyro Tab Holes : Yes
Weight: 2.89lbs
*For Custom Frame Order, Please DM Us @level7bmx*
