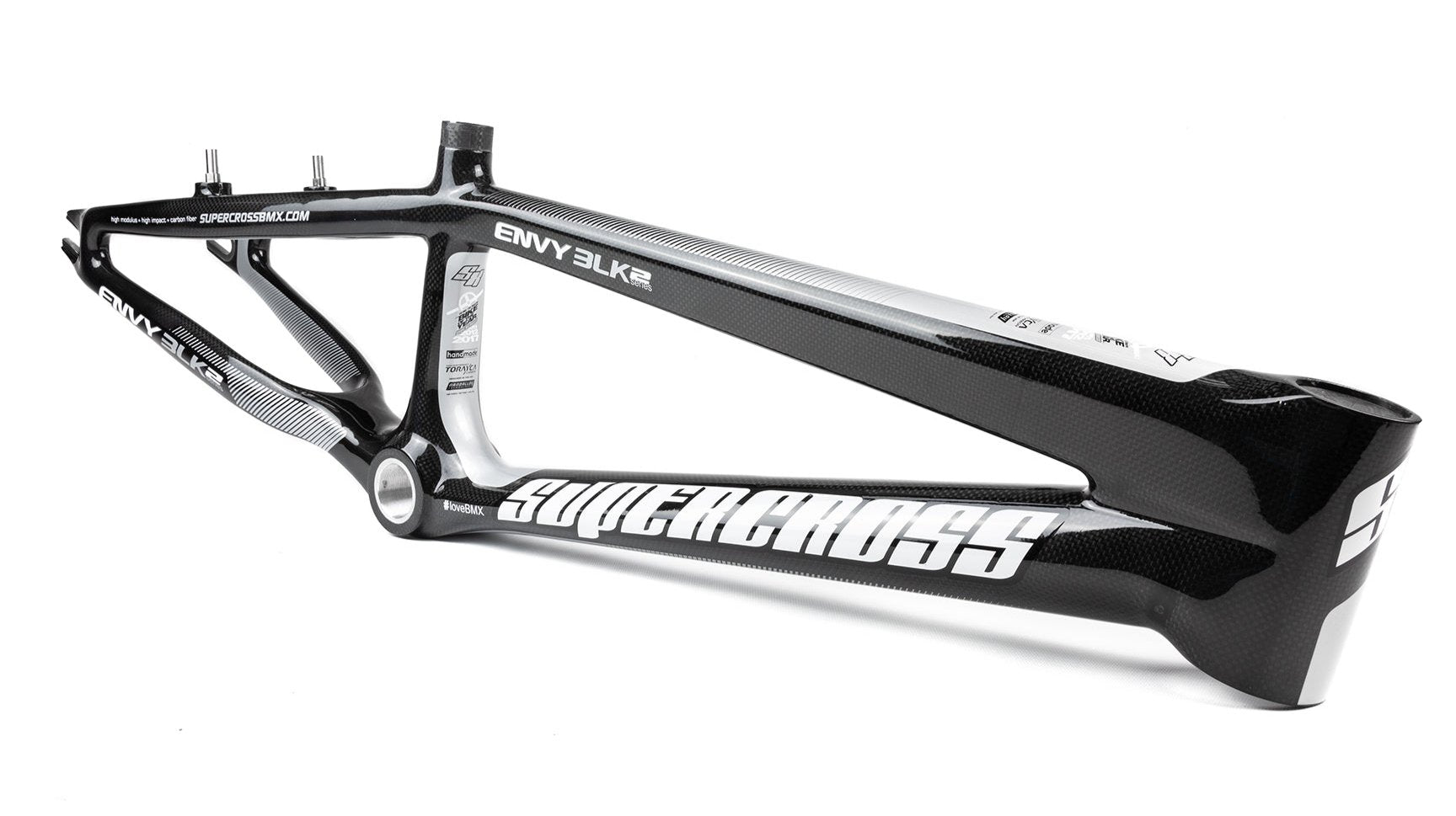

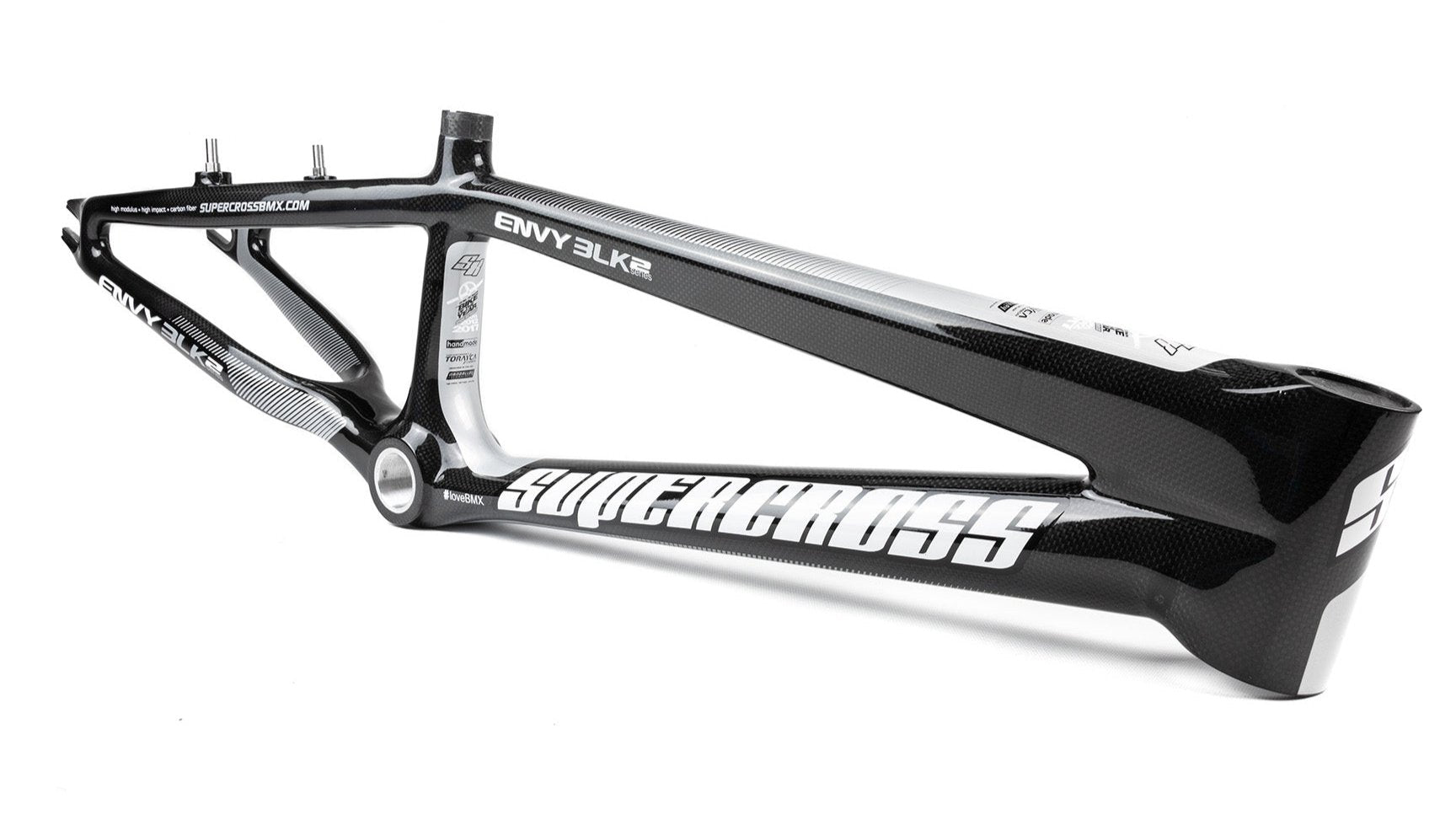

Supercross BMX Envy BLK 2 - Carbon Race Frame 20"
Supercross BMX Envy BLK 2 - Carbon Race Frame 20"
In 2014 we introduced the ENVY BLK Carbon Fiber BMX race Frame. It changed the game for how carbon fiber BMX race frames were built. By utilizing more advanced materials & molding processes we created the apex carbon frame for the time.
Now, with the ENVY BLK 2, it was time to change the game again. As w/ our ENVY RS7, the BLK 2 is evolutionary, not revolutionary!
Utilizing the same World Championship winning geometry of all past Supercross frames, the ENVY BLK 2 evolves the platform by keeping the same mold & technique of the original ENVY BLK but utilizing a new carbon pre-preg material; T1100-KS.
T1100-KS allows us to reduce the frame’s weight another 6% while simultaneously increasing its stiffness & power transfer. The Chart to the left is a product of TORAYCA's testing. This stuff is the same material used for fighter jets, F1 cars, and you get to ride it too! So what are you getting w/ the BLK2? An extremely lightweight & stiff frame built for the best BMX racer. We did all of this while keeping the same comfortable feel of any other Supercross Frame.
Some of you have been screaming as well for custom paint jobs. And while we would love to offer you custom paint jobs, it just isn't affordable to do customs with the ENVY BLK lines. But if you keep watching the site we will continually release limited-edition colorways!
To eliminate that nasty creaking of a press-fit bottom bracket, the BLK2 uses a traditional threaded Euro BB Shell across all models. This technology has proven itself to be the most dependable BB interface. All dropouts are solid Carbon fiber with Titanium inserts molded directly into the frame. The Junior thru Expert XXL uses a 10mm ( 3/8" ) rear axle size, and the Pro sizes use a 15mm rear dropout, also available w/ a 10mm axle adapter.
The headtubes use fully molded Carbon Fiber bearing races to provide the strongest headtube on the market. The Junior thru Expert XXL uses a Campy Std. Size that lets you use either the 1" or the 1 1/8" steertube forks, depending upon which bearing kit you use.
Pro sizes use Tapered Integrated headtubes allowing the use of 1 1/8" - 1.5" steer tube forks. It can still accept the traditional 1 1/8" straight steer tube through the assistance of an adapter included with the Speedline Tapered Headset.
All Supercross BMX ENVY BLK 2 Frames, like our traditional ENVY BLK accept a traditional V-Brake system. Lightweight, Easily adjustable, and no need for a special hubset.
GEOMETRY:
ENVY BLK 2 Carbon | Pro | Pro Plus | Pro XL | Pro XXL | Pro XXXL |
A. Top Tube Length | 20.5" | 20.75" | 21.25" | 21.75" | 22.25" |
B. Chainstay length | 15.0" | 15.0" | 15.2" | 15.2" | 15.2" |
C. Steertube Angle | 74.5º | 74.5º | 74.5º | 74.5º | 74.5º |
D. Seat Tube Angle | 70º | 70º | 70º | 70º | 70º |
E. Bottom Bracket Height | 11.6" | 11.6" | 11.6" | 11.6" | 11.6" |
Seat Post Size | 27.2mm | 27.2mm | 27.2mm | 27.2mm | 27.2mm |
Headset Type | 1 1/8" - 1.5" Integrated | 1 1/8" - 1.5" Integrated | 1 1/8" - 1.5" Integrated | 1 1/8" - 1.5" Integrated | 1 1/8" - 1.5" Integrated |
Wheel Size | 20" X 1.75" | 20" X 1.75" | 20" X 1.75" | 20" X 1.75" | 20" X 1.75" |

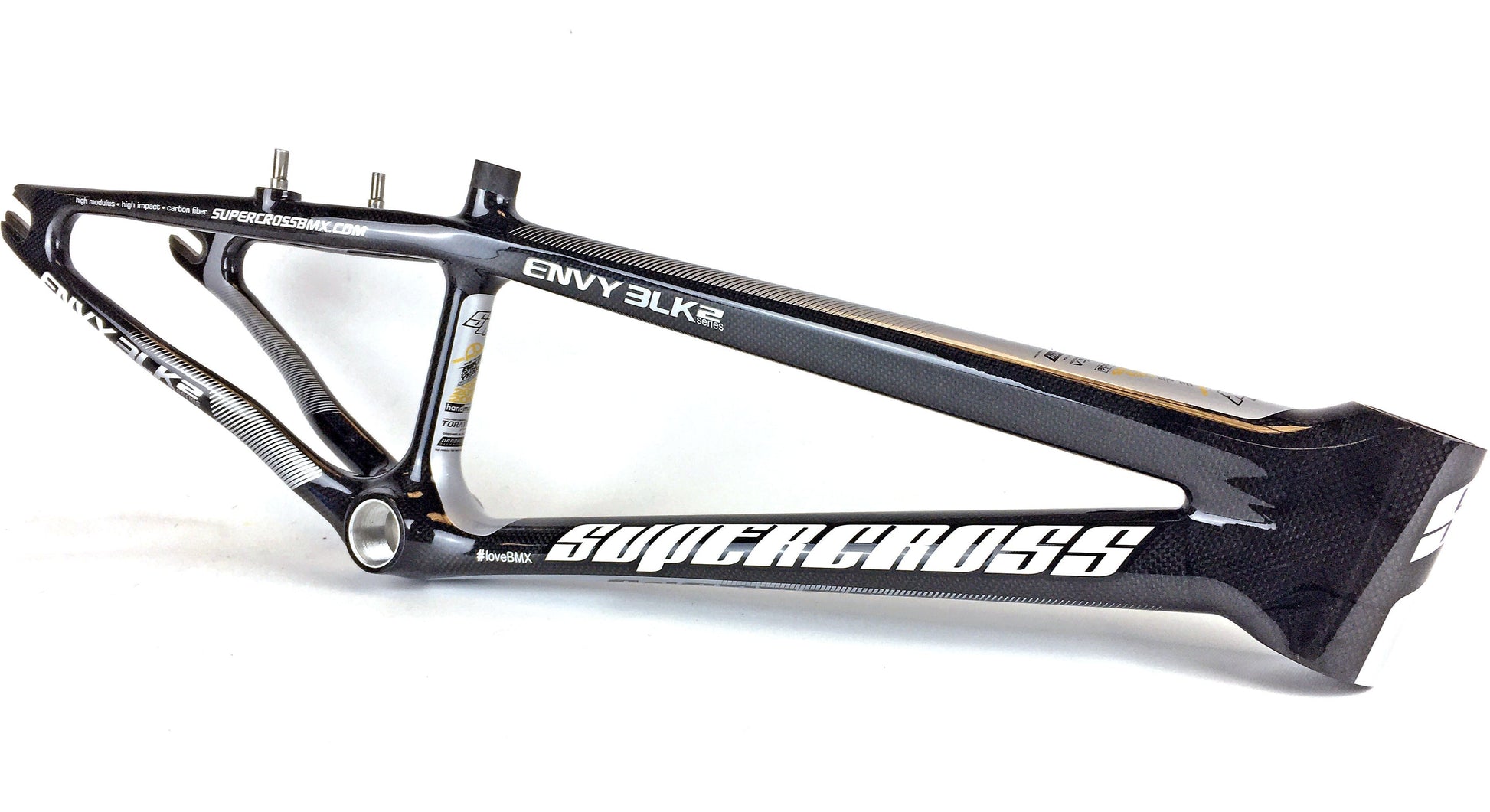

ENVY BLK 2 Carbon | Junior | Expert | Expert XL | Expert XXL |
A. Top Tube Length | 18.5" | 19.5" | 20" | 21" |
B. Chainstay length | 12.5" | 13.75" | 14.0" | 14.25" |
C. Steertube Angle | 73.5º | 74º | 74º | 74º |
D. Seat Tube Angle | 70º | 70º | 70º | 70º |
E. Bottom Bracket Height | 10.7" | 11.2" | 11.2" | 11.25" |
Seat Post Size | 22.2mm | 22.2mm | 22.2mm | 22.2mm |
Headset Type | Campy Integrated | Campy Integrated | Campy Integrated | Campy Integrated |
Wheel Size | 20" X 1" | 20" X 1 3/8" | 20" X 1 3/8" | 20" X 1 3/8" |
