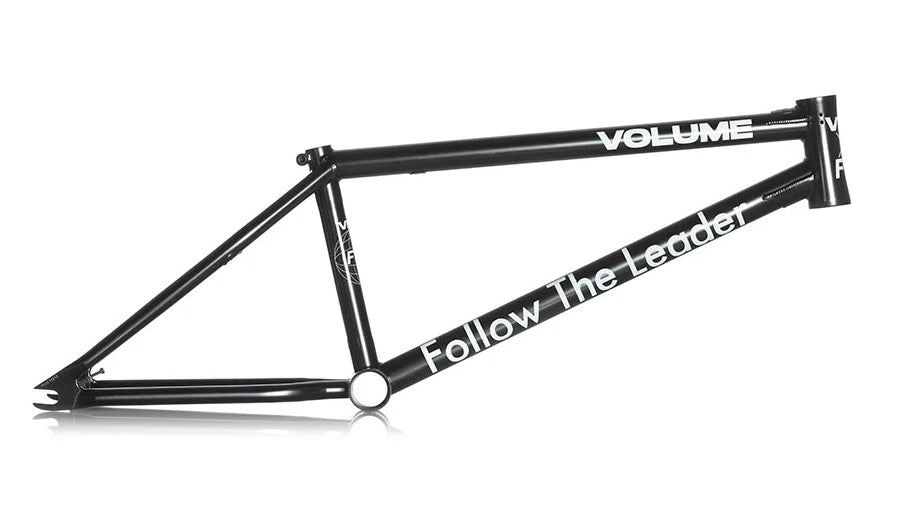

Volume x FTL Frame

With a new boxed chainstay junction, creating a unique look & a stiff rear end, as well as a laser cut seatstay bridge w/ 'FTL' CNC cut into it.

This FTL also includes our oval downtube to prevent dents, top & downtube gussets, hourglass headtube, S bend chainstays for bigger tire clearance & lastly our 7mm thick investment cast dropouts w/ built in chain tensioners.

The Geometry is a steeper 75.50º head tube, shorter 12.8” slammed chainstay (13.05” center to center), & a higher 9.50” seat tube height.

Includes removable brake mounts.

• Volume x FTL Frame
• Top Tube: 20.5″, 20.75″ & 21″
• Chainstay: 12.8″ (Slammed)
• BB height: 11.7″
• Seat Tube height: 9.50″
• Head Tube Angle: 75.50°
• Seat Tube Angle: 71°
• Seat Post: 25.4
• Headtube: Integrated (45°X45° Campy Spec)
• Brake Mounts: Removable Seatstay Mounts
• Dropouts: Heat Treated Investement Cast, 7mm thick W/Built In Chain Tensioners. Clears hub guards and pegs of all sizes.
• Color: Glacier Blue, ED Black
