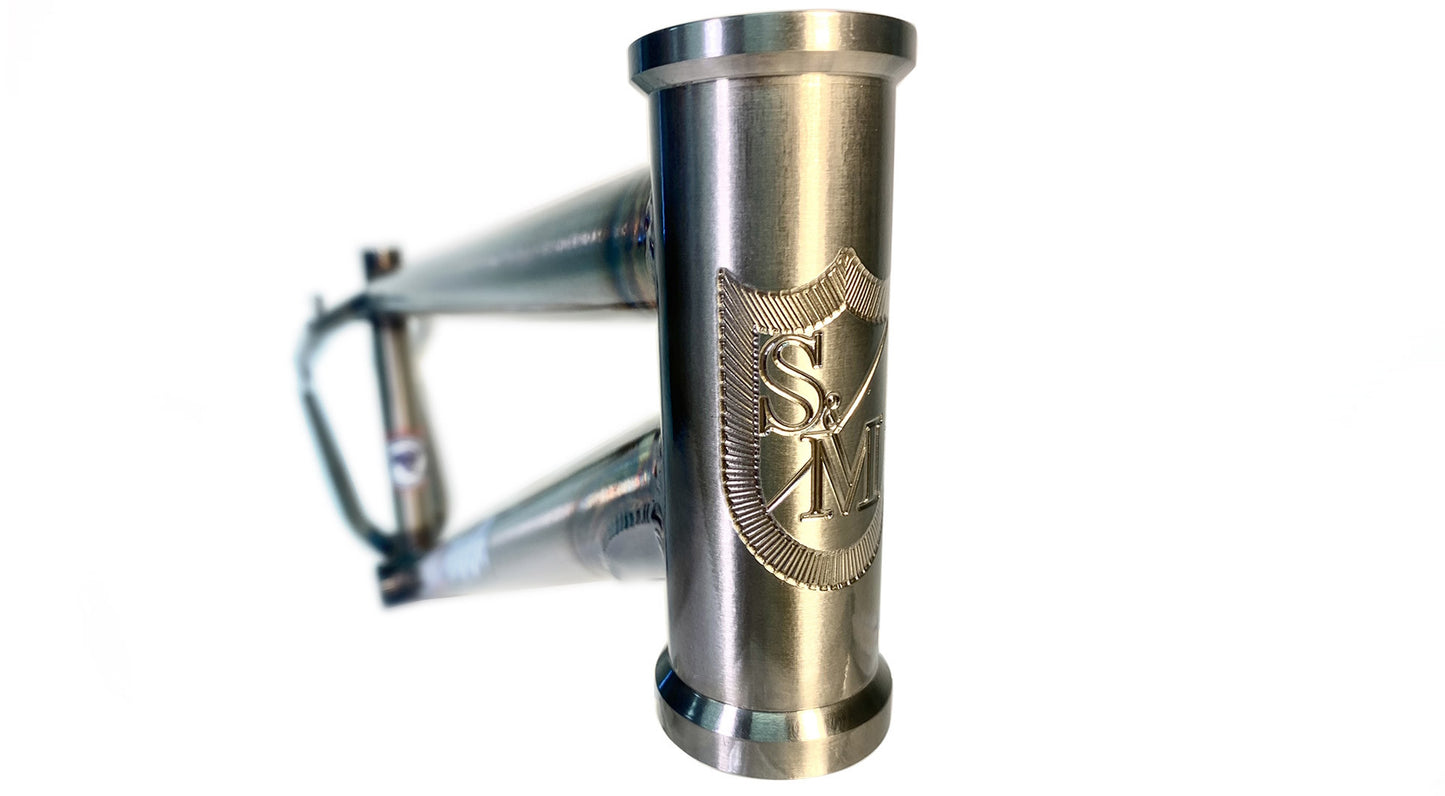

S&M Steel Panther Race Frame 20" & 24"
S&M Steel Panther Race Frame 20" & 24"
Regular price
$549.99
Regular price
Sale price
$549.99
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Details 20"
Prowling BMX tracks, easily preying on weaker Asian varieties, the American Steel Panther is King of the cr-mo race frame jungle. And unlike it’s predecessors the 38 Special & Speedwagon, it’s not named after a cheesy rock band from the 80’s.
Some notable improvements from the Speedwagon include: Additional bend in seat-stays for greater chain clearance, integrated chain tensioners in drops & slightly lower stand-over. Rear-end length depends on Top Tube length.
| TOP TUBE/REAR END' | 20.5", 20.75" / 13.9" - 14.9" 21",21.25",21.5" & 22"/ 14.4"-15.4" & 15.25"-16.25" |
| TOP TUBE/REAR END | 21.75", 22", 23" / 14.9"-15.9" |
| HEAD TUBE ANGLE | 74.5° |
| HEAD TUBE STYLE | Integrated (45°/45°, 41.8mm) |
| SEAT TUBE ANGLE | 71° |
| SEAT CLAMP | Traditional Slot |
| SEAT POST SIZE | 27.2mm |
| BB HEIGHT | 11.5" |
| BB STYLE | 68mm Euro |
| STANDOVER HEIGHT | 7.75" |
| BRAKE MOUNTS | V Brake |
| DROPOUTS | 3/8" Slot, Built In Tensioner |
| GYRO TABS | None |
| WEIGHT | 4.17lbs. (1.89 kg) (21") |
| TUBESET | Butted Thermal-X |
