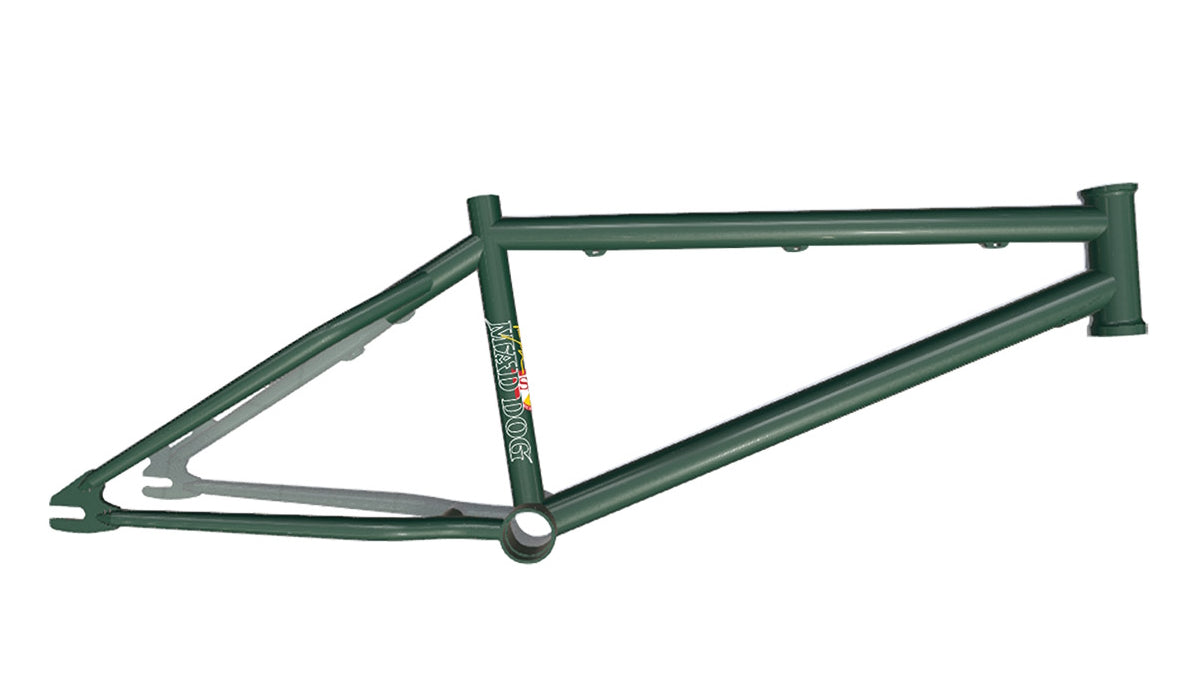

S&M Mad Dog Frame
S&M Mad Dog Frame
Couldn't load pickup availability
| TOP TUBE LENGTHS | 20.5", 20.75", 21", 21.125", 21.25", 21.5", 21.75", 22" |
| REAR END LENGTH | 13.9" |
| HEAD TUBE ANGLE | 74.25° |
| STANDOVER HEIGHT | 10" |
| B.B. HEIGHT | 11.6" |
| SEAT TUBE ANGLE | 71° |
| HEAD TUBE | 5" Tall Integrated Campy Style |
| B.B. STYLE | Mid |
| BRAKE MOUNTS | Disk 120mm Rotor Spacing with 0mm IS to POST mount adaptor, 140mm Rotor with 20mm IS to POST mount adaptor. |
| DROPOUTS | 3/8" |
| SEAT POST SIZE | 1" / 25.4mm - Frame slotted for 28.6mm Seat Post Clamp |
| WEIGHT | 4.9lbs |
Throw a dog a wishbone! And a disc brake, w/ a tall stand-over, but keep it light (sub 5lbs) & you’ve got yourself the reincarnated Chris “Mad Dog” Moeller frame. It only took 36 years for S&M’s Top Dawg to drop another bike custom-crafted for his breed of biking, but much like the original, its designed for dudes who want to terrorize the trails & the track & claim their territory doing it.
Engraved Shield on Headtube. Engraved '87' on BB shell. MAD DOG-tag on seat-tube
Disk mount is designed for 120mm rotor w/ 0mm IS to POST mount adaptor, 140mm rotor requires a 20mm IS to POST mount adaptor. Max sprocket size w/ proper chain alignment is 39 tooth. Seat tube is slotted for traditional 28.6mm seat clamp or Quick Release 28.6mm seat clamp. Rear drop-out spacing is traditional BMX 110mm.
