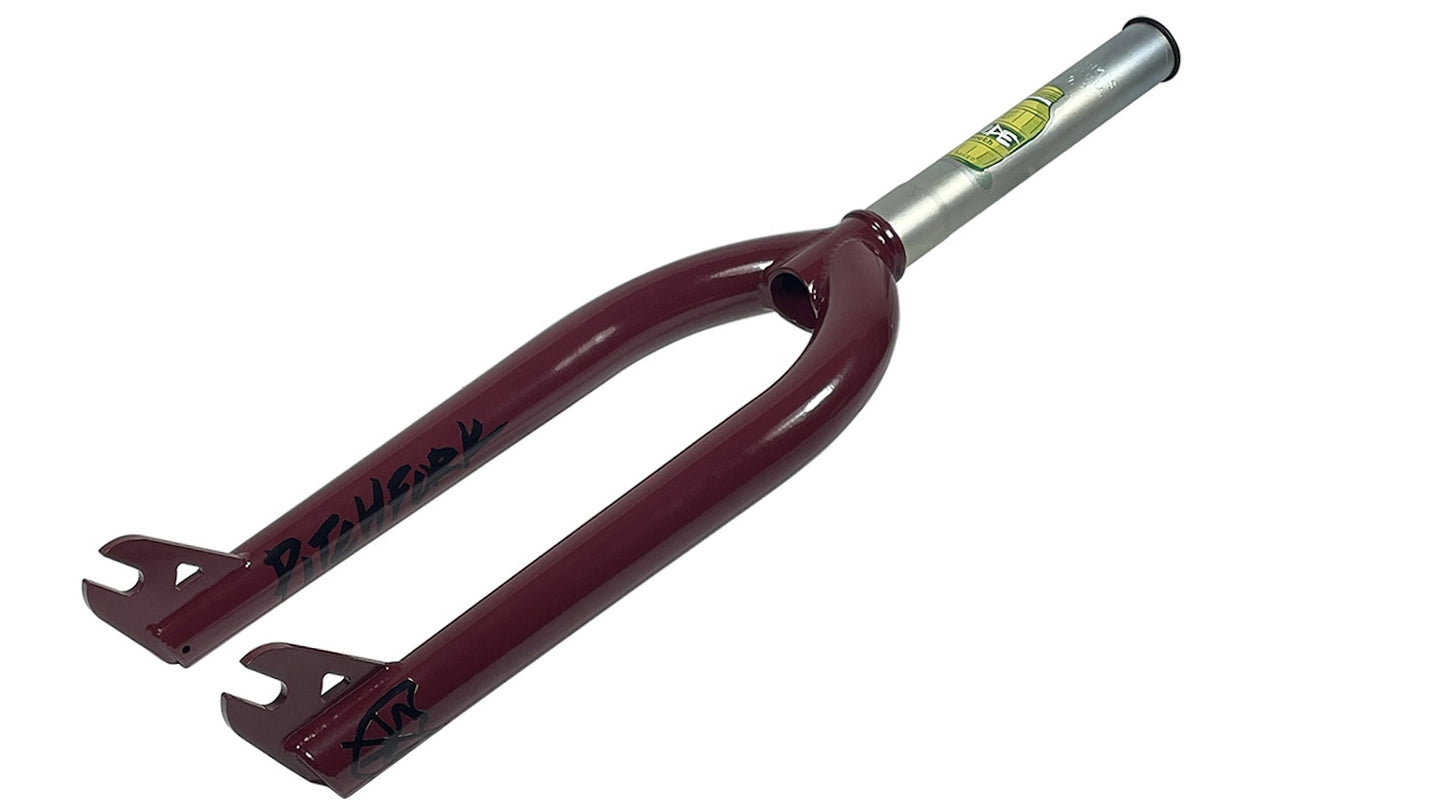

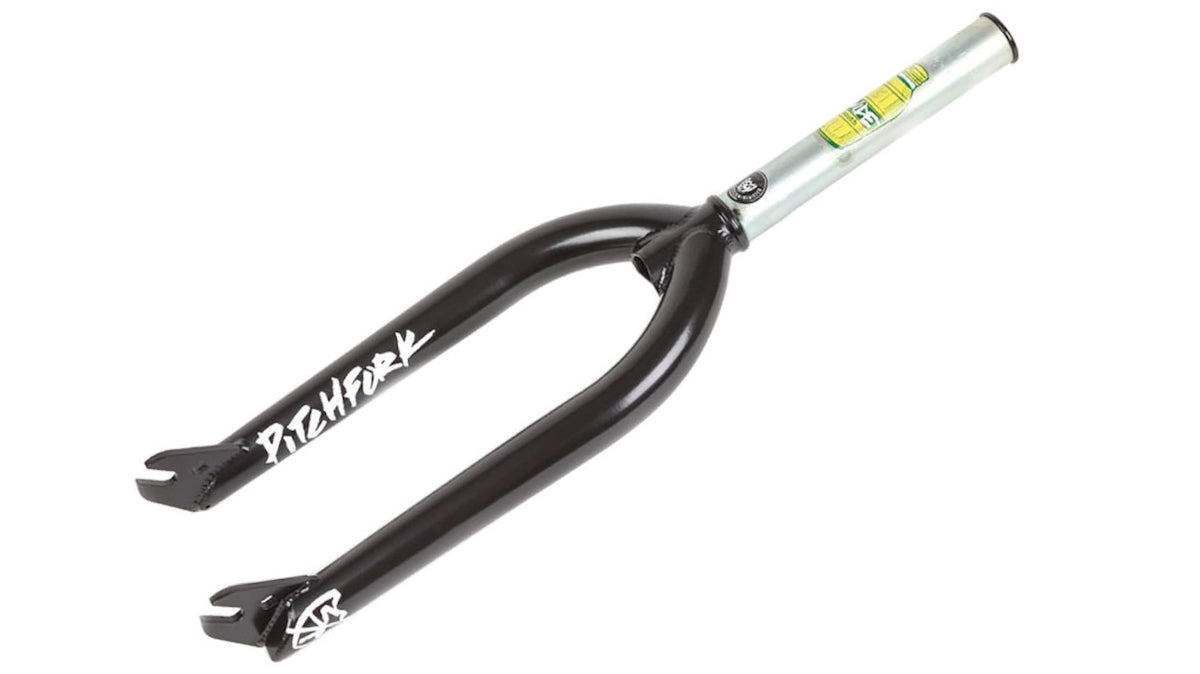

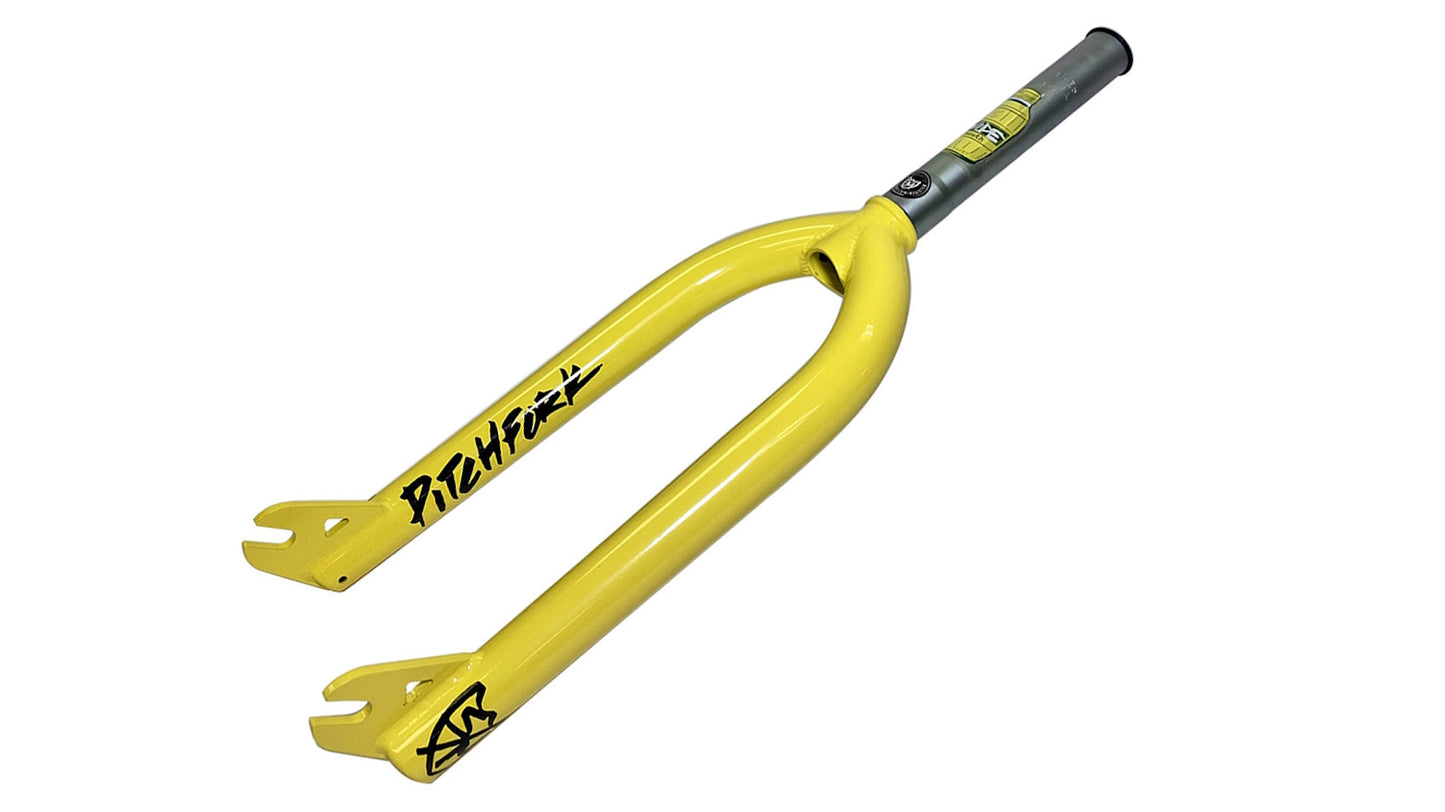

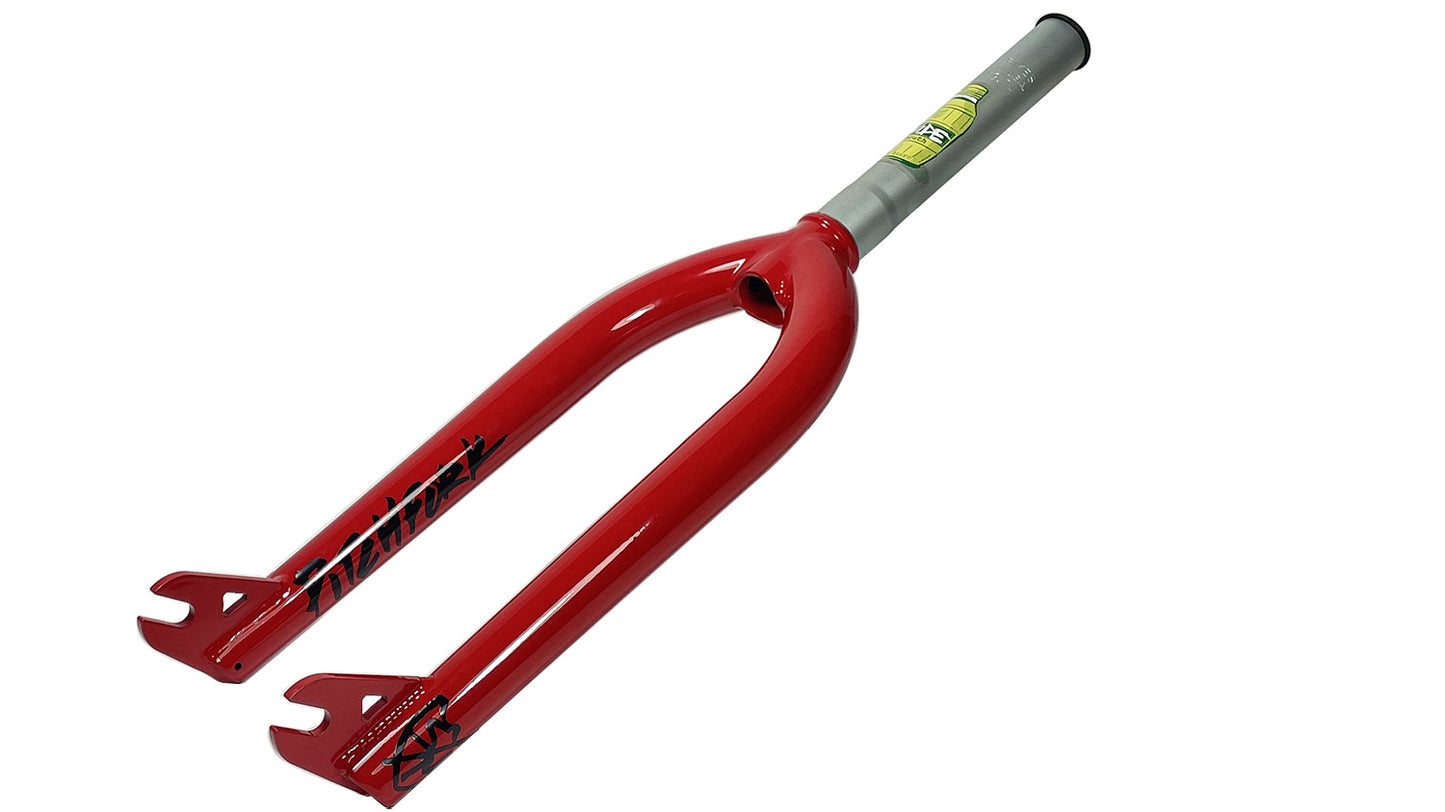

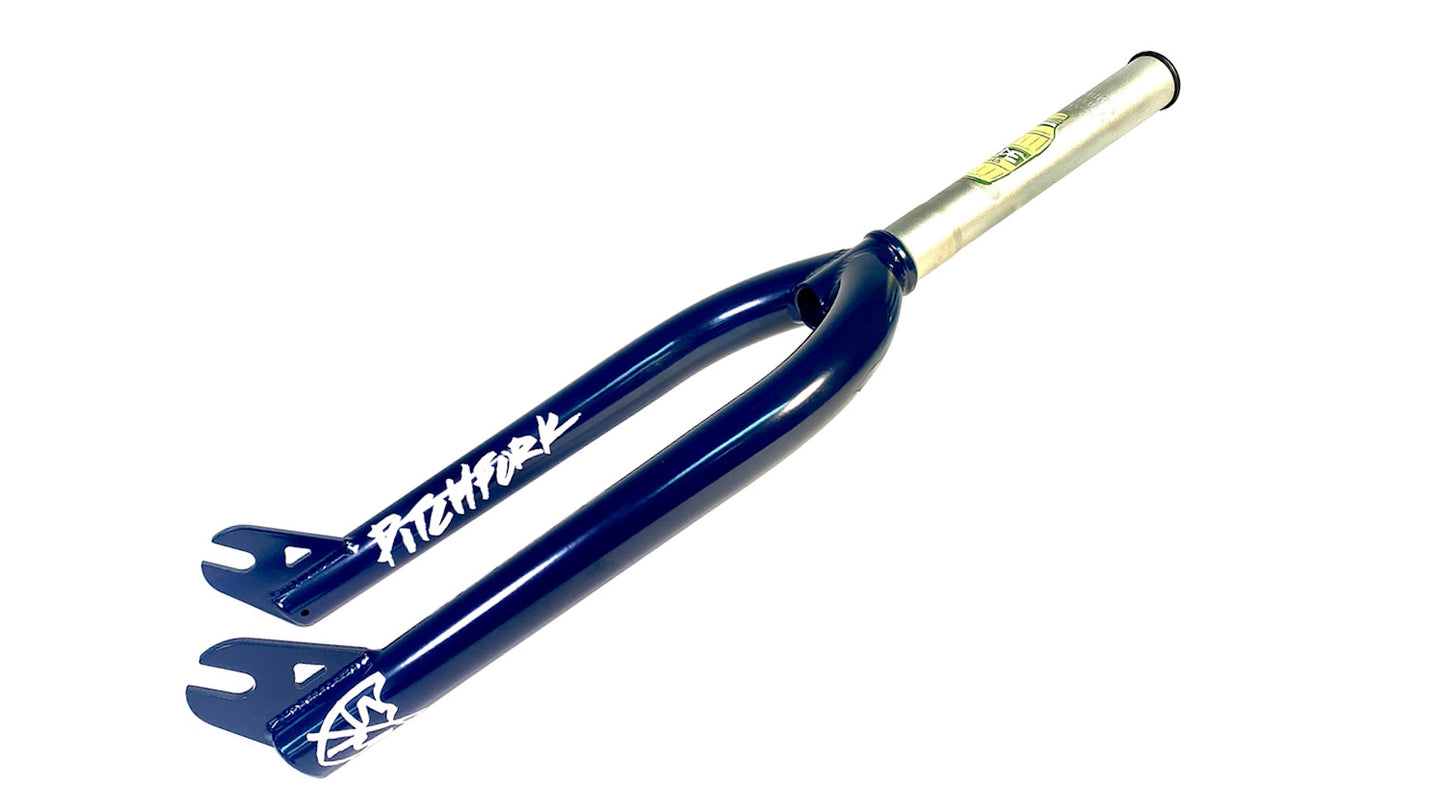

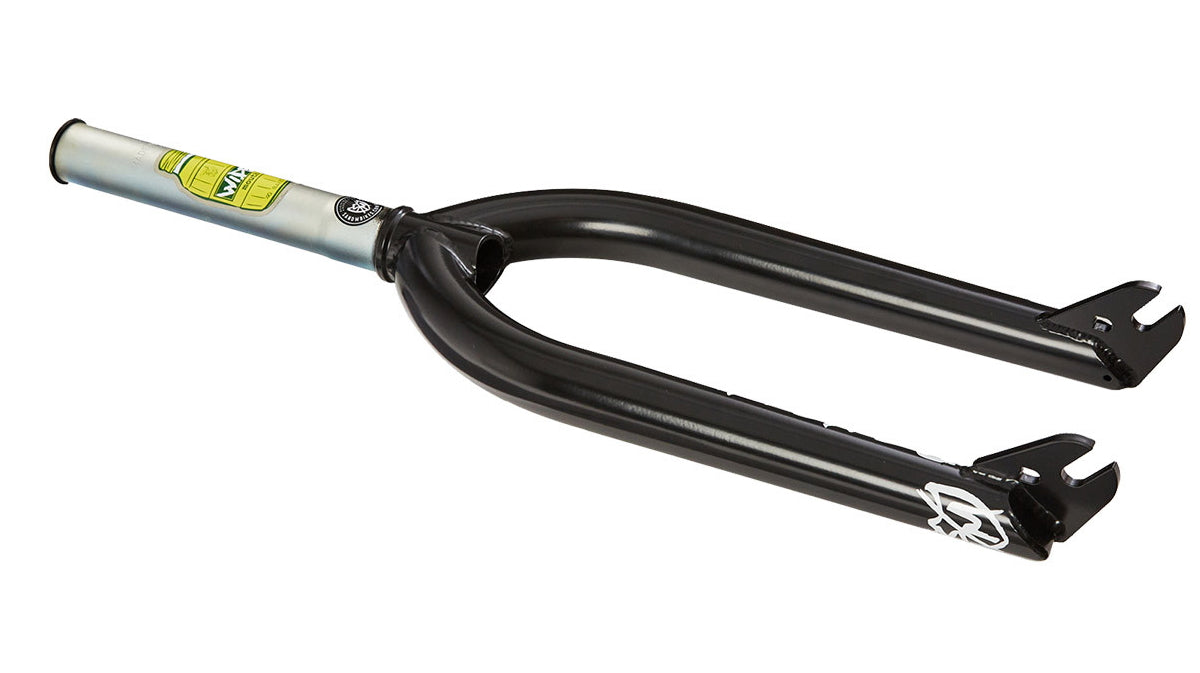

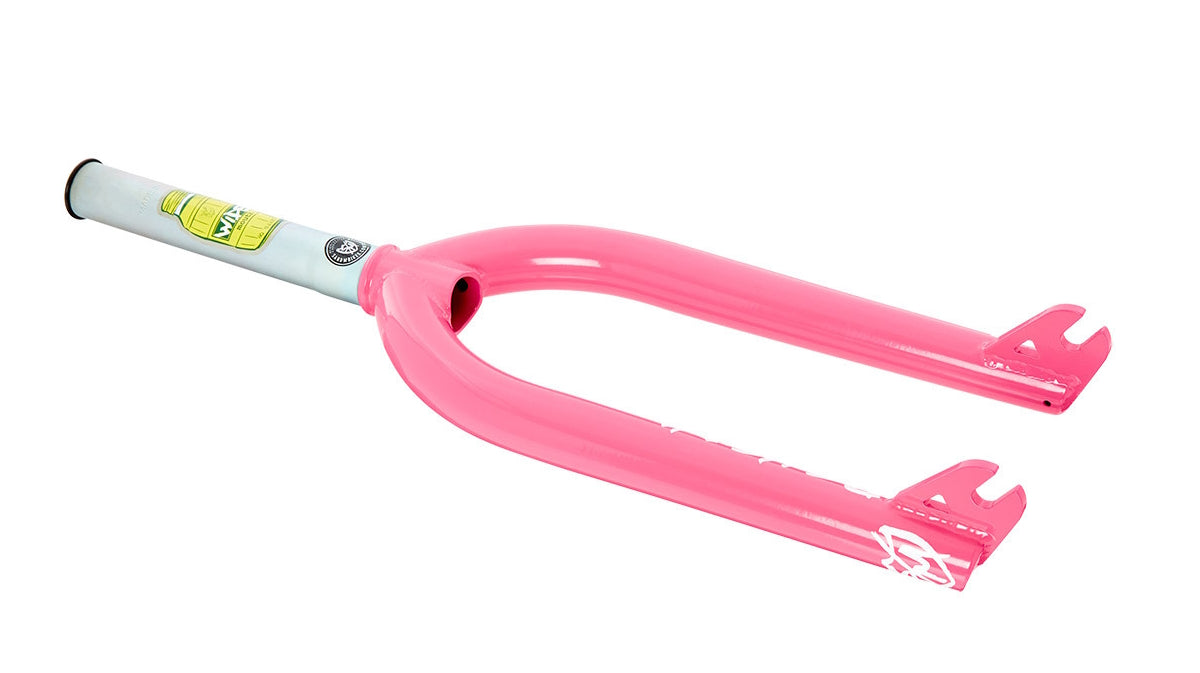

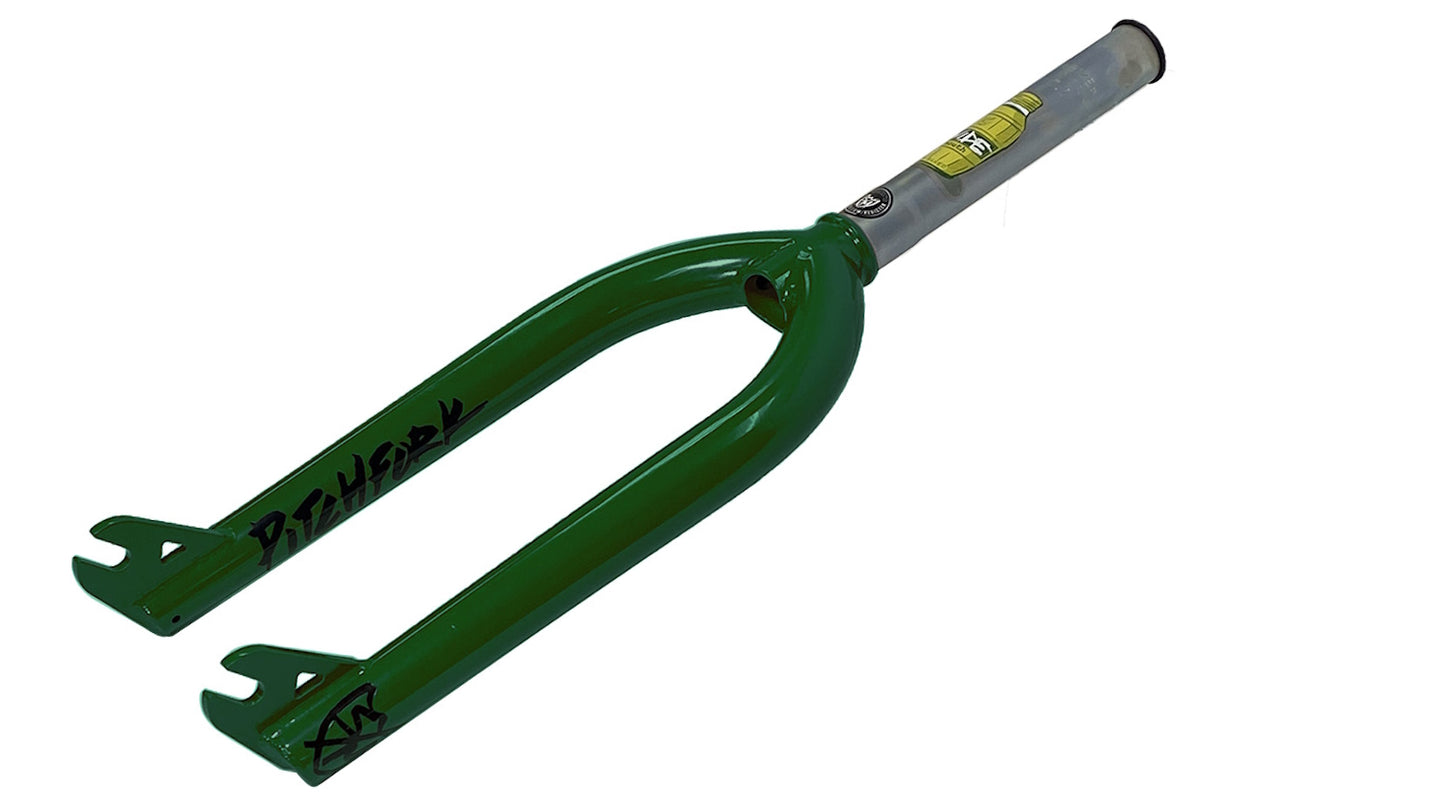

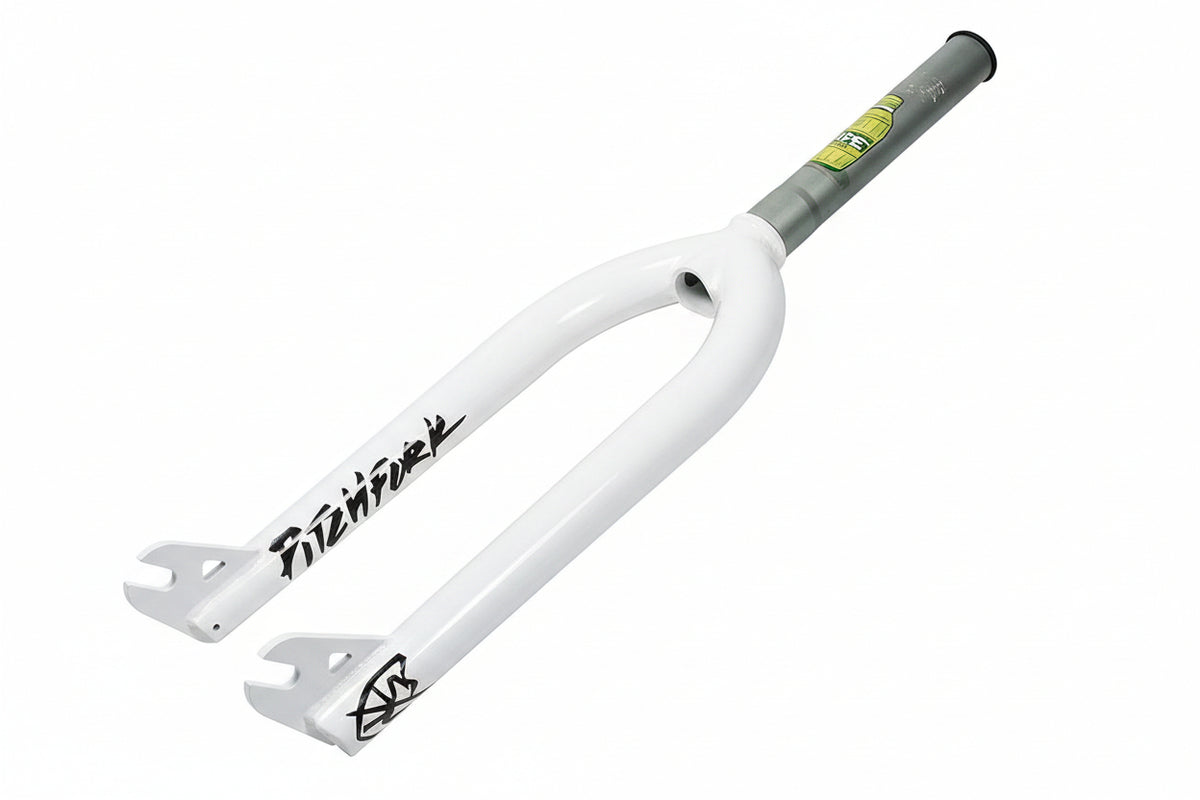

S&M WideMouth Forks (26mm & 33mm)

S&M WideMouth Forks (26mm & 33mm)

Regular price $197.99
Regular price Sale price $197.99
Sale Sold out
Shipping calculated at checkout.
Size & Color

The tried & true S&M Widemouth fork offers plenty of tire clearance in a traditional 33mm or steeper 26mm offset for a more responsive front end.  For the 26mm, less fork offset creates a shorter overall wheelbase for more responsive handling of your entire bike. Nose wheelies, pivots & a balance point that’s easier to reach. Believe & achieve.



LEGS Double Butted, Tapered, 4130 Cr-Mo

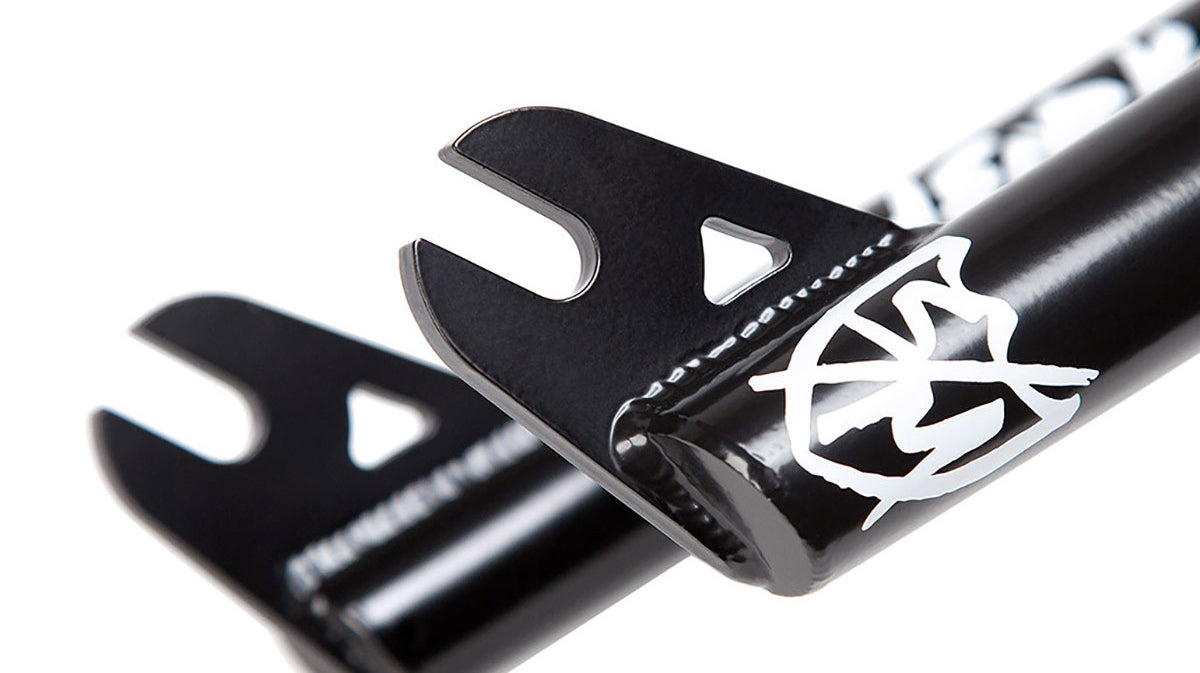

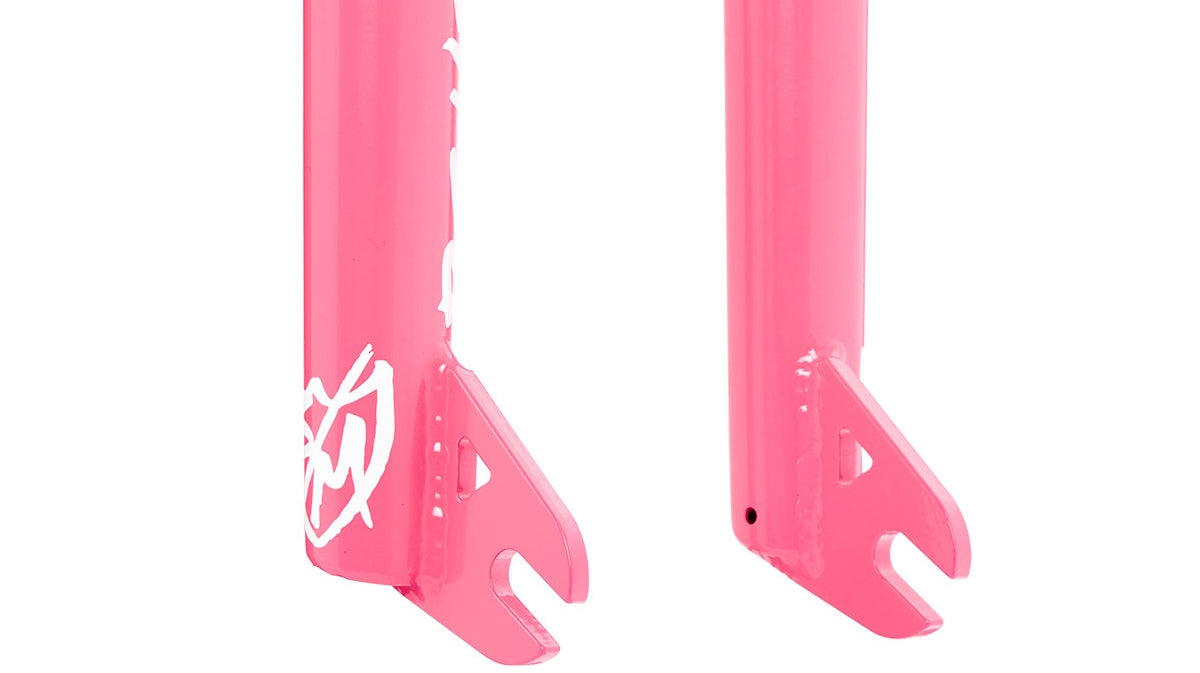

DROPOUTS Laser Cut 3/8″ Slot

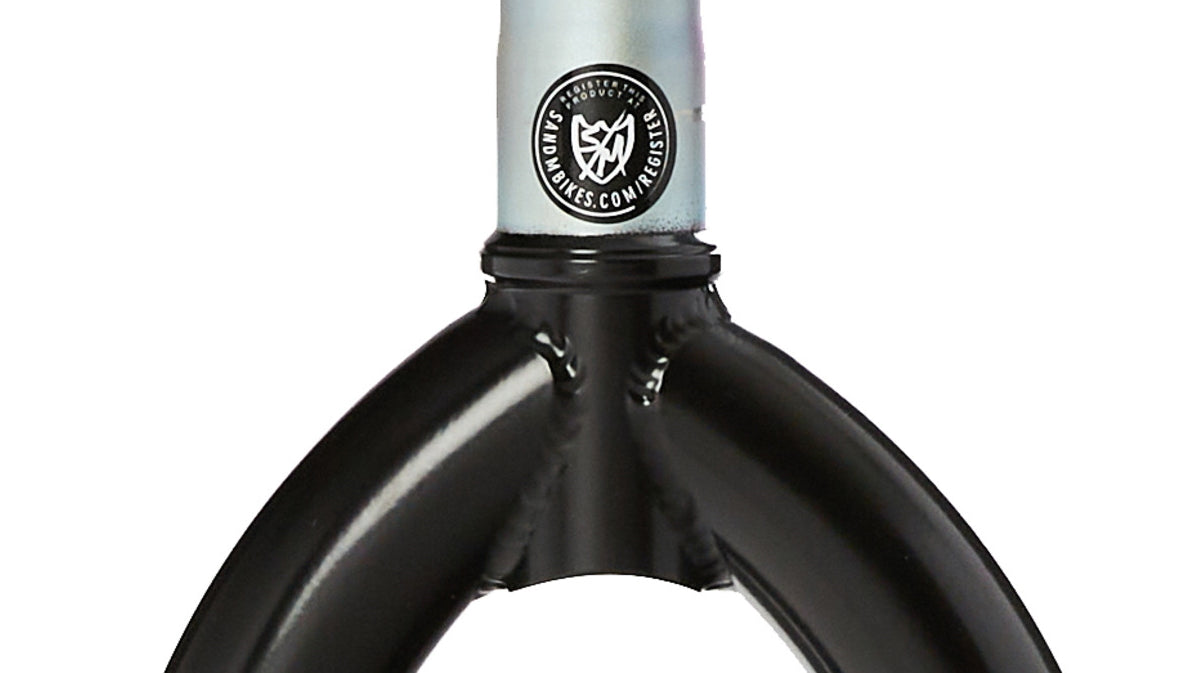

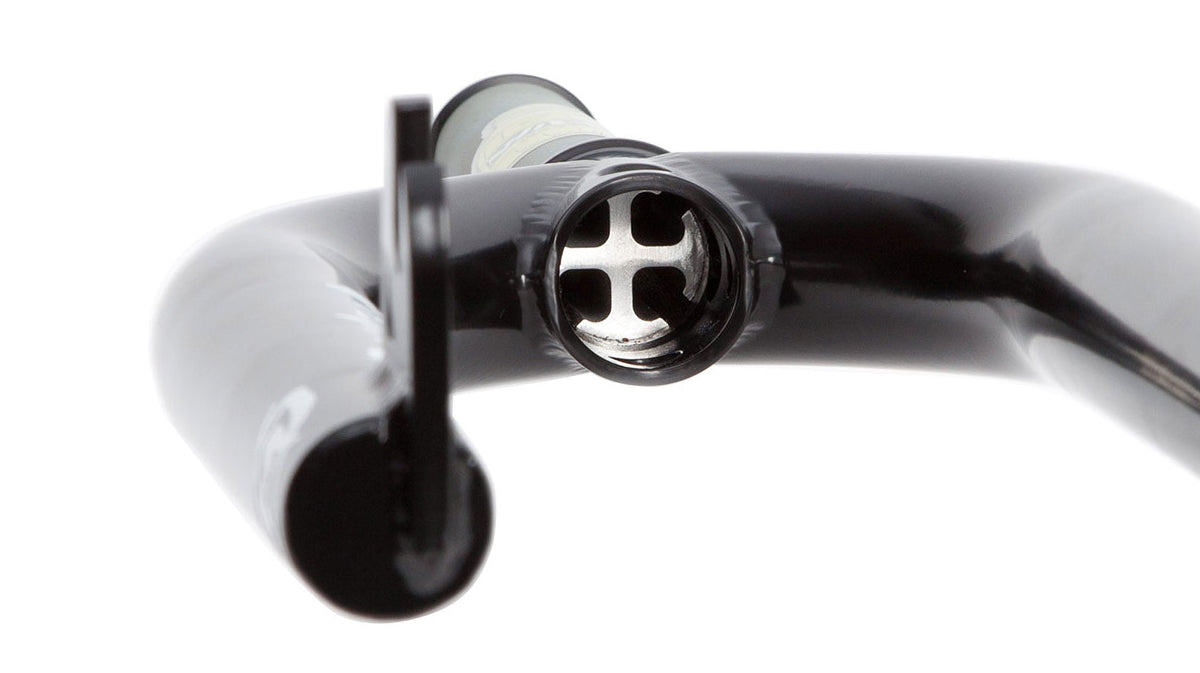

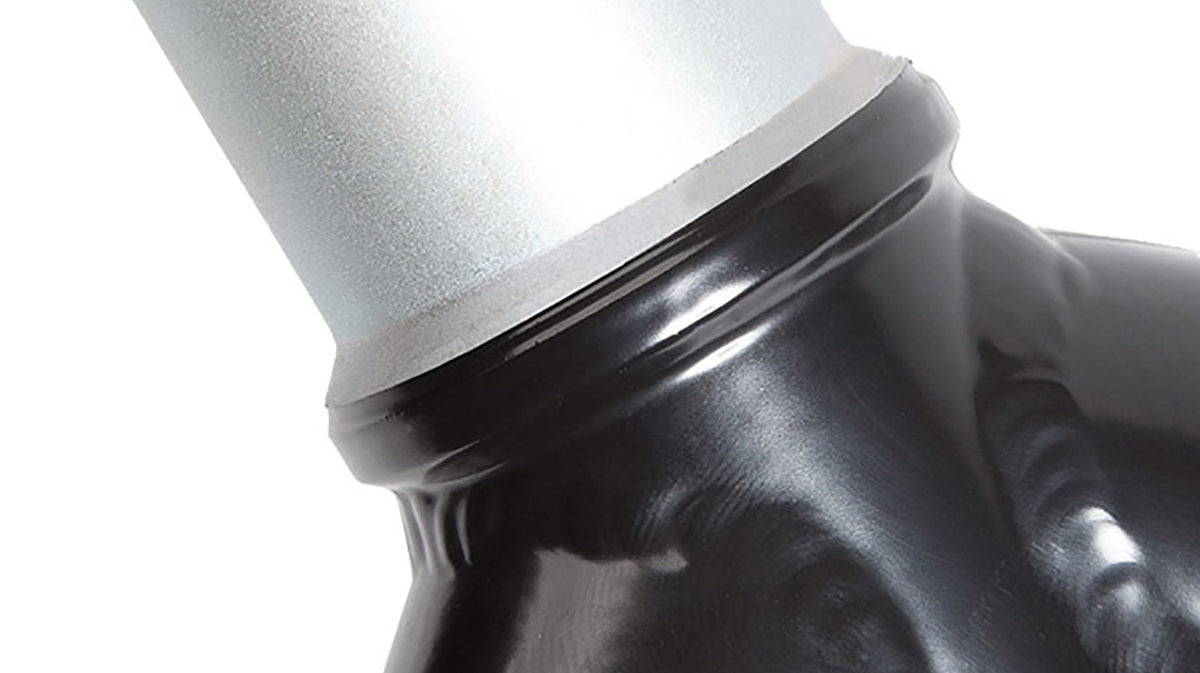

STEERER TUBE Integrated Bearing Race. 1 Piece CNC-Machined 4130 Cr-Mo, Extruded 6061 Steerer Tube Insert
STEERER TUBE LENGTH 173mm

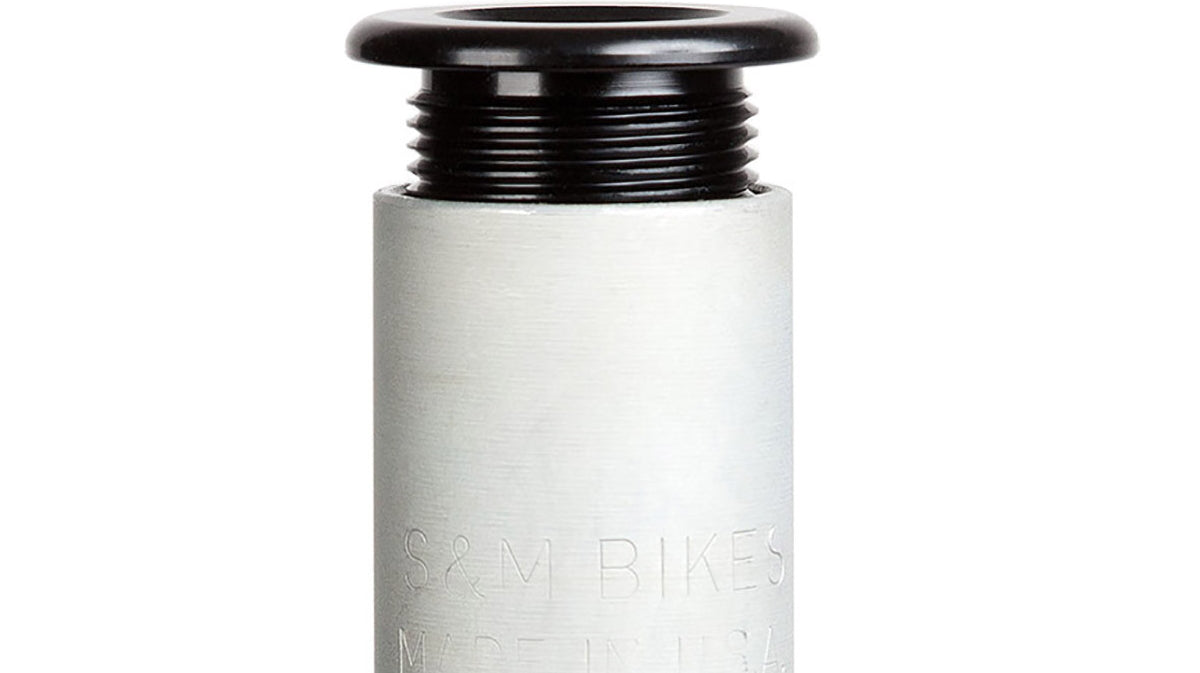

COMPRESSION M24 X 1.5 Thread – 6mm Allen Slot
AXLE TO CROWN HEIGHT 20″ – 320mm
22″ – 345.9mm
OFFSET 26mm
WEIGHT 1.99 lb (.90 kg) 20″
2.35 lb (1.06 kg) 22″
HEAT TREAT 4Q Baked Post-Weld
TIRE CLEARANCE MAX CLEARANCE 2.45″


LEGS Double Butted, Tapered, 4130 Cr-Mo
DROPOUTS Laser Cut 3/8" Slot
STEERER TUBE 1 Piece CNC-Machined 4130 Cr-Mo, Extruded 6061 Steerer Tube Insert
STEERER TUBE LENGTH 173mm
COMPRESSION M24 X 1.5 Thread - 6mm Allen Slot
AXLE TO CROWN HEIGHT 320mm
OFFSET 33mm
WEIGHT 1.99lb (.90 kg)
HEAT TREAT 4Q Baked Post-Weld
