S&M ATF XL Frame
S&M ATF XL Frame
S&M ATF XL Frame
S&M ATF XL Frame
S&M ATF XL Frame
S&M ATF XL Frame

S&M ATF XL Frame

Regular price
$515.99
Regular price
Sale price
$515.99
Unit price
per
Availability
Sold out
Shipping calculated at checkout.

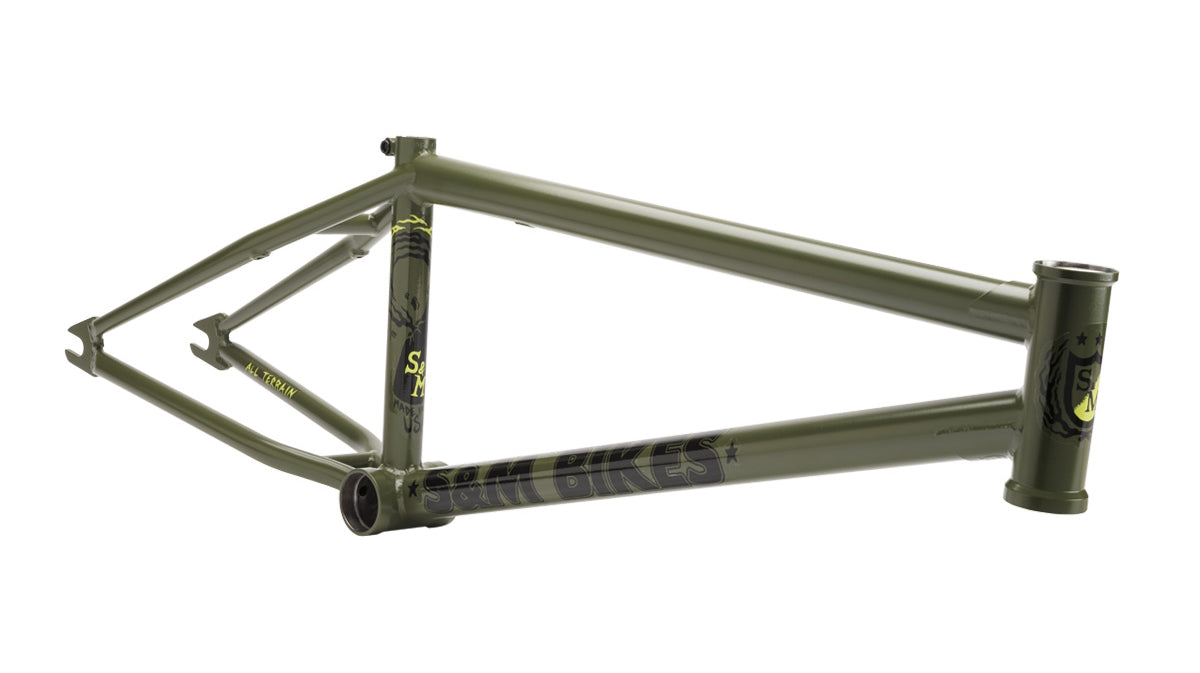

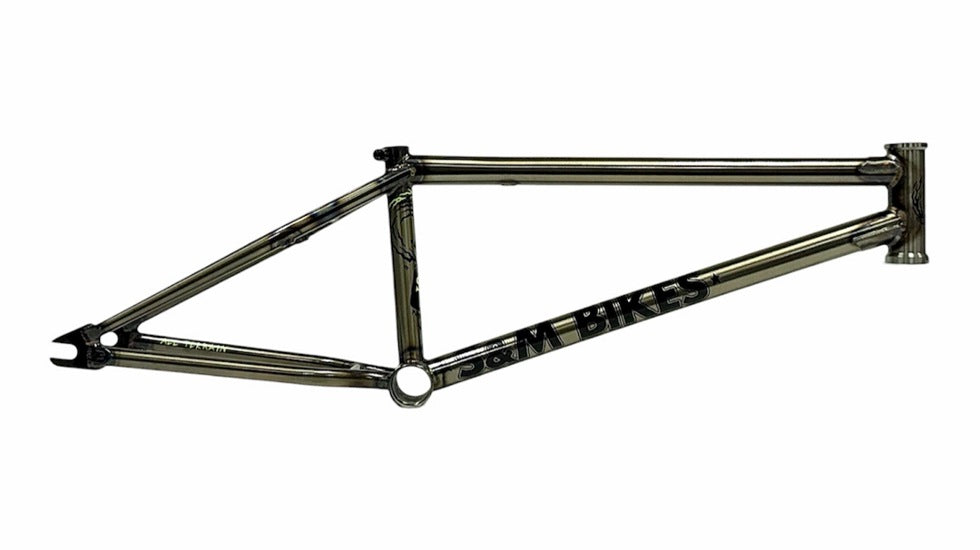

This is the frame that Aryei Levenson wanted & it does it all. The ATF XL takes the tried & true ATF frame to the next level. With a taller 5″ head tube, 9″ standover & extended top tube sizes up to 22″, it’s built for the tall team. The perfect blend of responsiveness & stability, ready for action on all terrains. Aryei signed off on the “Purple Haze” colorway, too.

TOP TUBE LENGTHS 21″, 21.25″,21.5″,22″
REAR END LENGTH 13.4″
HEAD TUBE ANGLE 75°
HEAD TUBE STYLE Integrated (45°/45°, 41.8mm)
SEAT TUBE ANGLE 71°
SEAT CLAMP Integrated
SEAT POST SIZE 1″ (25.4mm)
BB HEIGHT 11.7″
BB STYLE Mid
STANDOVER HEIGHT 9″
BRAKE MOUNTS Thread-On 990 (Mounts sold separately)
DROPOUTS 14mm Slot, 4Q-Baked
GYRO TABS None
WEIGHT 4.75 lb (2.15 kg)
TUBESET Butted True Temp
