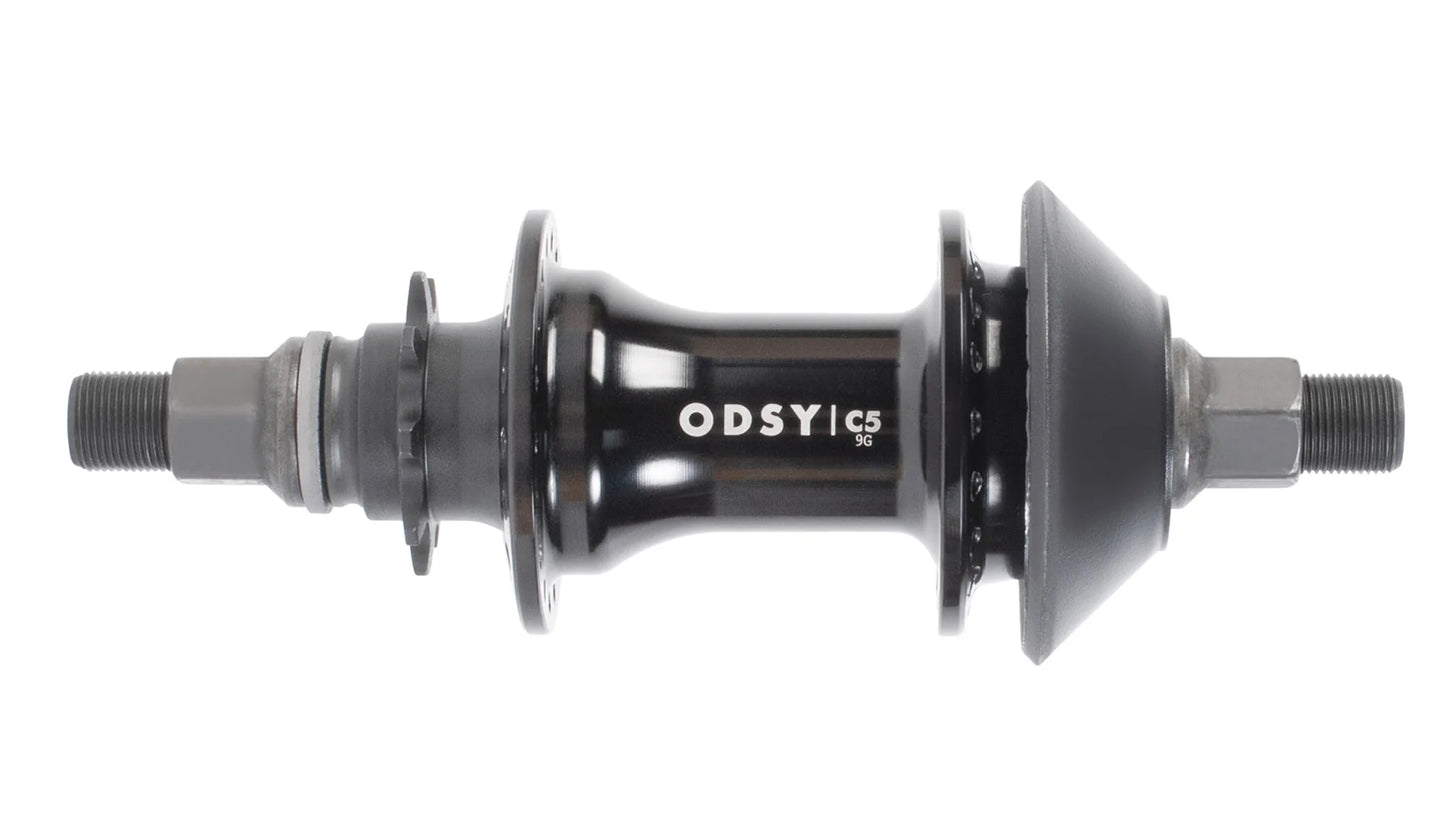

Odyssey C5 Cassette Hub

The C5 is a strong, drive switchable, affordably priced cassette hub w/ a 14mm chromoly male axle. The LHD/RHD compatible 9T driver rolls on three precision, sealed cartridge bearings. A replaceable plastic hub guard is included.

KEY FEATURES:

• 36H, 6061 T-6 aluminum hub shell
• 14mm, 4130 chromoly hollow axle, w/ 6mm hex broaching
• 9T driver w/ 3-Pawl independent spring design
• RHD/LHD switchable
• Removable plastic hub guards (compatible w/ Odyssey / G-Sport hubs)
• 6802 sealed cartridge driver bearings (3)
• 6903 sealed cartridge hub shell bearings (2)

SPECS:

Drive Side Effective Flange Diameter: 49mm
Non-Drive Side Effective Flange Diameter: 49mm
Drive Side Flange to Center Distance: 27mm
Non-Drive Side Flange to Center Distance: 30mm
