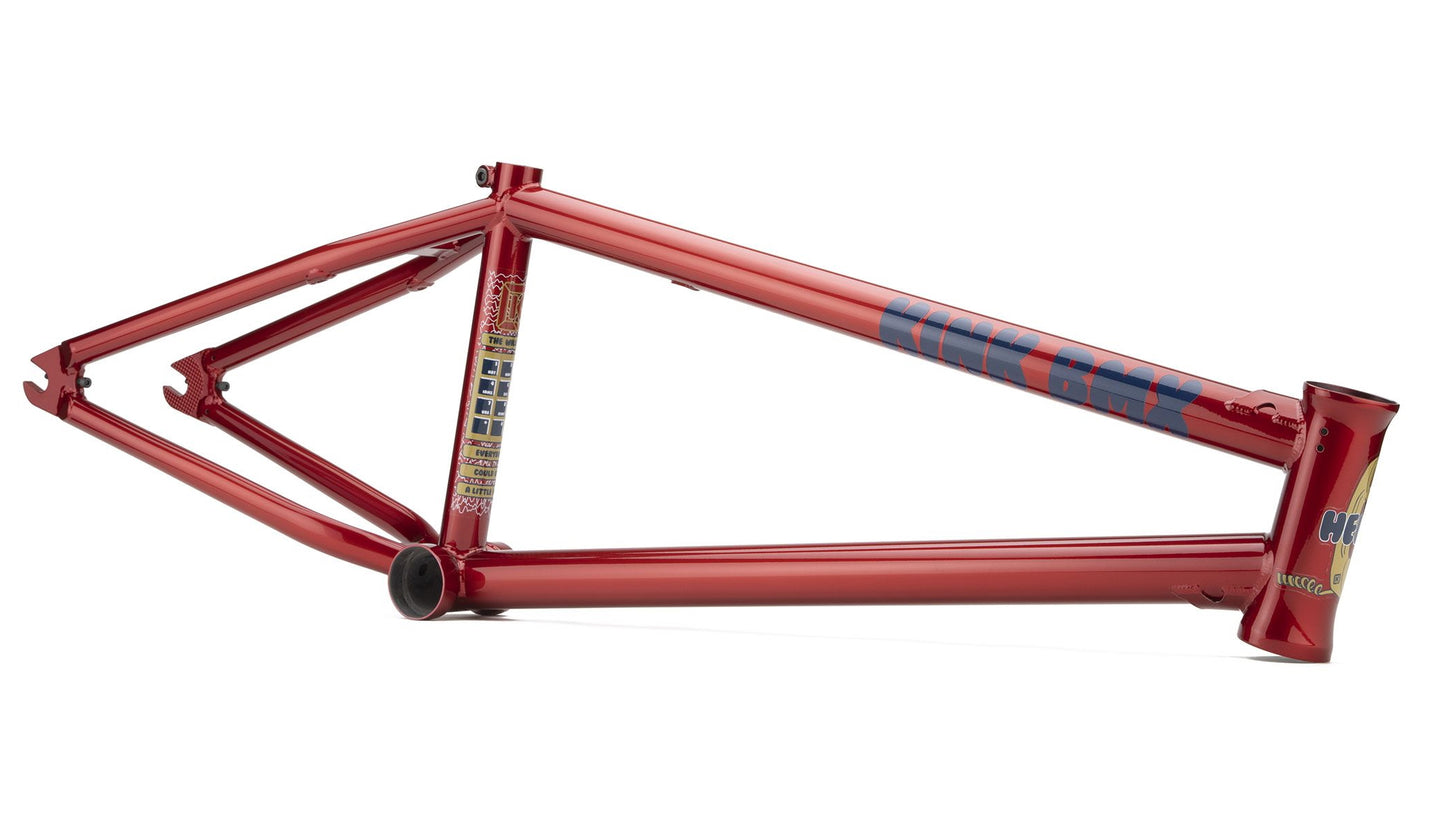

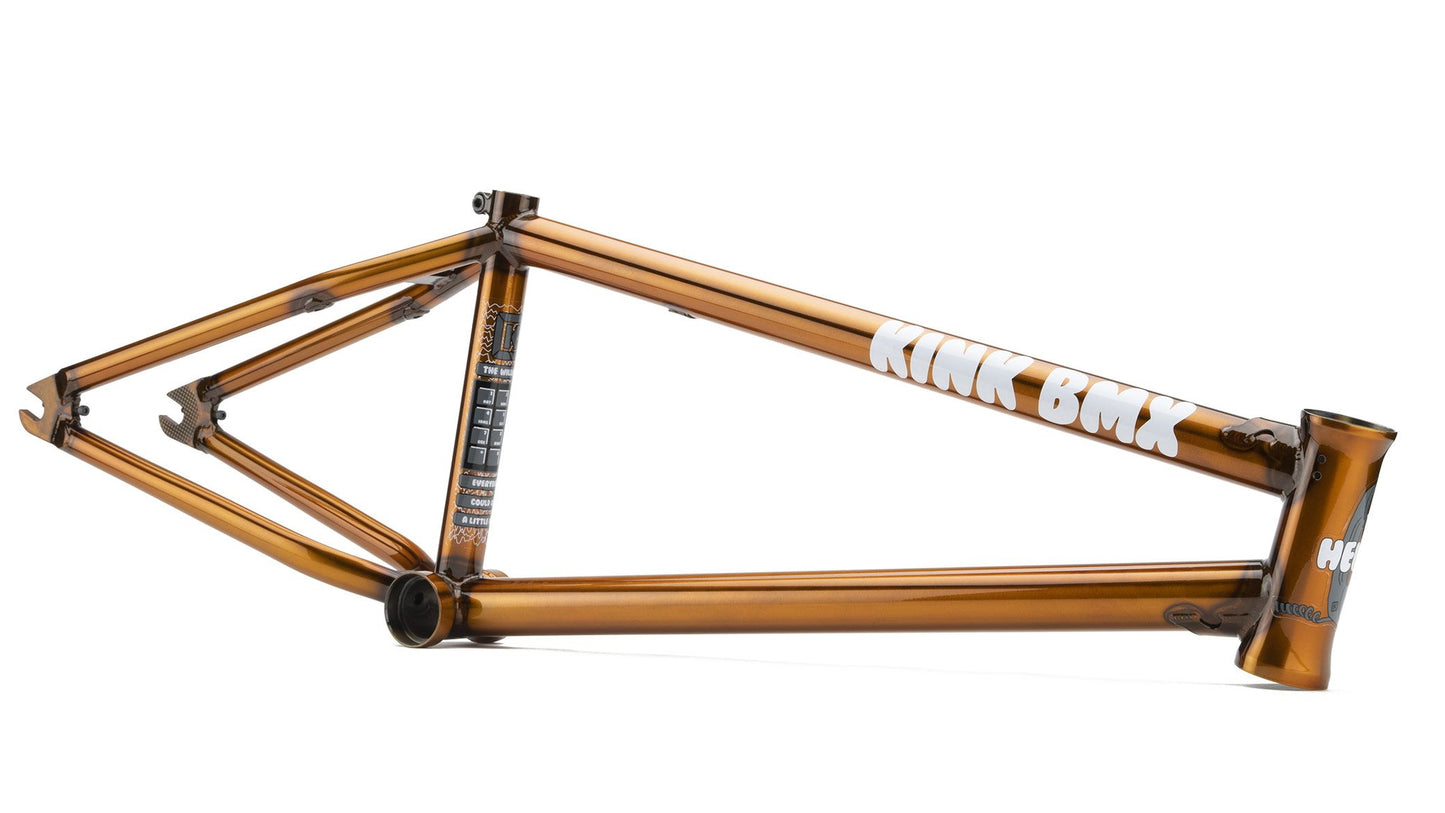

Kink Williams Frame

The Williams frame is Nathan Williams’ first signature frame from Kink & features modern street geometry while retaining a classic look. Despite the classic look though, the frame features several subtle details that should not be overlooked. The steeper 75.5-degree headtube is responsive, & the short 12.75” chain stay length makes the frame nimble w/out compromising on tire clearance; fitting up to 2.5” tires. The double butted top tube & downtube w/ gussets on both, ensure plenty of strength in the front end while the chain stay & seat stay bridge designs allow for generous tire clearance while adding as much stiffness as possible. Nathan’s frame of course comes standard w/ integrated seat post clamp, integrated chain tensioners, & removable brake mounts. Additional details like the custom seat stay bridge badge inlay & interior dropout knurling round out both the good looks & serious functionality of the Williams frame.

Top Tube Sizes: 20.5”, 20.75”, 21”, 21.25”

Chain Stay Length: 12.75” Slammed

Bottom Bracket Height: 11.7”

Stand Over Height: 9”

Head Tube Angle: 75.5°

Seattube Angle: 71°

Material: 100% Seamless Sanko 4130 Chromoly Tubing

Headtube: Integrated Campy Spec

Dropouts: Investment Cast w/ Integrated Chain Tensioners

Bottom Bracket: Internally & Externally Machined Mid Size BB

Braking: Removable Through-Bolt Brake Mount System

Toptube & Downtube Gussets

Integrated Seat Post Clamp

Oval Chainstays For Tire Clearance Up To 2.5”

CNC’d Seatstay Bridge w/ Kink Badge Inlay

Anti-Slip Interior Dropout Knurling
Weight: 4lb 15oz (20.5")
