Fit Shiv V3 Forks (25mm & 33mm)
Fit Shiv V3 Forks (25mm & 33mm)
Fit Shiv V3 Forks (25mm & 33mm)
Fit Shiv V3 Forks (25mm & 33mm)

Fit Shiv V3 Forks (25mm & 33mm)

Regular price
$118.99
Regular price
Sale price
$118.99
Unit price
per
Availability
Sold out
Shipping calculated at checkout.

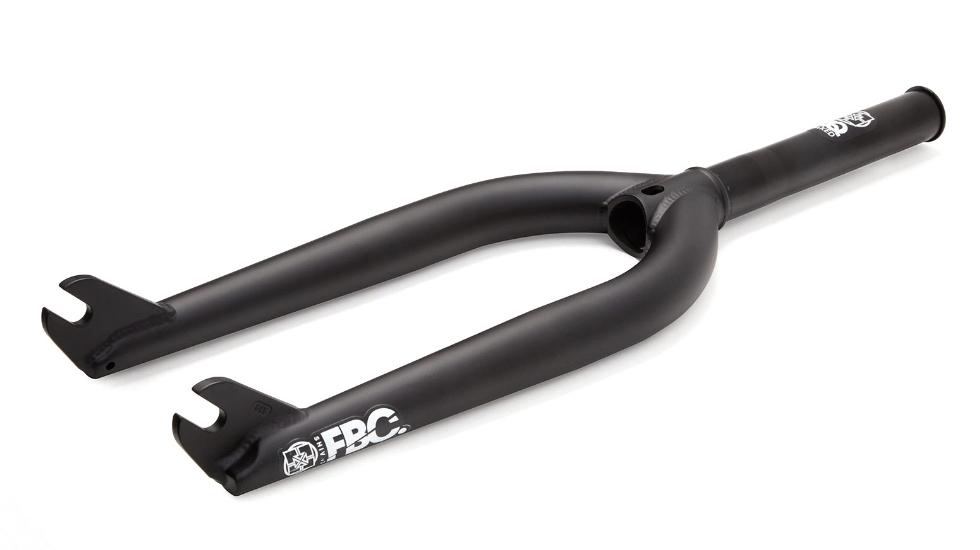

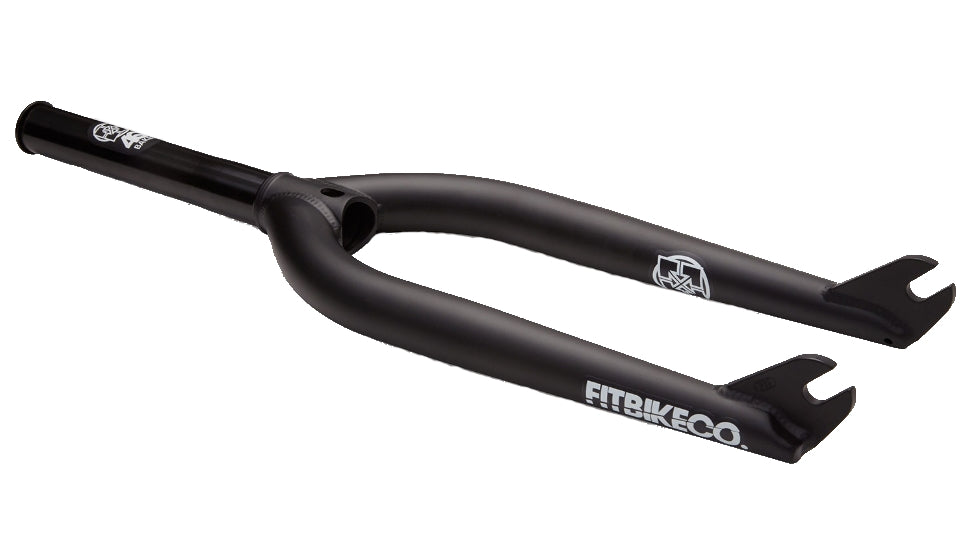

Our goal was to design & produce an extremely strong fork w/ plenty of tire clearance. After 2 years of R&D & a lot of investment in tooling, the Shiv V.3 is available w/ a quick 25mm & more mellow 33mm offset. Here are a few features that make these forks so strong:

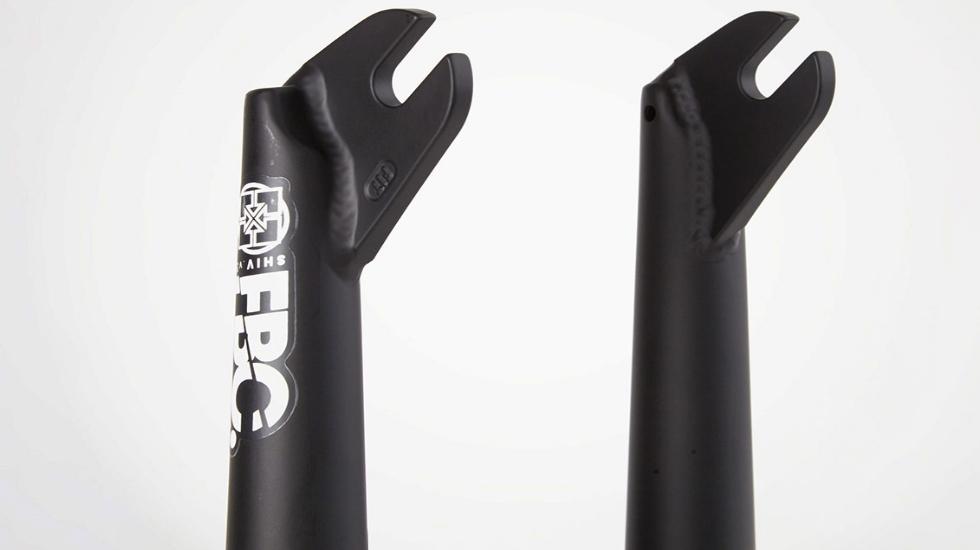

  • Using left & right specific investment cast drop-outs instead of traditional Cr-Mo plate, we’ve eliminated the weld gap on the inside of the drops, & were able to thicken up the drops toward the top making a much stronger drop-out/leg connection.
  • Seamless, swaged legs provide more strength than welded or fused caps-especially if pegs are installed. The ends of these legs are formed, not capped & welded so there is nothing to fracture.
  • A longer 166mm CNC’d steerer tube w/ increased wall thicknesses wherever possible & a 24mm x 1.5 compression cap w/ integrated race.

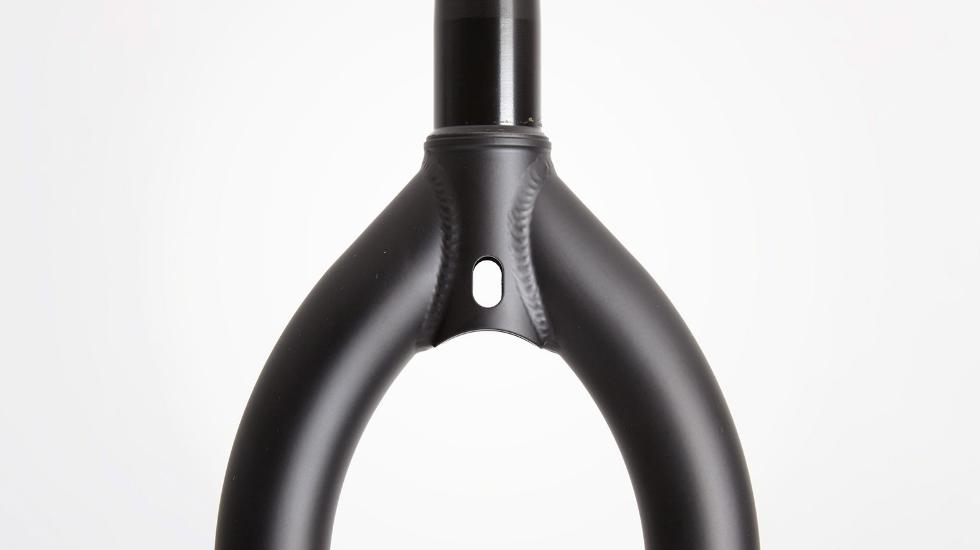

  • Tapered & butted legs provide tons of strength, crown weld surface, & peg clearance.
  • Post weld 4Q Baked heat-treatment
  • Legs: Seamless Swaged (No Welded Cap)
  • Dropouts: Investment Cast
  • Steerer Tube: 1 Piece CNC-Machined 4130 CrMo
  • Steerer Tube Length: 166mm
  • Compression: M24 X 1.5 Thread – 6mm Allen Slot
  • Axle to Crown: 320mm
  • Offset: 25mm & 33mm
  • Weight: 2.25 lb (1.02 kg)
  • Heat Treat: 4Q Baked Post-Weld
