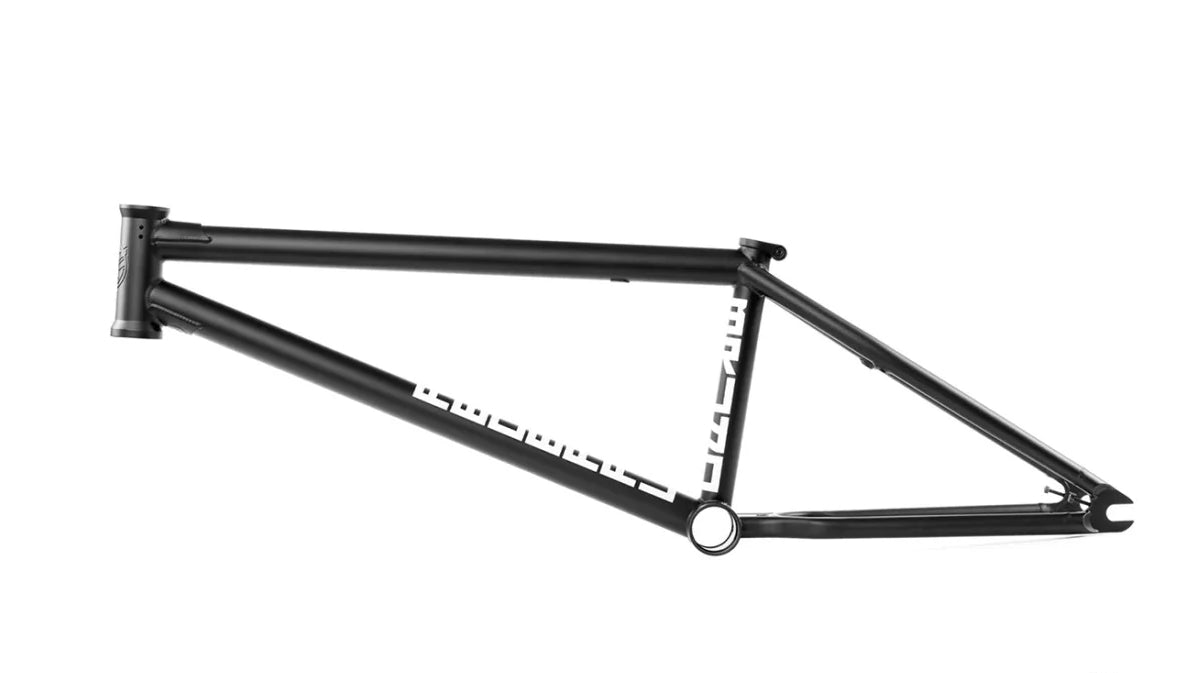

Federal Bruno Frame V2

The Bruno 3 frame features an engraved Federal logo on the head tube, brand new invest cast dropouts & updated geometry. The new dropouts have been completely redesigned using a smaller overall shape that runs in line w/ the chain stay tubing. The head tube is now at 75.5° for a more responsive feel & also comes w/ removable brake mounts on the seat stays.

• 4130 Chromoly tubing
• Redesigned investment cast dropouts w/ integrated chain tensioners
• Investment cast seat stay & chain stay bridges
• All new graphics designed by Rich Forne
• Embossed down tube gusset featuring the F logo
• Integrated investment cast seat clamp
• Tapered chain stays
• Mid BB
• Removable Brake mounts

• Top Tube: 20.85" or 21"
• Head Tube: 75.5°
• Seat Tube: 71°
• Chain Stay: 13.6" (slammed)
• BB: 11.8"
• Stand over: 9"
• Weight: 5.55lbs
