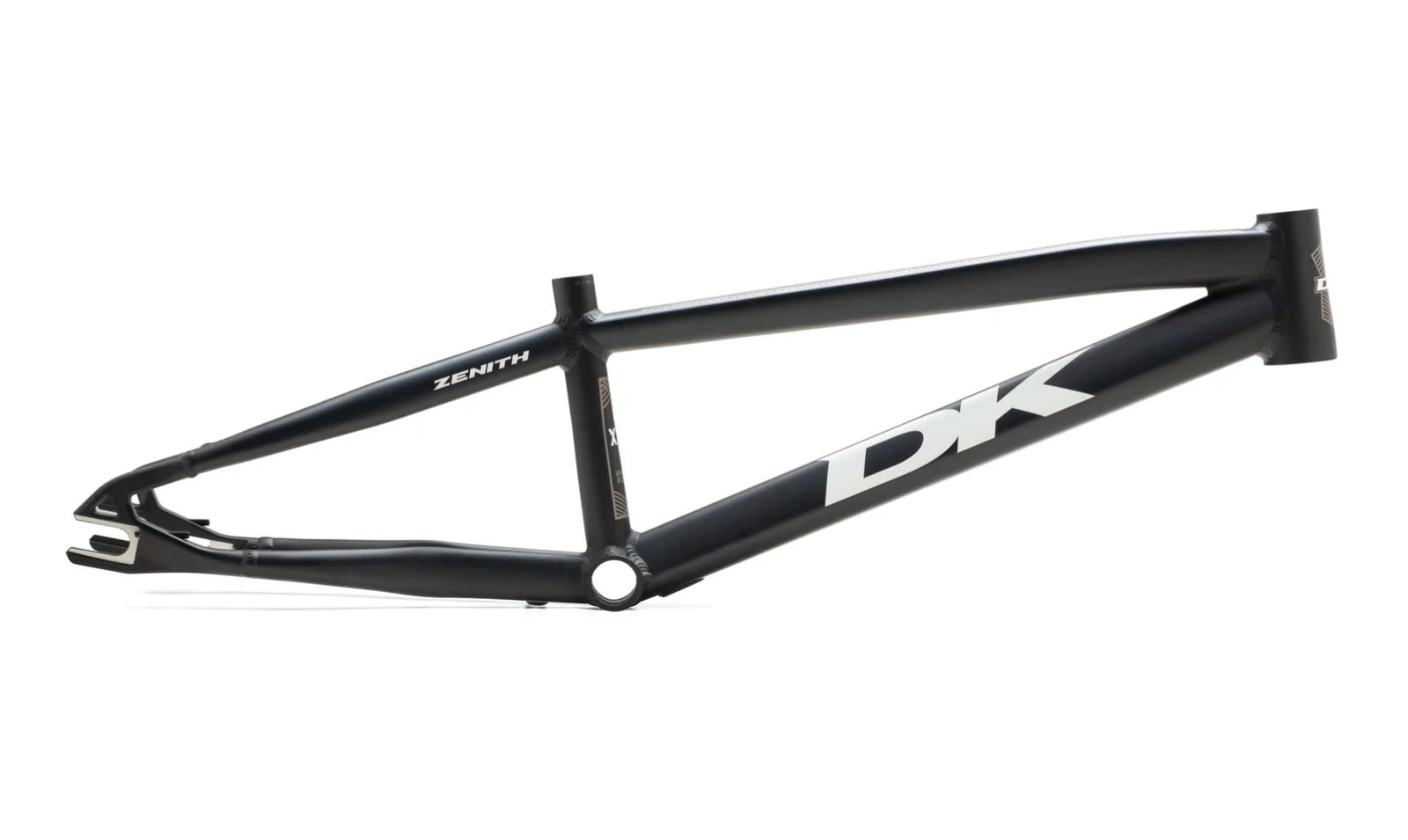

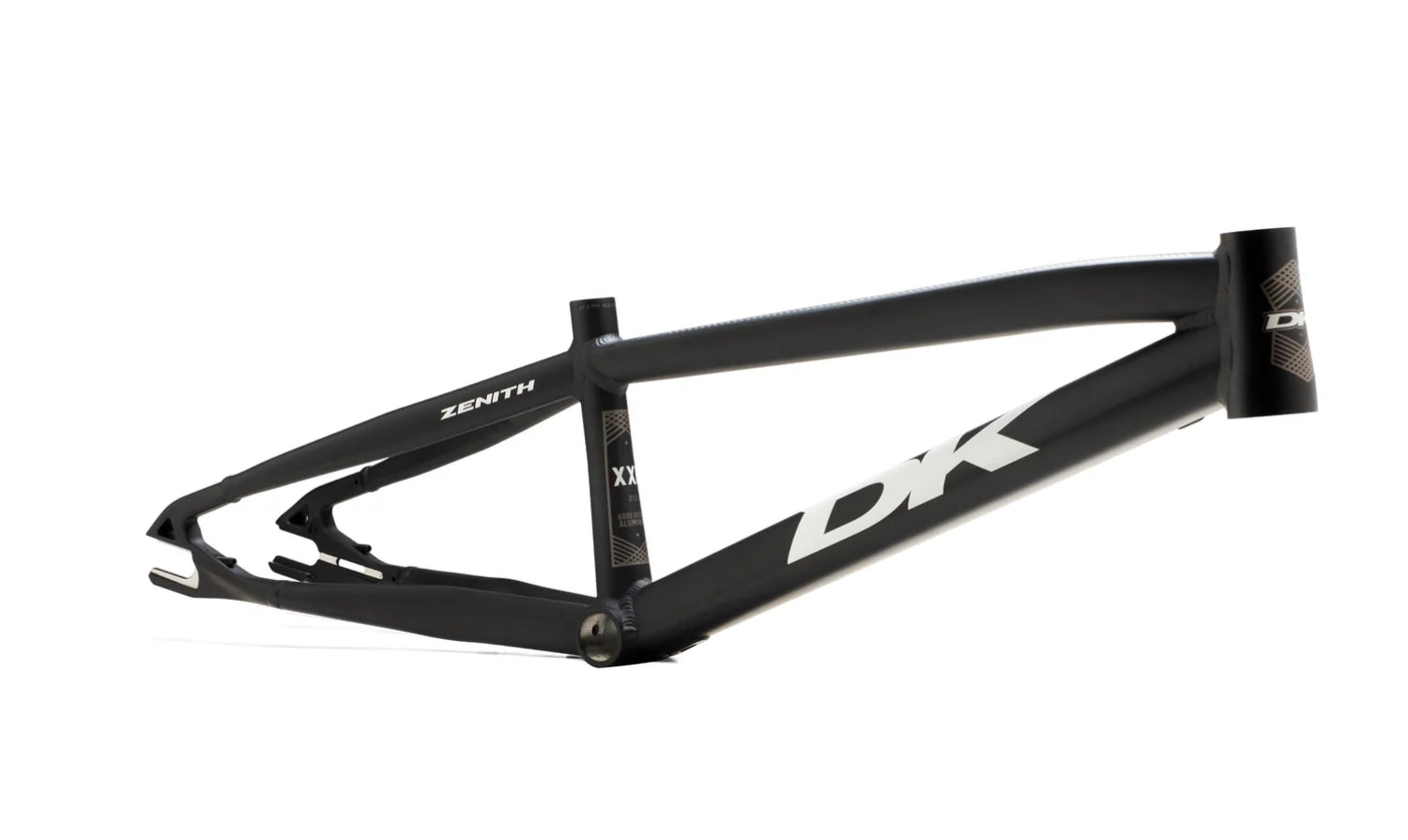

DK Zenith Race Frame

Introducing the all-new DK Zenith Disc race frame. Built on the same proven low-profile geometry as the DK Professional frame for max speed and stability. Made to accelerate. Engineered for winning.

100% custom design constructed from 6000 series hydroformed aluminum. Patent pending sliding flat mount disc brake system delivers superior braking in all conditions. Clean, compact, responsive, & stiff. Wide stance rear end is designed for max power.

Note: The DK Zenith Disc frame is compatible w/ flat mount disc brakes only. Flat mount is more compact & lighter than post mount. With flat mount, the rear caliper affixed w/ two bolts running through a flattened frame surface & then threading directly into the caliper (or an adapter affixed to the caliper).

Specs:

• Pro 20.5”, XL 21”, XX 21.5”, XXX 22”, XXXX 22.5” & Cruiser 21.75” sizes
• Built with lightweight hydroformed 6000 series aluminum tubing
• Horizontal sliding axle / brake system provides 30mm of adjustment
• Features a tapered 1-1/8”-1.5” head tube (headset included w/ an extra lower race to work w/ standard 1-1/8” forks)
• Trapezoidal seat mast for increased stiffness at bottom bracket
• Wide stance rear stay design adds stiffness
• Threaded Euro bottom bracket shell
• Internal brake cable routing
• 20mm / 15mm / 10mm dropouts (all axle hardware included) w/ integrated chain tensioners
• Seat post diameter: 27.2mm
