Regular price
$328.99
Regular price
Sale price
$328.99
Unit price
per
Availability
Sold out
Shipping calculated at checkout.

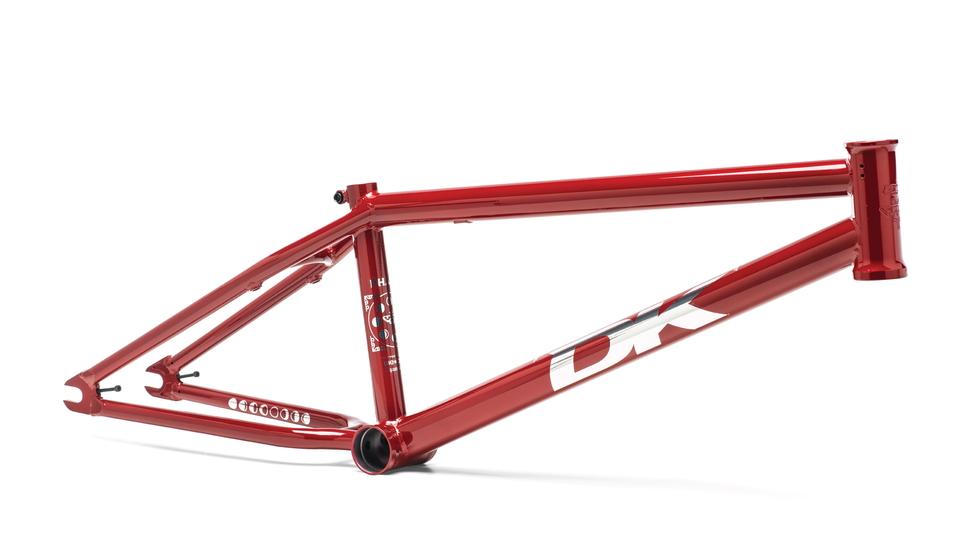

It’s a great looking frame, but you can’t see some of the key features from the outside. It all starts w/ 100% high-quality Japanese butted, tapered, & heat-treated 4130 chromoly tubing. A unique offset inner “Eclipse” down tube wall that’s thin up top & thick on the bottom saves weight while maintaining strength. With the Phase, we created the perfect balance of responsiveness, stability & bike control, combined w/ tried & true materials in one do-it-all frame.

DETAILS:

  • Built w/ 100% High-Quality Japanese Butted & tapered Heat-Treated 4130 Chromoly Tubing
  • “Eclipse” down tube offset wall thickness for extra strength & weight savings
  • Integrated chain tensioners
  • Low profile integrated seat post clamp (accepts a 25.4mm seat post)
  • Butted top tube & seat tube

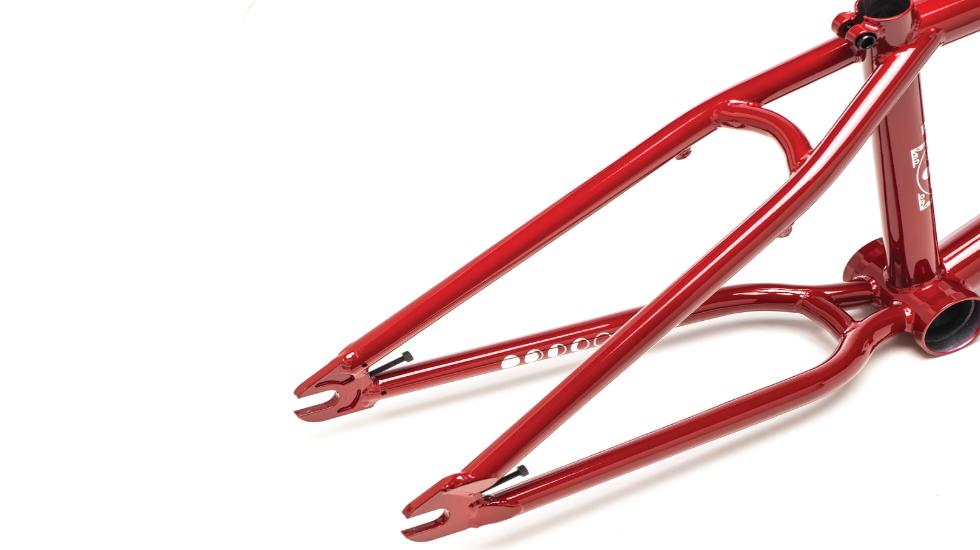

  • Rainbow stay bridges
  • Tapered seat & chain stay tubes

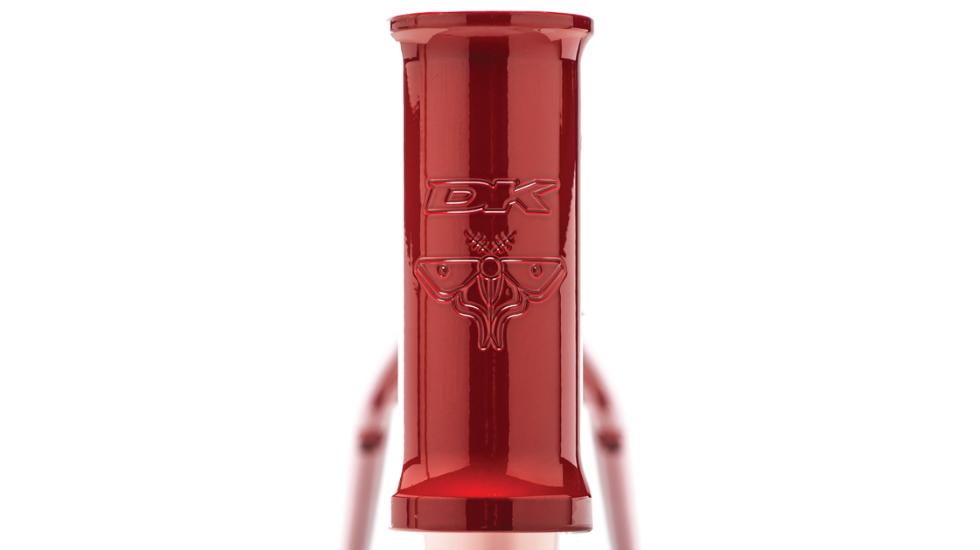

  • Integrated head tube w/ CNC machined head tube artwork
  • Removable seat stay brake mounts
  • Removable cable guide & gyro tabs
  • Mid bottom bracket shell
  • Velcro brake cable strap included

SPECS:

Head tube angle: 75.2º
Seat tube angle: 71º
Chain stay length: 13.25” (slammed)
Bottom bracket height: +1.25” above axle line
Weight: 4 lbs 8 oz (+1.6 oz for all hardware)
