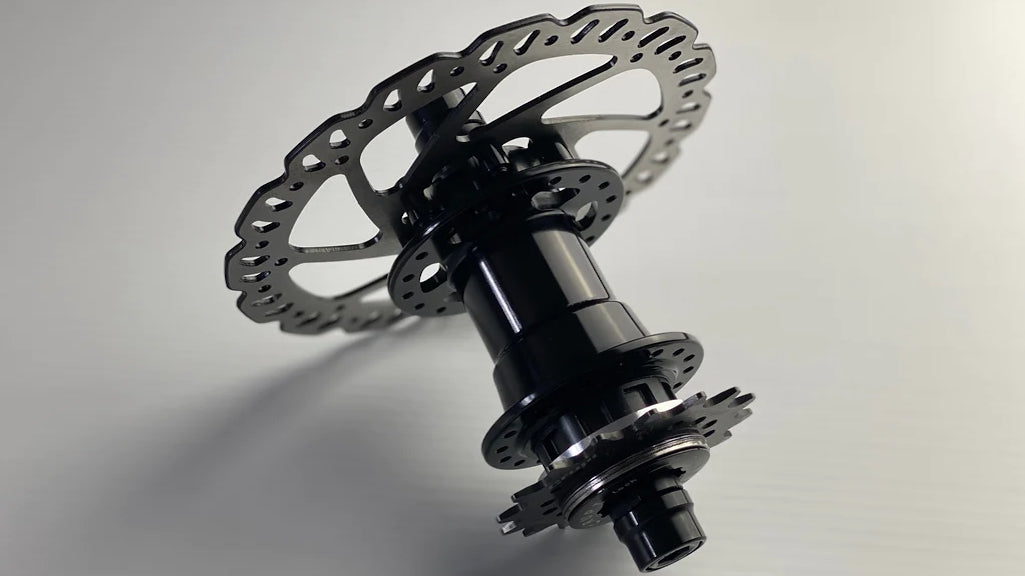

Crupi Quad Pro Disc Rear Race Hub (36H)

Crupi Quad Pro Disc Rear Race Hub (36H)

Regular price $251.99
Regular price Sale price $251.99
Sale Sold out
Shipping calculated at checkout.
Color

Crupi BMX

The fastest Spring & Pawl Engagement System in BMX!  The Quad Hub features 150 ratchet teeth which engage every 2.4 degrees so what you get it is a super fast engaging hub.


We still provide 4 cog spacers which allow you to position the cog where it provides the best possible chain alignment.  Hub Set comes w/ a 16t cog but is designed to work w/ any Shimano compatible cog & any Shimano type tool will remove the cog.


  • Fixed independent leaf spring/pawl system acting simultaneously when engaged
  • Less resistance & less wear = a smoother rotating hub
  • Requires a 6-Bolt Rotor
  • For use on newer Crupi frames, we recommend our adapter & a 140mm rotor
  • Axles are 10mm axles but a 20mil front option also now available
  • 36H Disc rear weighs: 14.95oz
Wheel Build Specs:
Flange Diameter for all 36H front hubs: 40mm

Drive Side Flage Diameter for all 28H & 36H Disc hubs: 51mm
Drive Side Center to Flange for all 28H & 36H Disc hubs: 25.5mm

Non-Drive Side Flange Diameter for all 28H & 36H Disc hubs: 58mm

Non-Drive Side Center to Flange for all 28H & 36H Disc hubs: 23mm
