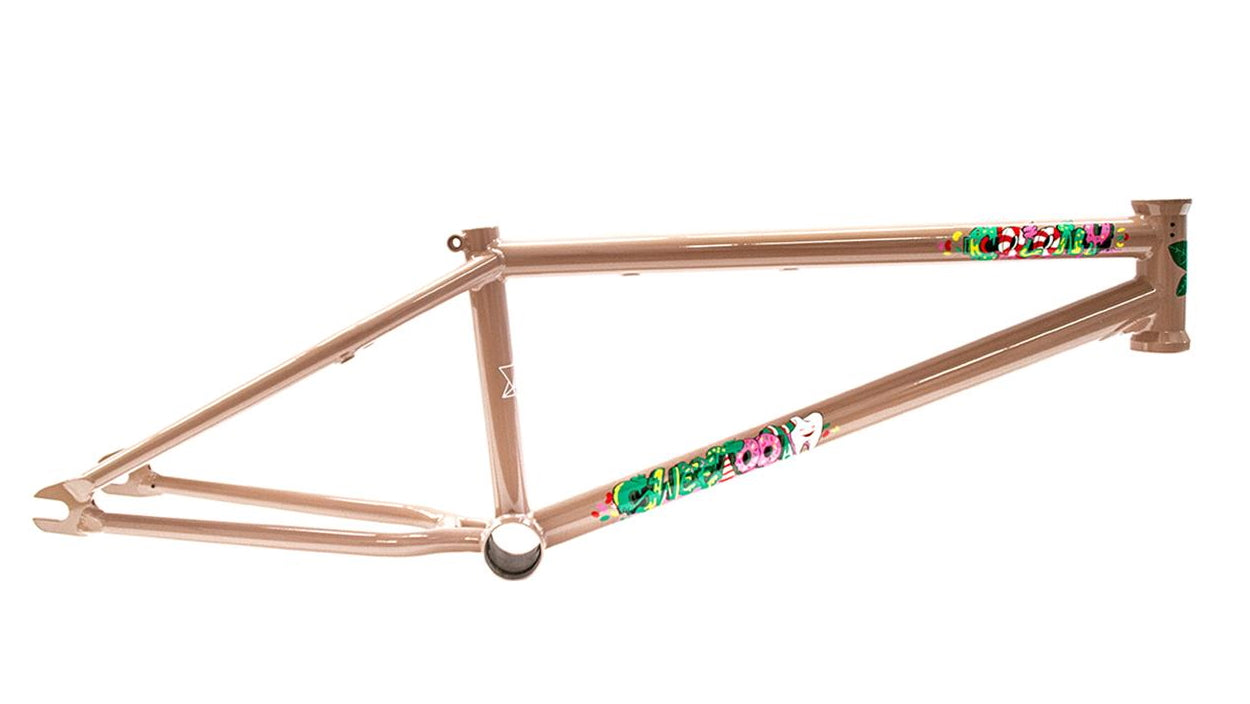

Colony Sweet Tooth Frame

The Colony Sweet Tooth Frame is Alex Hiam's signature model. Made from 100% 4130 chromoly tubing it is constructed w/ a heat-treated integrated headtube that is drilled for gyro tabs. A tapered toptube & downtube w/ an external gusset provides enhanced strength & tapered chainstays & seatstays provide room for tires up to 2.4". To round things out, removable brake mounts & invest cast brake cable tabs makes for a clean setup. Call the Dentist because the Colony Sweet Tooth Frame is BMX Candy!

2023 Sweet Tooth Frame Specs:
Headset Type: Integrated (Campy)
Gyro Tabs: Drilled
Brake Mounts: Removable (Hardware Included)
Bottom Bracket Type: Mid (Heat-Treated)
Seatpost Size: 25.4mm
Seat Clamp: Integrated
Dropouts: 6mm Thick w/ Built in Chain Tensioners
Color: ED Black, Salmon & Latte
Weight: 5.2 lbs (20.4")

Geometry:
Toptube Lengths: 18.9", 19.8", 20.4", 20.7", 21"
Chainstay Length: 13.25"
Headtube Angle: 75.2°
Seattube Angle: 71°
Standover Height: 7.5" (18.9", 19.8", 20.4")
Standover Height: 8.5" (20.7", 21")
Bottom Bracket Height: 11.5"

2024 Sweet Tooth Frame Specs:

Headset Type: Integrated (Campy)
Gyro Tabs: Drilled
Brake Mounts: Removable (Hardware Included)
Bottom Bracket Type: Mid (Heat-Treated)
Seatpost Size: 25.4mm
Seat Clamp: Integrated
Dropouts: 6mm Thick w/ Built in Chain Tensioners
Colors: ED Black, Salmon & Latte
Weight: 5.2 lbs (20.4")

Geometry:
Toptube Lengths: 18.9", 19.8", 20.4", 20.7", 21"
Chainstay Length: 13.25"
Headtube Angle: 75.2°
Seattube Angle: 71°
Standover Height: 7.5" (18.9", 19.8", 20.4")
Standover Height: 8.5" (20.7", 21")
Bottom Bracket Height: 11.5"

2024 Sweet Tooth Frame Specs:

• Progressive park & street geometry
• Full CrMo Frame
• Heat treated integrated head tube, longer length at 118mm
• Heat treated MID BB
• Heat treated 6mm thick dropouts w/ built in chain tensioners
• Tapered down tube, top tube & rear stays
• External Gusset on tapered DT tubing
• Wider rear end for fatter 2.4" tires
• Built-in seat clamp w/ replaceable nut & bolt
• Removable brake mounts
• Removable brake hardware included
• Unique & exclusive invest cast removable Colony brake cable tabs

• Sizes for 20" wheels – 19.2", 20.4", 20.7" & 21" TT
• 20" wheels – 13.25” rear, 75.2º HA, 71º ST
• 11.5" BB Height
• Stand over height for 19.2" & 20.4" is 7.5" (center of BB shell to center of TT)
• Stand over height for 20.7" & 21" is 8.5" (center of BB shell to center of TT)
• Weight: 20.7" version 4.7 lbs (2,141 grams)
• The Sweet Tooth BMX frame comes in ED Black or Army Green
