Cinema FX3 Cassette Hub
Cinema FX3 Cassette Hub
Cinema FX3 Cassette Hub
Cinema FX3 Cassette Hub
Cinema FX3 Cassette Hub

Cinema FX3 Cassette Hub

Regular price
$186.99
Regular price
Sale price
$186.99
Unit price
per
Availability
Sold out
Shipping calculated at checkout.

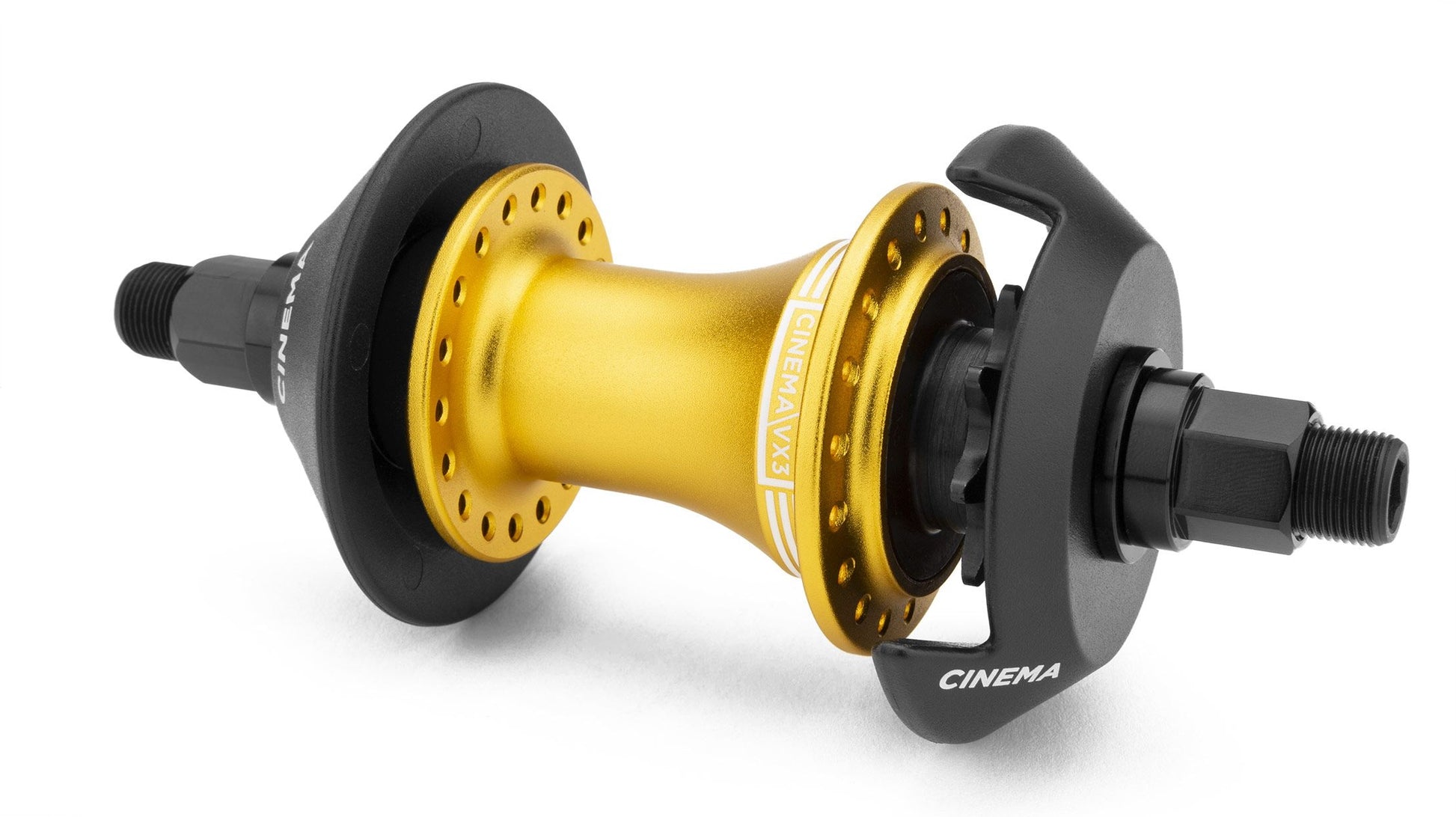

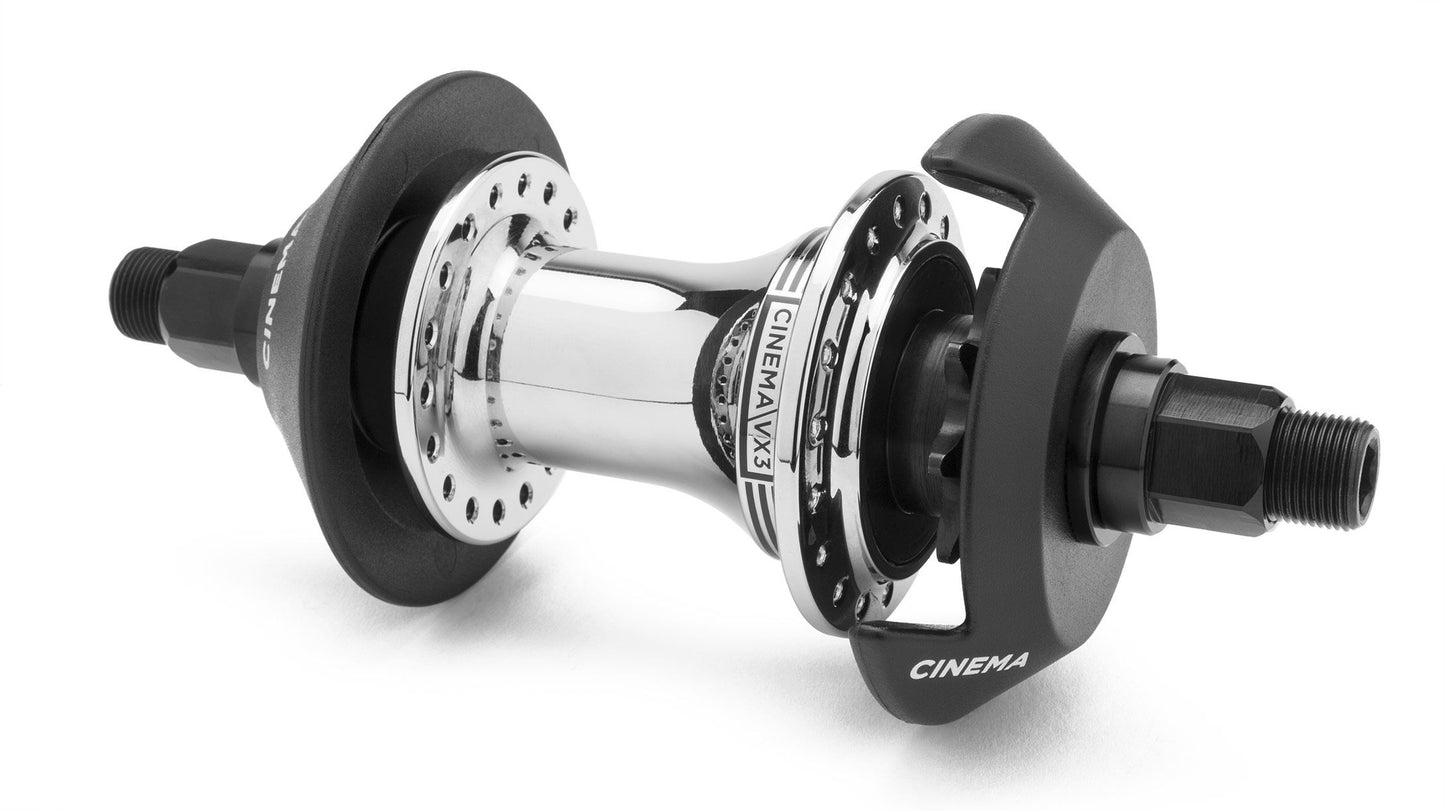

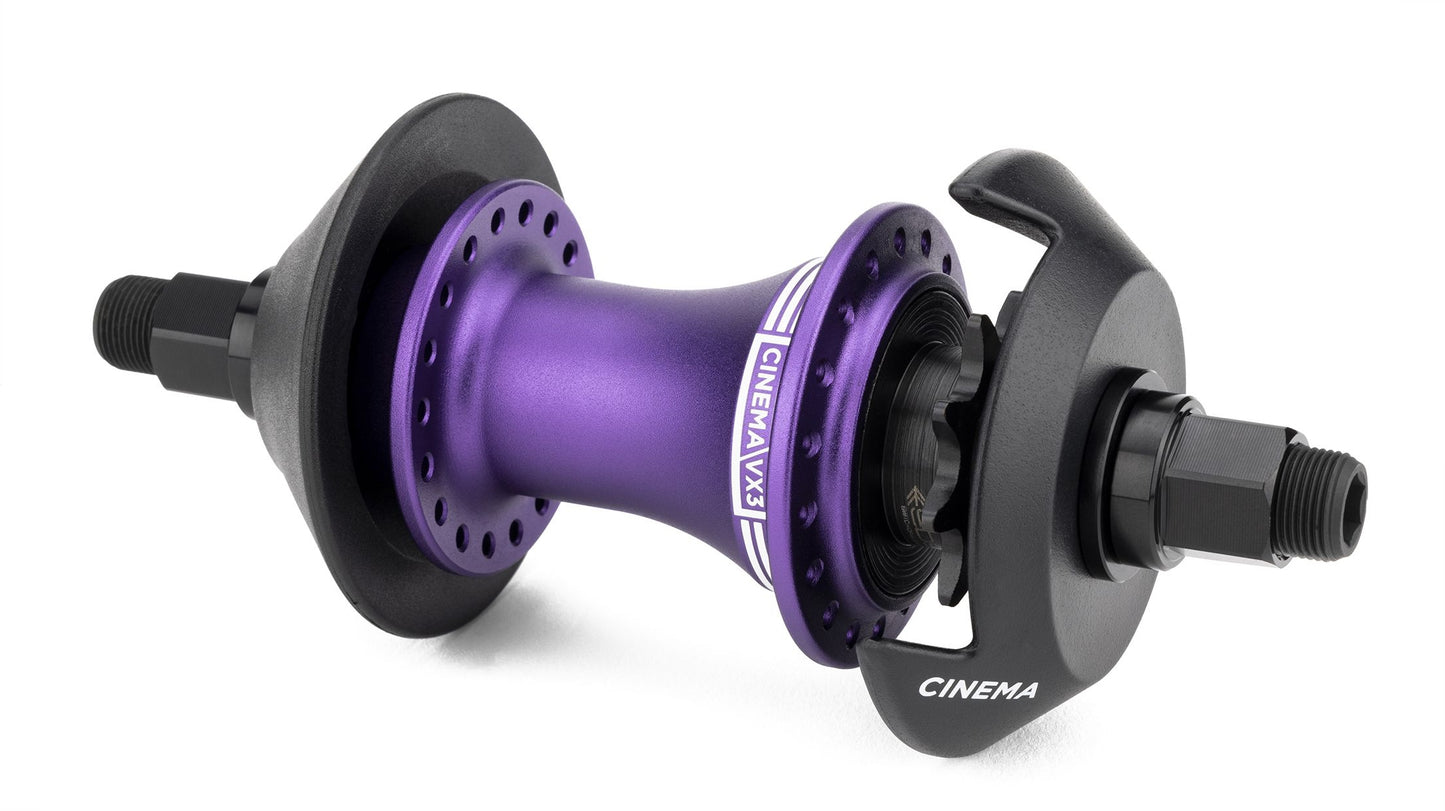

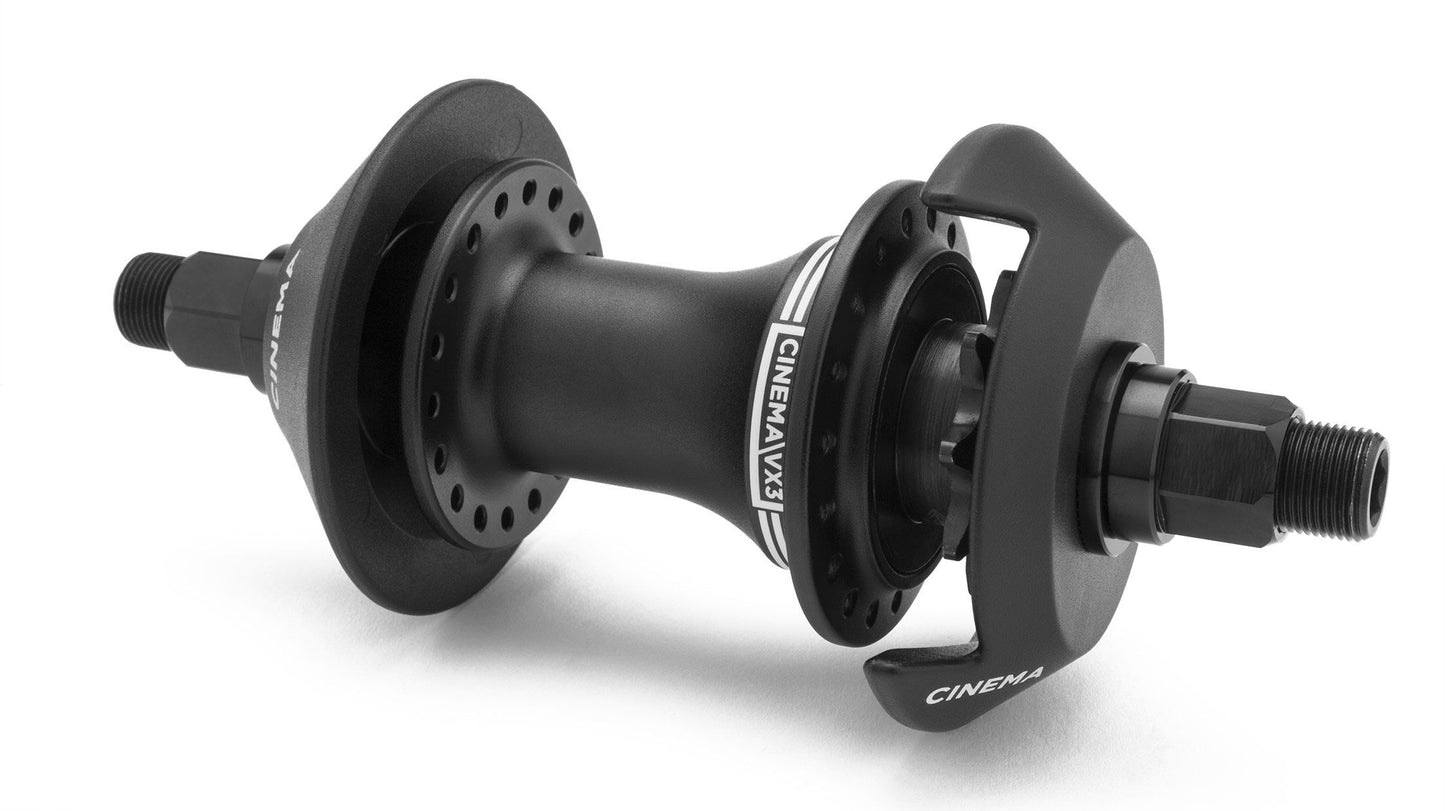

Refined and re-refined, the VX3 cassette hub packs in all the features & durability you want & need in a hub. The design has been updated to a more resilient floating axle system, w/ the tried & true 14mm heat-treated chromoly male axle. The SDS driver system also allows you to easily switch between left or right-side drive w/out any additional parts. Ceramic bushings found inside the 9t driver unit eliminate any blown-out bearings, & spin directly on the axle creating room for increased axle thickness. Finally, the included nylon CR & DR hub guards keep your hub protected from grinds straight out of the box.

Axle: 14mm Hollow Heat-Treated Chromoly

Axle Nuts: 17mm 7075-T6 Aluminum

Shell: 6061-T6 Aluminum 36-hole

Hub Bearings: 2 x 6902

Driver Bearings: Ceramic Bushings

Driver: 9-Tooth

Drive Side: RHD / LHD Switchable (SDS)

Cones: Threaded Drive Side and Non-Drive Side

Guards: Includes CR and DR Nylon Guards

Weight: 19.6oz (w/ Guards Installed)

Drive Side Flange Diameter: 51.5mm

Non-Drive Side Flange Diameter: 45.0mm

Drive Side Flange Offset: 28.3mm

Non-Drive Side Flange Offset: 30.0mm

Spoke Hole Diameter: 2.5mm
