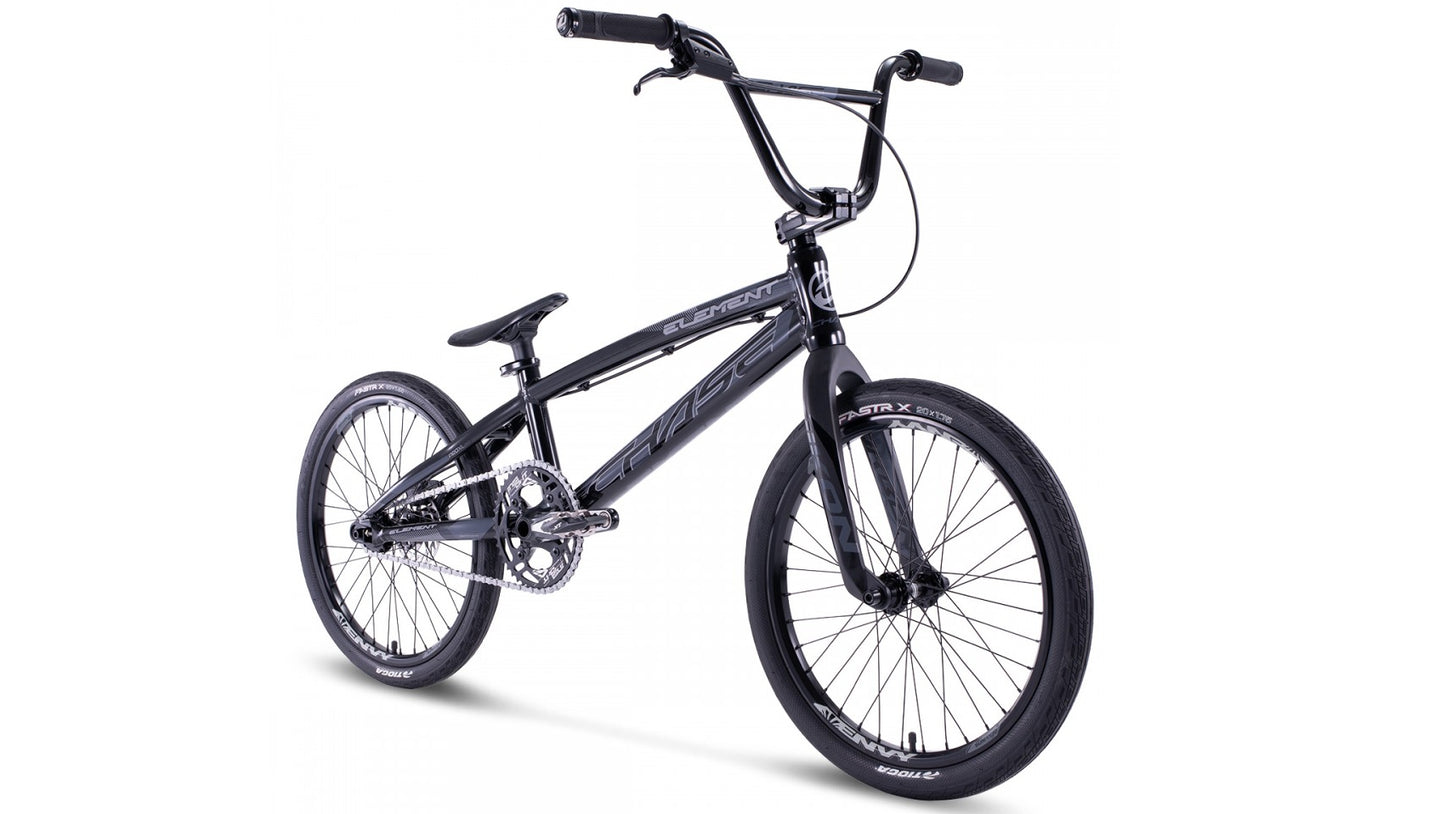

Chase Element Pro XL
Chase Element Pro XL
Couldn't load pickup availability
Chase has been pushing the envelope for the past 11 years w/ our complete bikes & the newest edition of the Element, Element 10 is the best we have ever offered.
FRAME: Chase Element Pro XL 21" Top tube, Hydroformed 7005 T6 Alloy, Aero system shaping, Enclosed rear dropouts, Integrated Chain tensioner system
FORK: Ikon Carbon Pro 1-1/8", 20mm Drop Out, Alloy Steer Tube, Drop Out & Top Cap
STEM: Chase Element 31.8mm 53mm
HANDLEBAR: Chase Element 31.8mm 8.0"

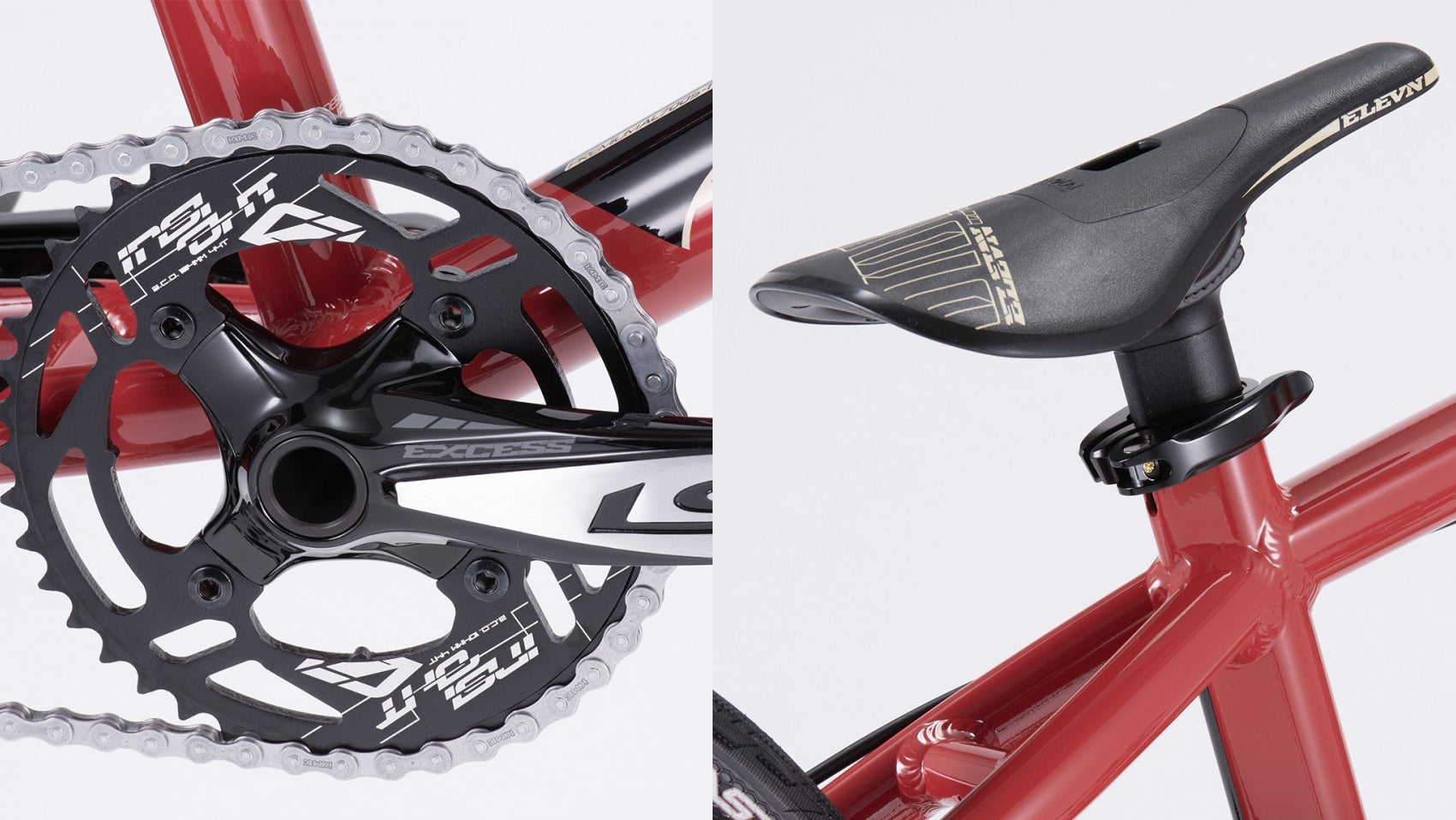

CHAINRING: Insight 44T 4 Bolts BCD 104mm
CRANKSET : Excess LSP 180mm, Press Fit BB86
HUBS: Chase Element 3/8" Bolts, 36H Front, Chase Element 3/8" Cassette ISO Hub 36H, 3 Pawls Triple Angle Engagement 24T Ratchets Rear, 16T cog
RIMS: Sun Ringlé Envy Rims 20×1.75", 36H, No Brake Surface
TIRES: Tioga Fastr X 20×1.75" Front & 20×1.60" Rear
BRAKES: Tektro Hydraulic lever and caliper (Resin Pads), 120mm disc rotor, Lock Disc Adaptor
SEAT: Chase Aero seat post & clamp / ELEVN PC Pivotal seat
PEDALS: Nylon Platform - Pictured w/ Shimano XT Pedals but this was for photo purposes only.
RECOMMENDED SIZE: 5' 4.6" - 5' 10.1" / 1m64 - 1m78
WEIGHT: 20.85 LBS / 9.45Kg with pedals
SPECIFICATIONS :
| FRAME | Chase Element Pro XL 21" Top Tube, 7005 T6 Alloy, Integrated 1-1/8″ Head Tube, Enclosed rear dropouts and Chain tensioner system |
| FORK | Ikon Pro 20" Carbon, Alloy 1-1/8" Steer Tube, 20mm Drop Out with Adaptor 3/8" Axle, Alloy Top Cap |
| HEADSET | Integrated IS 42/42 1-1/8", Sealed Bearing |
| HANDLEBAR | Chase Element 31.8mm, 8.0" Rise, 28.5" Wide, 10° Back Sweep, 2° Up Sweep |
| GRIPS | Insight C.O.G.S 145mm, Alloy Clamps Laser Etched Logo, PVC End Plug |
| STEM | Chase Element 1-1/8" Steer Tube, Diameter 31.8mmmm, Length 53mm 6061 T6 Alloy CNC Laser Etched Logo |
| BB | Press Fit 68/73mm Cartridge Bearings |
| CHAINRING | Insight 44 Tooth 4 Bolt 104mm 1/2"x3/32" 5mm Alloy Ring |
| CRANK | Excess LSP 2 Piece Crank 180mm Alloy Arm, 4 Bolt Spider, Cr-mo Pedal Inserts, Alloy Chain Ring Bolts / Nuts |
| PEDAL | Nylon Platform Pedal 9/16" |
| CHAIN | KMC Z1 narrow 1/2"x3/32" |
| COG | 16 Tooth |
| FRONT HUB | Chase Element 3/8" Bolts, 36H, Sealed Bearing |
| REAR HUB | Chase Element Pro ISO Hub, 36H, Sealed Bearing, 3/8" Bolts, Steel Cassette Body with 3 Pawls at Triple Angle Engagement for 24T Ratchets |
| SPOKES | Front 186mm, Rear 181mm, 14 Gauge, Steel |
| NIPPLES | Brass 14Gx5/8" |
| RIMS | Sun Rims Alloy Envy Front 36H 20"x1.75" No Brake Surface Schrader Valve |
| FRONT TIRE | Tioga Fastr X 20"x1.75" 60 TPI Wire Bead |
| REAR TIRE | Tioga Fastr X 20"x1.60" 60 TPI Wire Bead |
| TUBES | 20×1.50/1.75" Schrader valve |
| BRAKES | Tioga Fastr X 20"x1.65" 60 TPI Wire Bead, Lock Disc Adaptor |
| SADDLE | Elevn PC Pivotal |
| SEAT POST | Chase Aero Pivotal 27.2x260mm Alloy |
| SEAT CLAMP | Chase Aero 27.2mm QR Alloy |
| CHAIN TENSIONER | Integrated Built-In With New Lock Disc Adaptor |

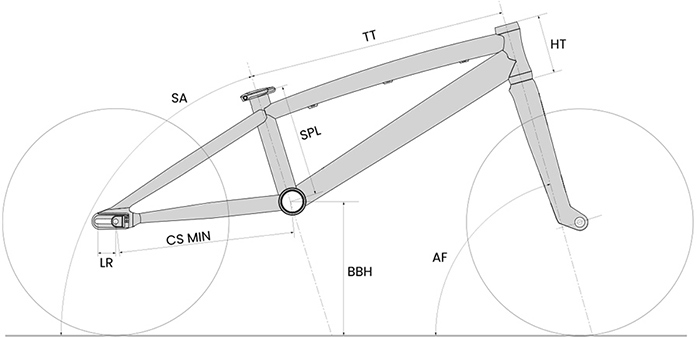

GEOMETRIES :
| FRAME SIZE | TT | CS min | LR | AF | SA | HT | SPL | BBH | WHEELS |
|---|---|---|---|---|---|---|---|---|---|
| Expert | 20" - 508 mm | 13.5" - 342.9 mm | 1.5" - 38.1 mm | 73° | 70° | 4.7" - 120 mm | 9.2" - 236 mm | 11" - 279.4 mm | 20×1-3/8" |
| Pro | 20.5" - 520.7 mm | 14.25" - 362 mm | 1.5" - 38.1 mm | 74° | 72,5° | 4.7" - 120 mm | 9.2" - 236 mm | 11.5" - 292.1 mm | 20×1.5" |
| Pro XL | 21" - 533.4 mm | 14.3" - 363.3 mm | 1.5" - 38.1 mm | 74° | 72,5° | 4.7" - 120 mm | 9.2" - 236 mm | 11.5" - 292.1 mm | 20×1.75" |
| Pro XXL | 21.5" - 546.1 mm | 14.5" - 368.3 mm | 1.5" - 38.1 mm | 74° | 72,5° | 4.7" - 120 mm | 9.2" - 236 mm | 11.5" - 292.1 mm | 20×1.75" |
| Pro XXXL | 22.0" - 558.8 mm | 14.5" - 368.3 mm | 1.5" - 38.1 mm | 74° | 72,5° | 4.7" - 120 mm | 9.2" - 236 mm | 11.5" - 292.1 mm | 20×1.75" |
| Pro Cruiser | 21.5" - 546.1 mm | 15.25" - 387.3 mm | 1.5" - 38.1 mm | 73° | 69,5° | 4.7" - 120 mm | 9.8" - 250 mm | 12" - 304.8 mm | 24×1.75" |
| Pro Cruiser + | 22.0" - 558.8 mm | 15.25" - 387.3 mm | 1.5" - 38.1 mm | 73° | 69,5° | 4.7" - 120 mm | 9.8" - 250 mm | 12" - 304.8 mm | 24×1.75" |
