Level7BMX

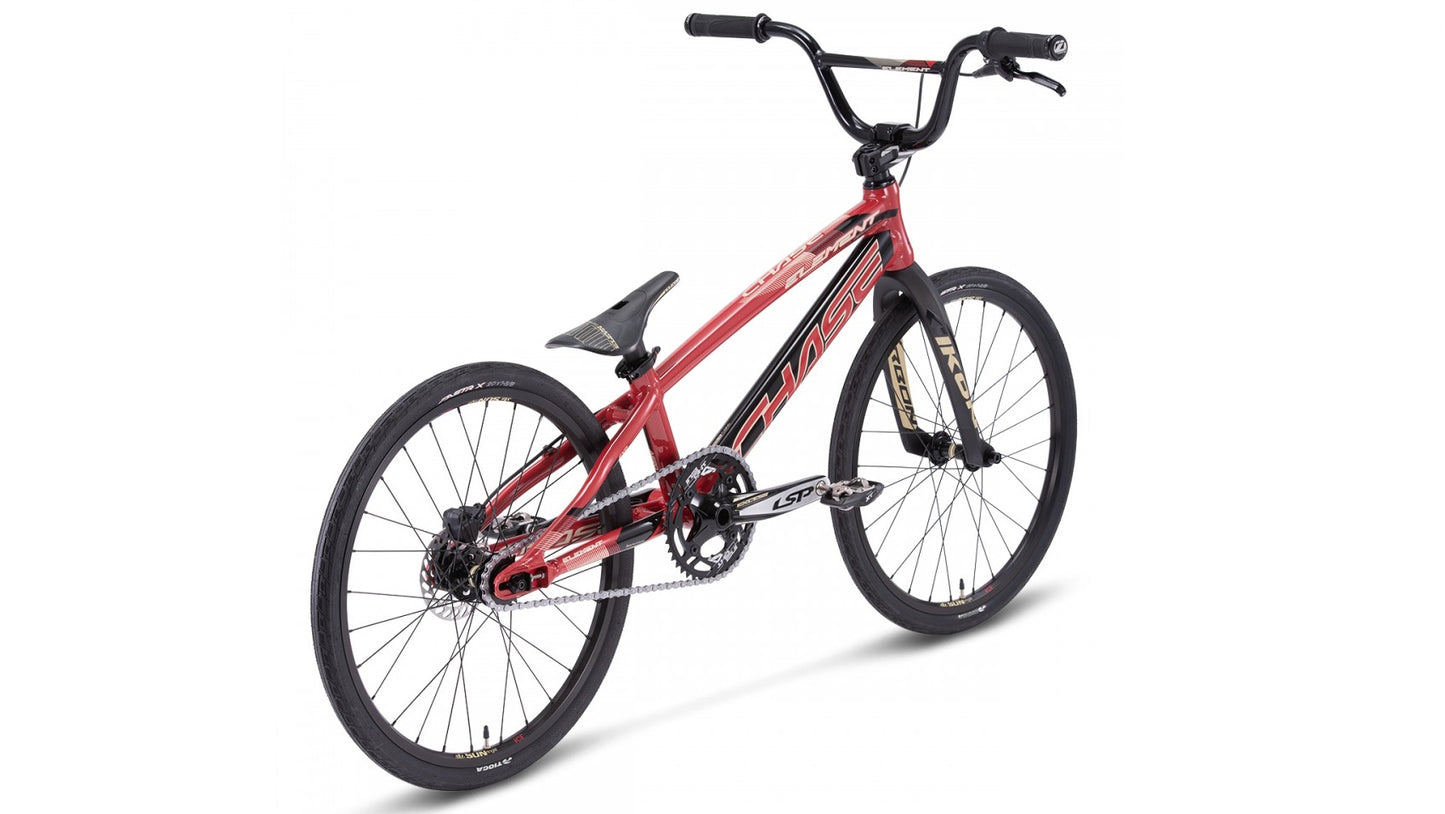

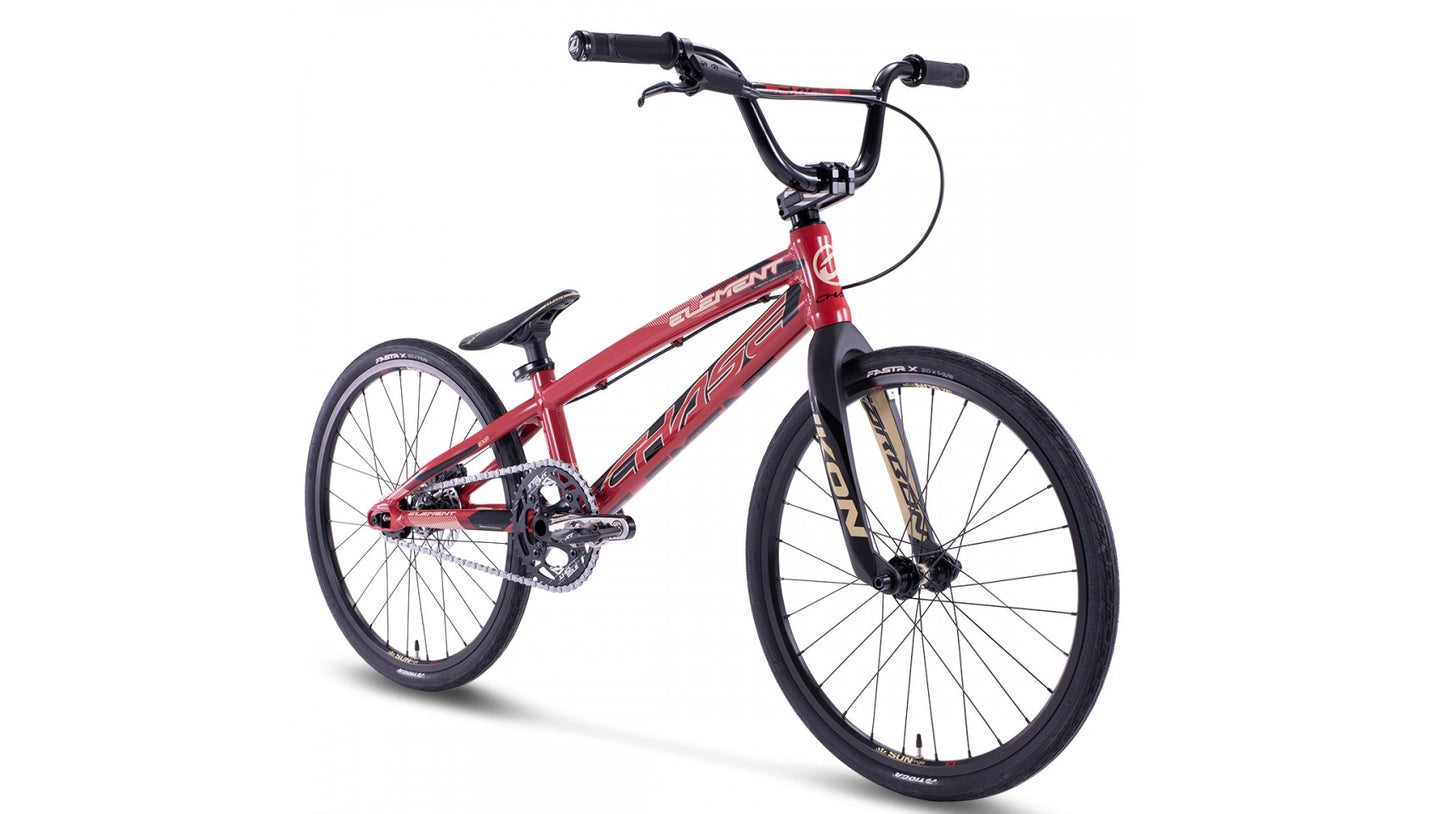

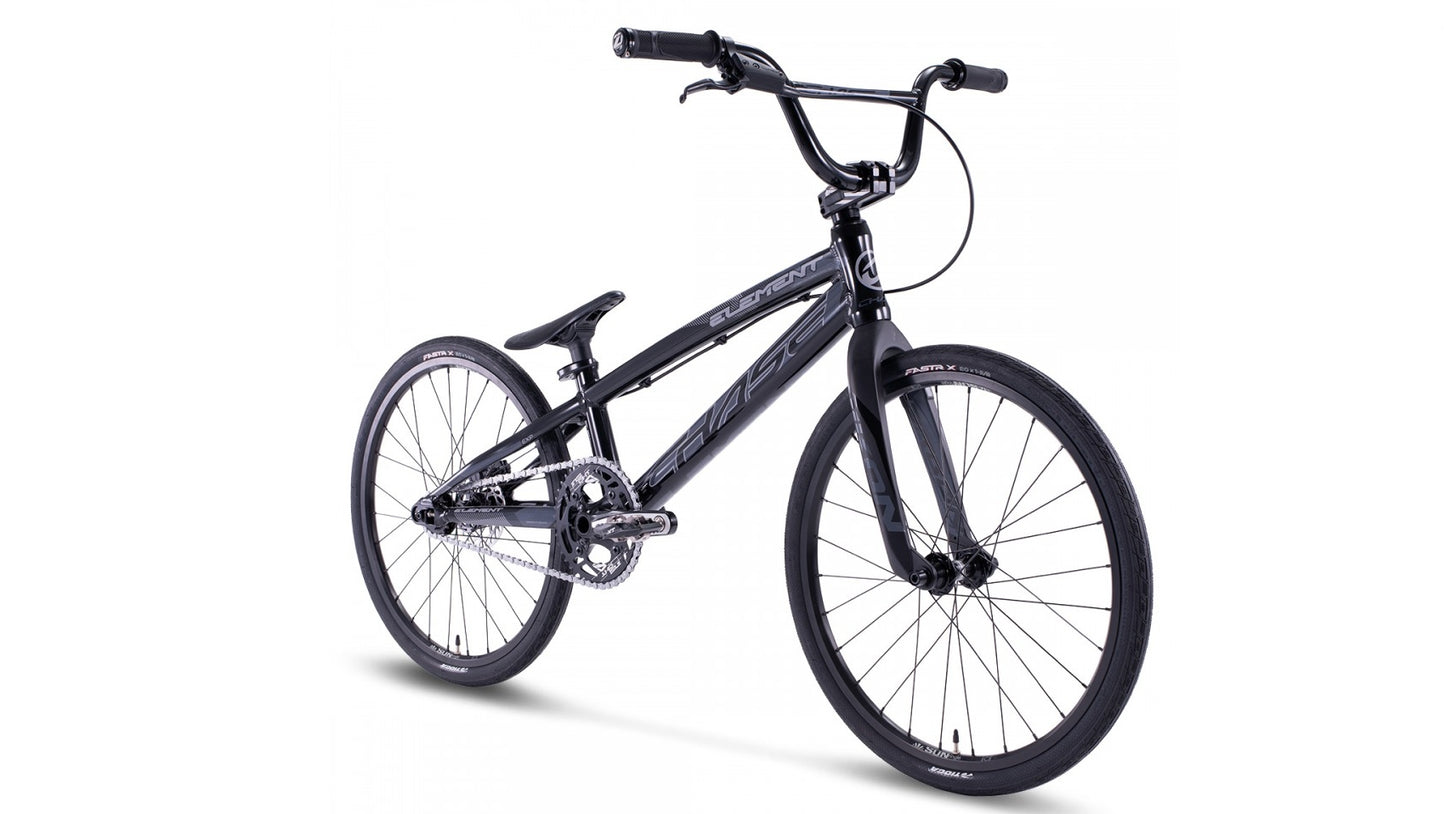

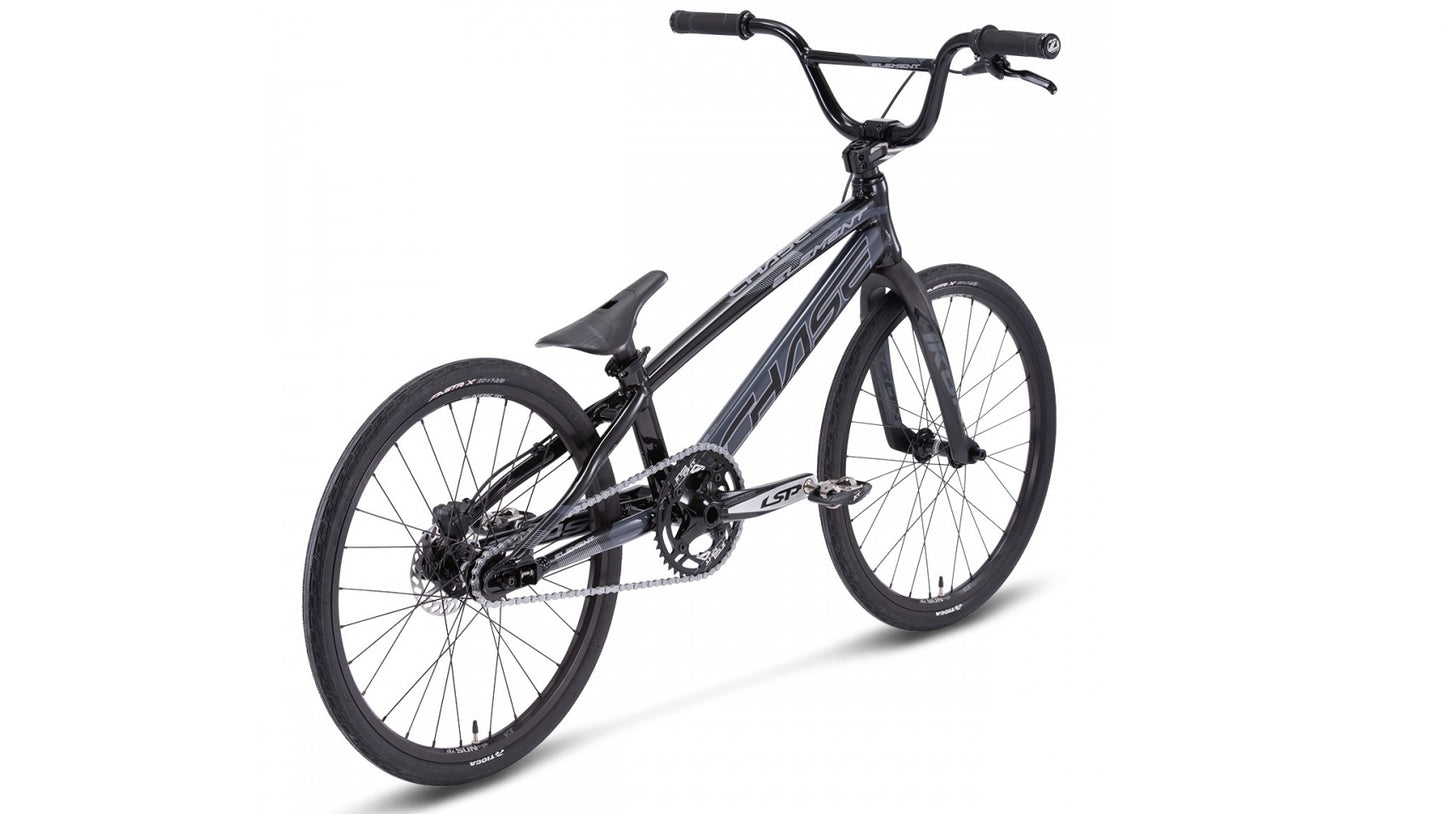

Chase Element Expert

Chase Element Expert

Regular price $1,389.99
Regular price Sale price $1,389.99
Sale Sold out
Shipping calculated at checkout.
Color

CHASE BICYCLES

Chase has been pushing the envelope for the past 11 years w/ our complete bikes & the newest edition of the Element, Element 10 is the best we have ever offered.

FRAME: Chase Element Expert 20" Top tube, Hydroformed 7005-T6 Alloy, Aero system shaping, Enclosed rear dropouts, Integrated Chain tensioner system
FORK: Ikon Carbon Pro 1-1/8", 20mm drop out, Alloy Steer Tube, Drop Out & Top Cap
STEM: Chase Element 31.8mm 45mm
HANDLEBAR: Chase Element 31.8mm 5.75"
CHAINRING: Insight 42T 4 Bolts BCD 104mm
CRANKSET: Excess LSP 165mm, Press Fit BB86
HUBS : Chase Element M6 Bolts, 28H Front, Chase Element M6 Cassette ISO Hub 28H, 3 Pawls Triple Angle Engagement 24T Ratchets Rear, 16T cog
RIMS: Sun Ringle ICI-1 Rims 20×1-3/8", 28H, No Brake Surface
TIRES: Tioga Fastr X 20×1-3/8" Front & Rear

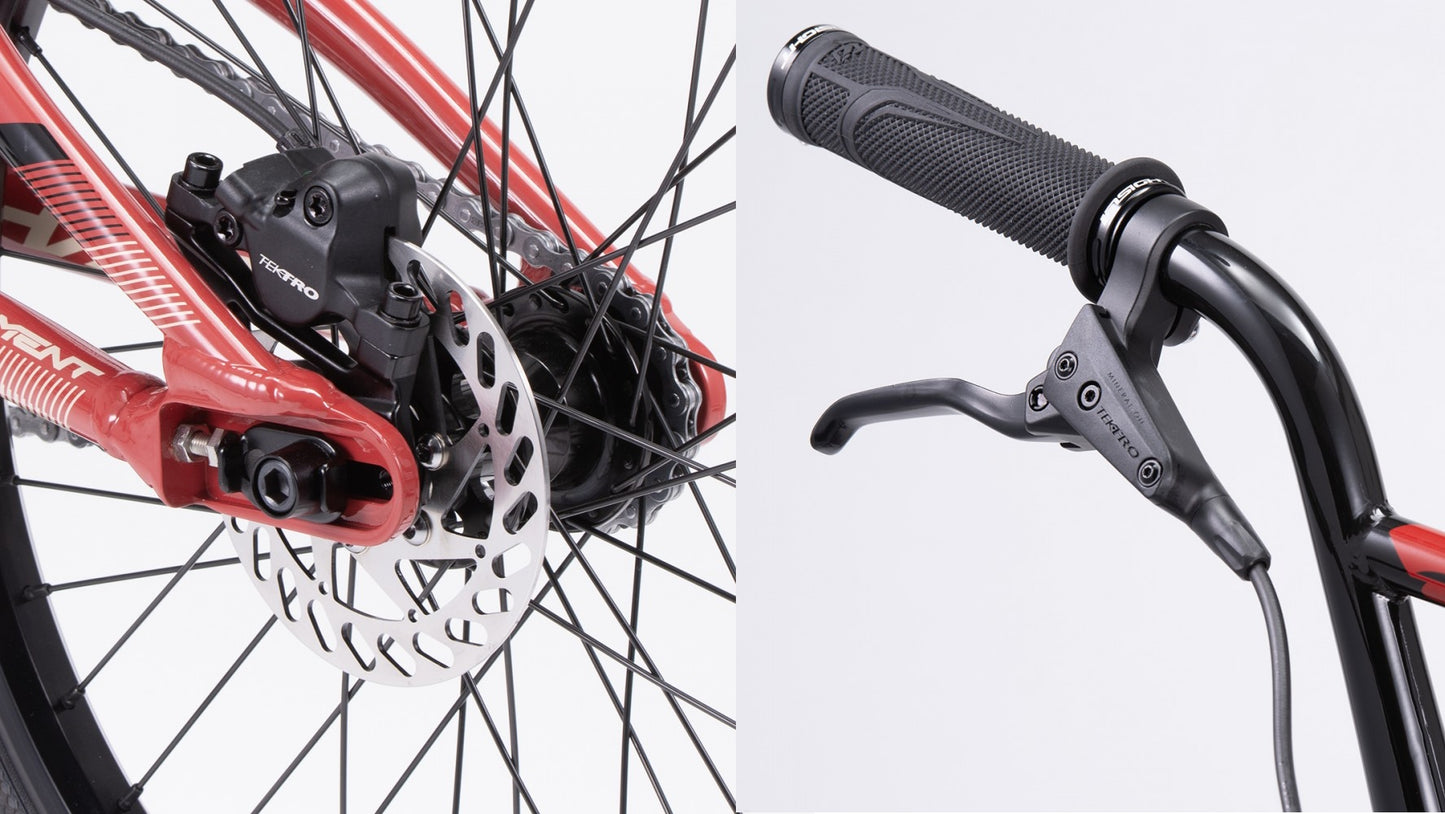

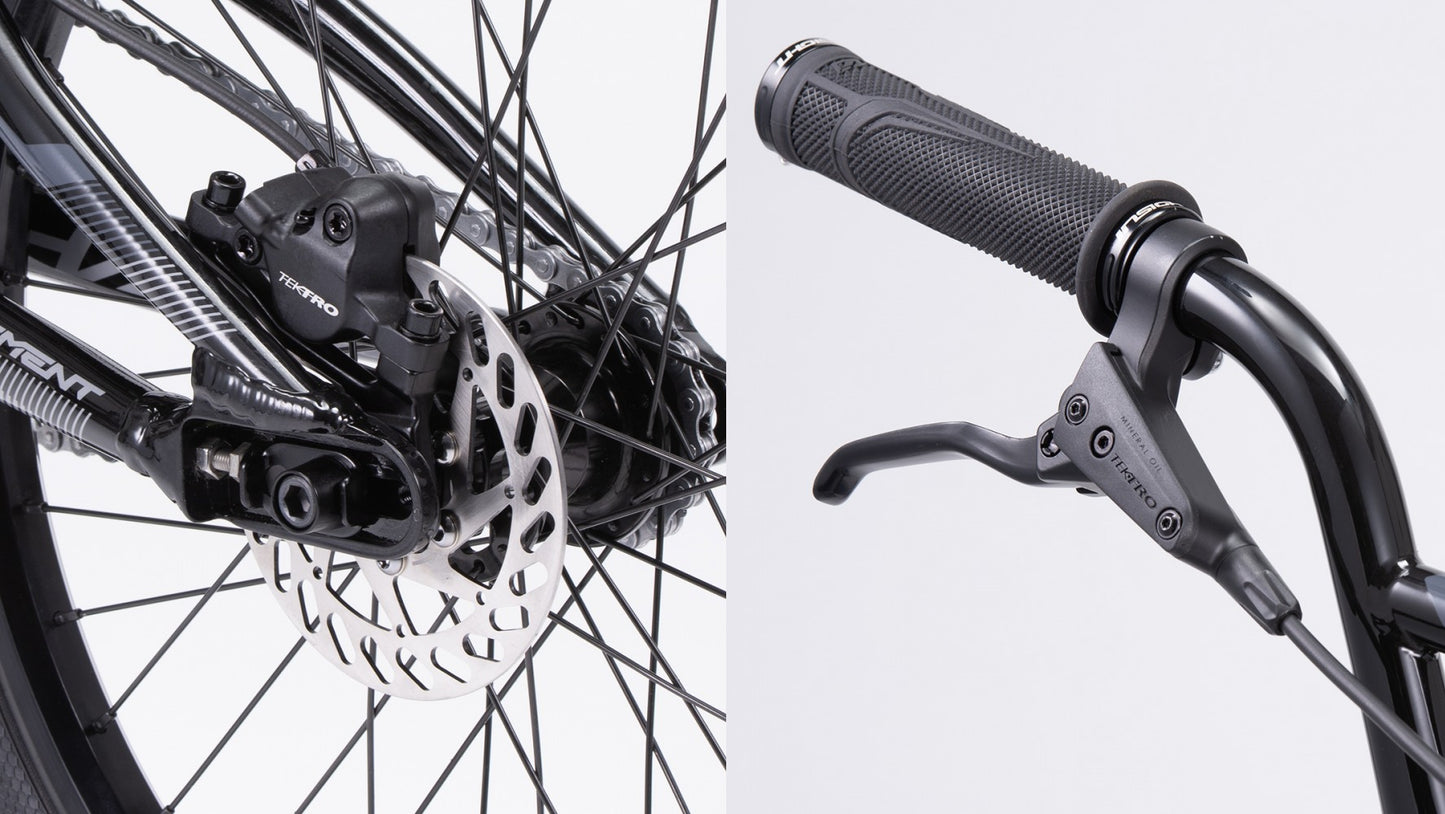

BRAKES: Tektro Hydraulic lever & caliper (Resin pads), 120mm disc rotor
SEAT: Chase Aero seat post & clamp / Elevn PC Pivotal seat
PEDALS: Nylon platform. Pictured with Shimano XT Pedals but this was for photo purposes only.

RECOMMENDED SIZE: 4' 7.5" - 5' 0.6" / 1m41 - 1m54
WEIGHT: 18.4 LBS / 8.2 Kg w/ pedals

SPECIFICATIONS :

FRAME Chase Element Expert 20" Top Tube 7005 T6 Alloy, Integrated Head Tube, 1-1/8", Close Drop Out
FORK Ikon Pro 20" Carbon, Alloy 1-1/8" Steer Tube, 20mm Drop Out with Adaptor 3/8" Axle, Alloy Top Cap
HEADSET Integrated IS 42/42 1-1/8", Sealed Bearing
HANDLEBAR Chase Element Alloy 5.75", Diameter 31.8mm, Rise, 26.25" Wide, 10° Back Sweep & 2° Up Sweep
GRIPS Insight C.O.G.S 130mm, Alloy Clamps Laser Etched Logo, PVC End Plug
STEM Chase Element 1-1/8" Steer Tube, Diameter 31.8mmmm, Length 45mm 6061 T6 Alloy CNC Laser Etched Logo
BB Press Fit 68/73mm Cartridge Bearings
CHAINRING Insight 42 Tooth 4 Bolts 104mm 1/2"x3/32" 5mm Alloy Ring
CRANK Excess LSP 2 Piece Crank 165mm Alloy Arm, 4 Bolt Spider, Cr-mo Pedal Inserts, Alloy Chain Ring Bolts / Nuts
PEDAL Nylon Platform Pedal 9/16"
CHAIN KMC Z1 narrow 1/2"x3/32"
COG 16 Tooth
FRONT HUB Chase Element M6 Bolts ,28H, Sealed Bearing
REAR HUB Chase Element Mini ISO, 28H, Sealed Bearing, M6 Bolts, Steel Cassette Body with 3 Pawls at Triple Angle Engagement for 24T Ratchets
SPOKES Front 215mm, Rear 213mm, 14 Gauge, Steel
NIPPLES Brass 14Gx5/8"
RIMS Sun Rims Alloy ICI-1 28H 20"x1-3/8" No Brake Surface Presta Valve
FRONT TIRE Tioga Fastr X 20"x1-3/8" 60 TPI Wire Bead
REAR TIRE Tioga Fastr X 20"x1-3/8" 60 TPI Wire Bead
TUBES 20×1-3/8" Presta valve
BRAKES Tektro HD-M281 Hydraulic, Resin Pads, 120mm Rotor, Lock Disc Adaptor
SADDLE Elevn PC Pivotal
SEAT POST Chase Aero Pivotal 27.2x260mm Alloy
SEAT CLAMP Chase Aero 27.2mm QR Alloy
CHAIN TENSIONER Integrated Built-In With New Lock Disc Adaptor



GEOMETRIES :

cadre

FRAME SIZE TT CS min LR AF SA HT SPL BBH WHEELS
Expert 20" - 508 mm 13.5" - 342.9 mm 1.5" - 38.1 mm 73° 70° 4.7" - 120 mm 9.2" - 236 mm 11" - 279.4 mm 20×1-3/8"
Pro 20.5" - 520.7 mm 14.25" - 362 mm 1.5" - 38.1 mm 74° 72,5° 4.7" - 120 mm 9.2" - 236 mm 11.5" - 292.1 mm 20×1.5"
Pro XL 21" - 533.4 mm 14.3" - 363.3 mm 1.5" - 38.1 mm 74° 72,5° 4.7" - 120 mm 9.2" - 236 mm 11.5" - 292.1 mm 20×1.75"
Pro XXL 21.5" - 546.1 mm 14.5" - 368.3 mm 1.5" - 38.1 mm 74° 72,5° 4.7" - 120 mm 9.2" - 236 mm 11.5" - 292.1 mm 20×1.75"
Pro XXXL 22.0" - 558.8 mm 14.5" - 368.3 mm 1.5" - 38.1 mm 74° 72,5° 4.7" - 120 mm 9.2" - 236 mm 11.5" - 292.1 mm 20×1.75"
Pro Cruiser 21.5" - 546.1 mm 15.25" - 387.3 mm 1.5" - 38.1 mm 73° 69,5° 4.7" - 120 mm 9.8" - 250 mm 12" - 304.8 mm 24×1.75"
Pro Cruiser + 22.0" - 558.8 mm 15.25" - 387.3 mm 1.5" - 38.1 mm 73° 69,5° 4.7" - 120 mm 9.8" - 250 mm 12" - 304.8 mm 24×1.75"
