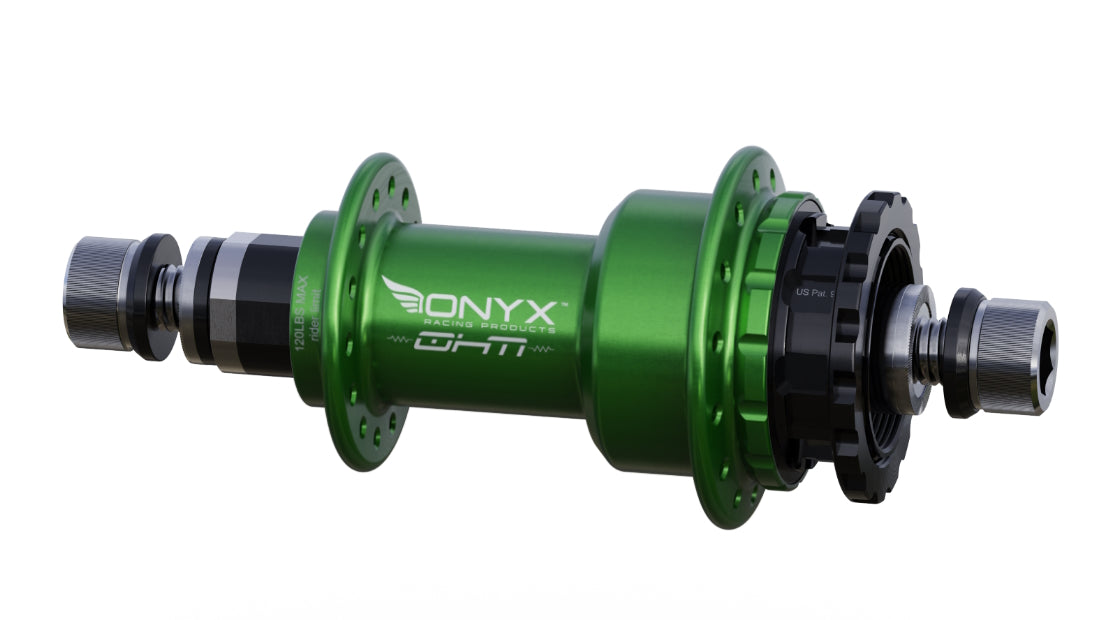

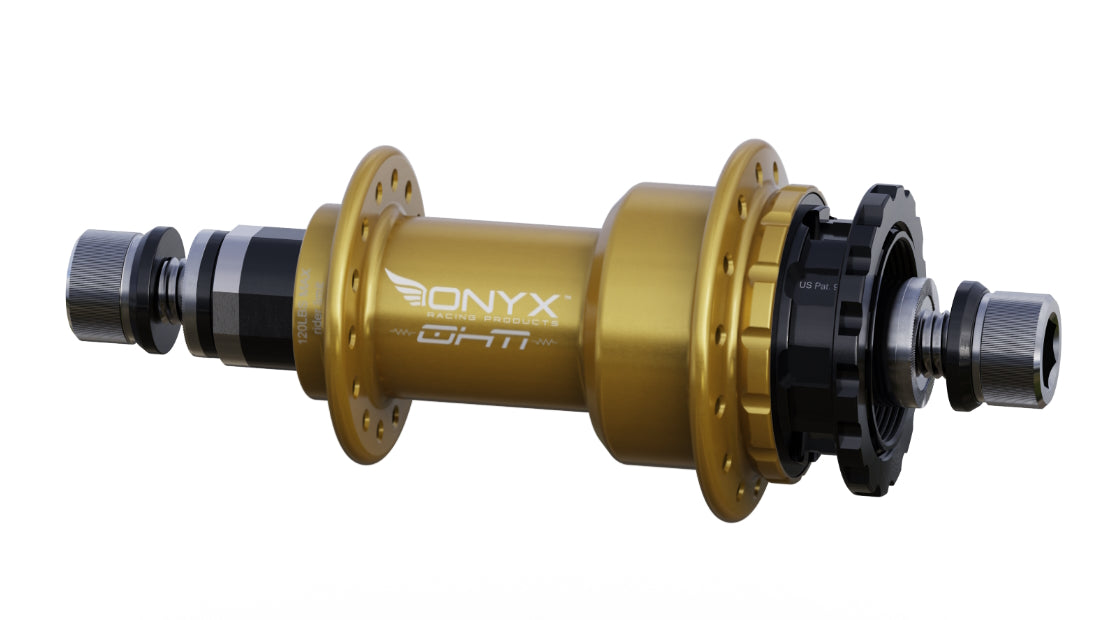

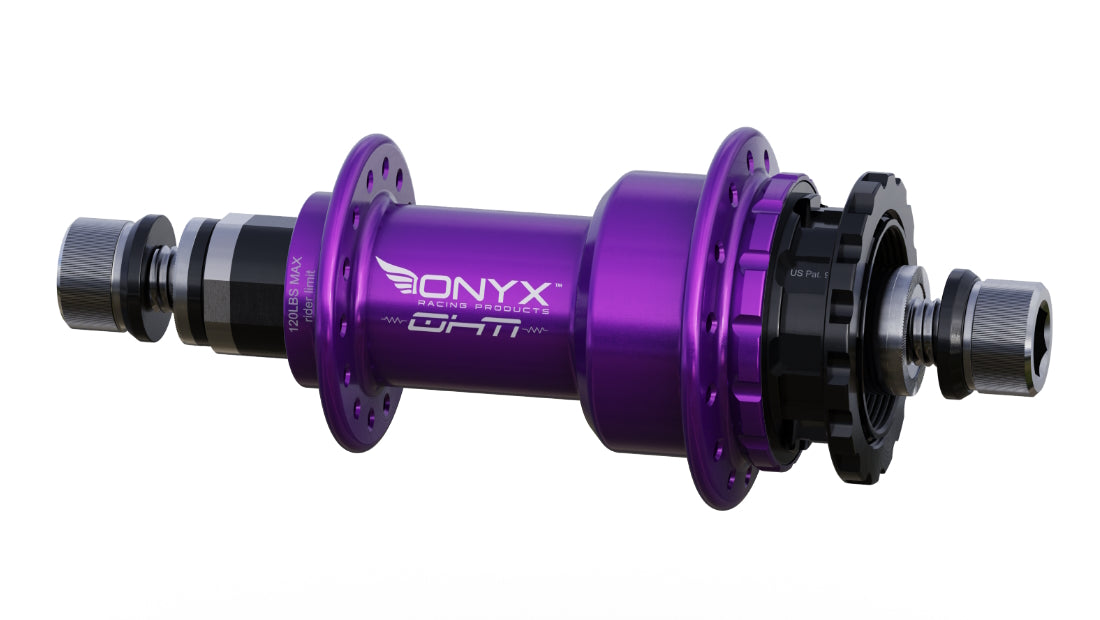

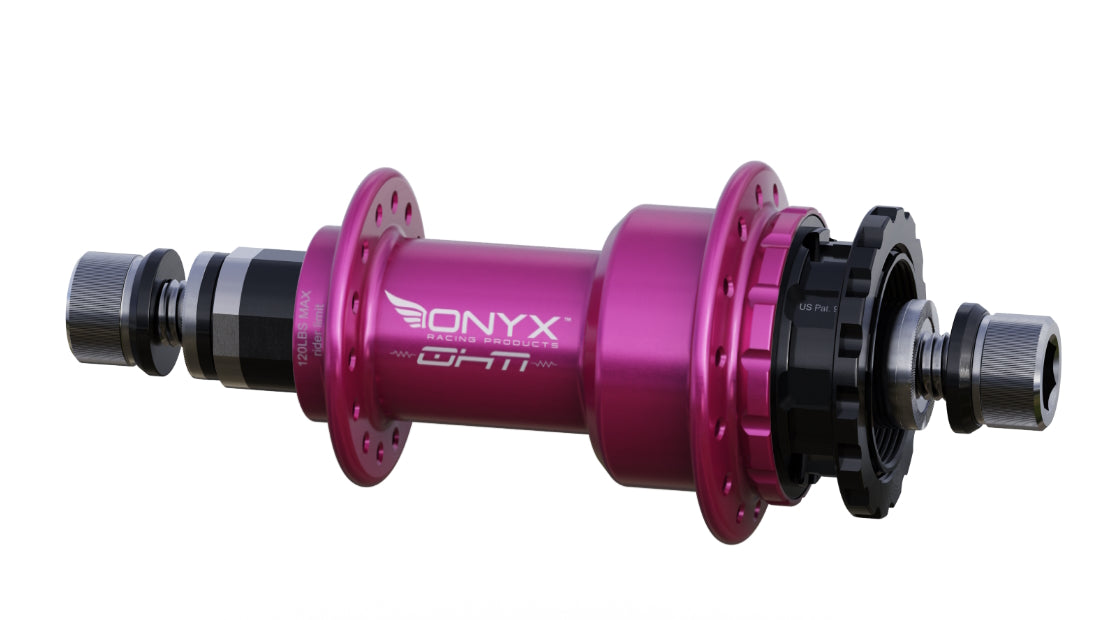

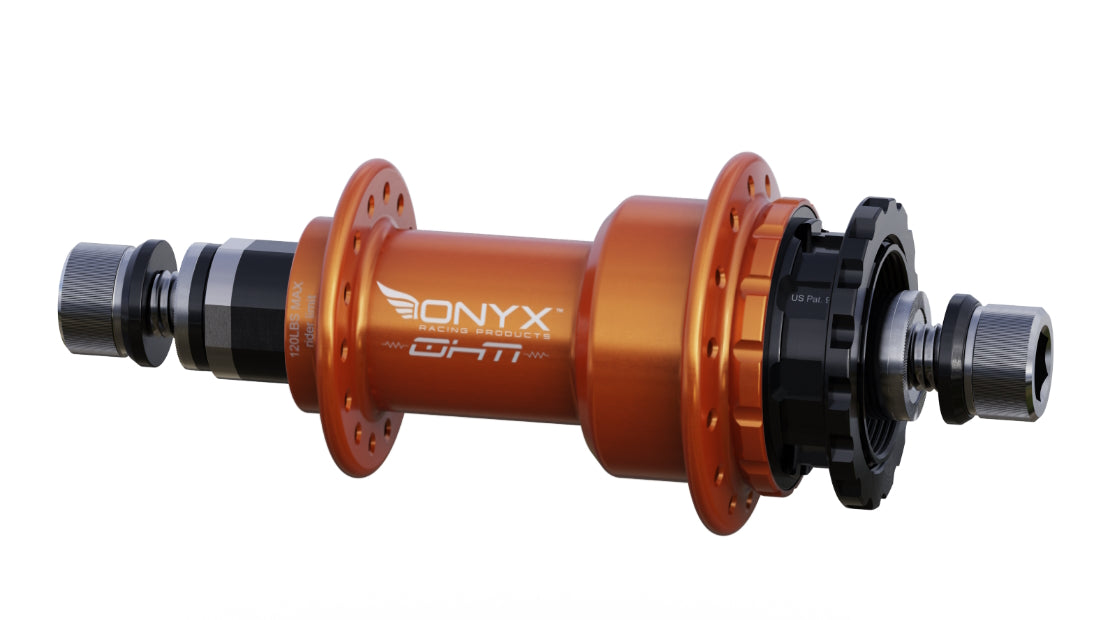

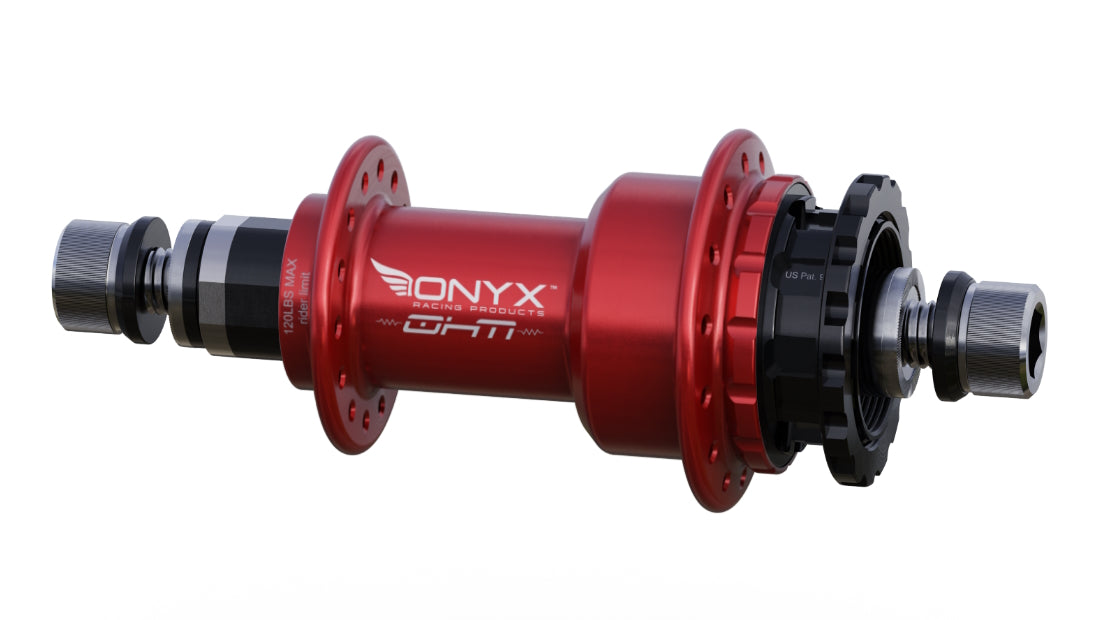

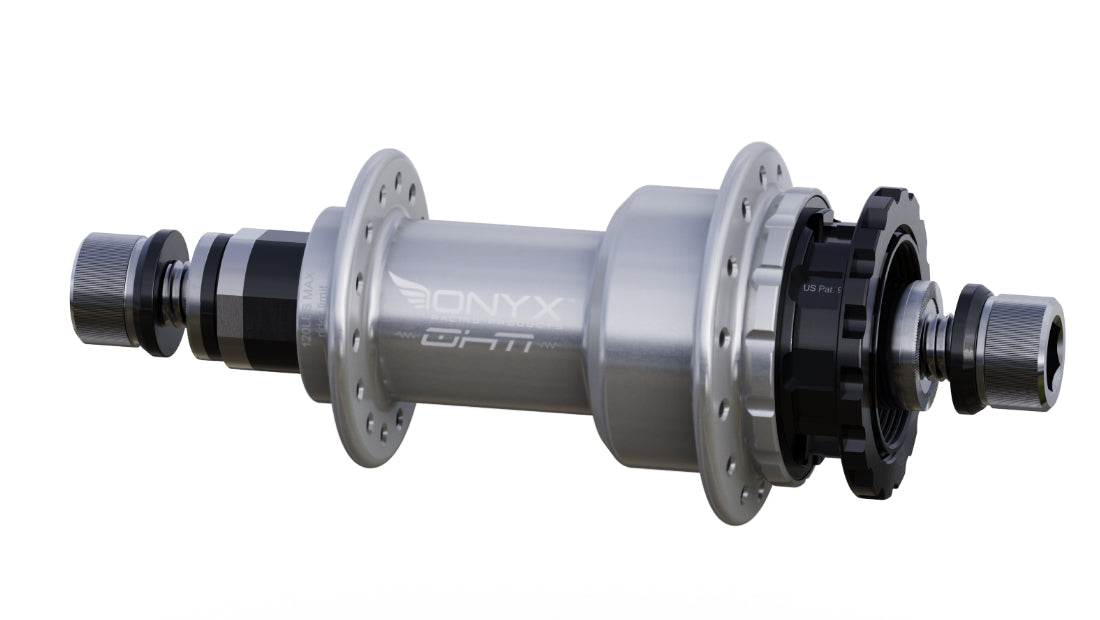

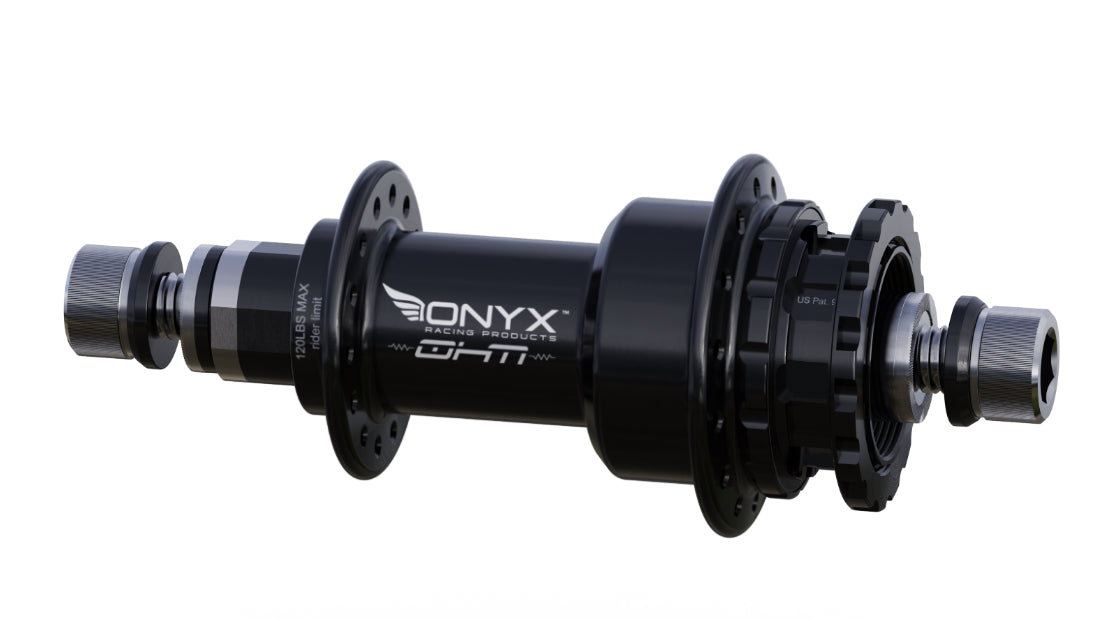

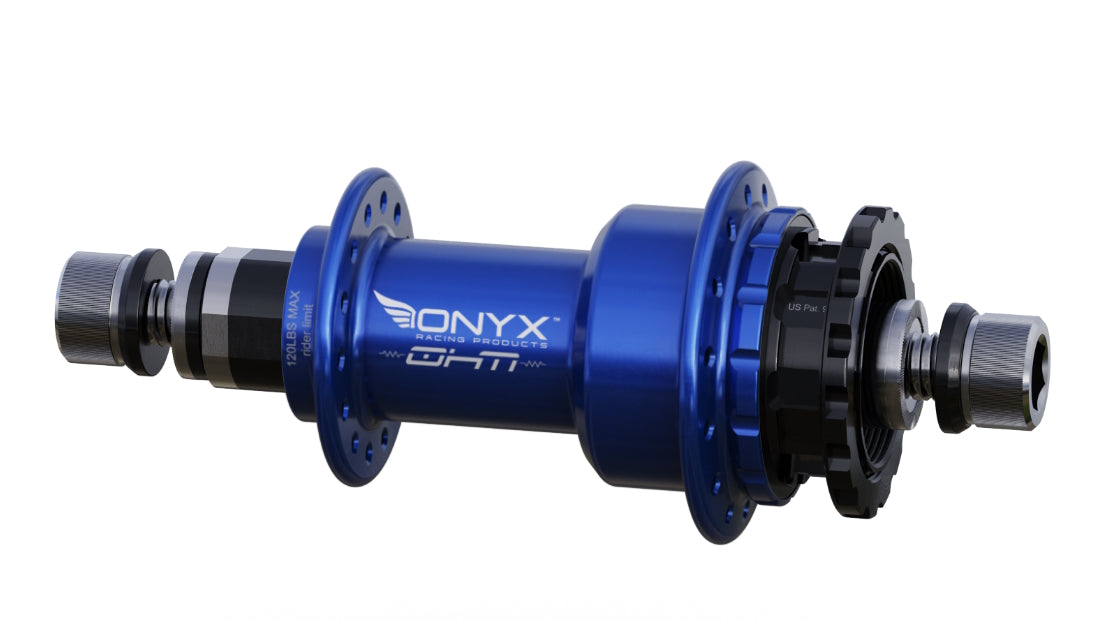

Onyx OHM HG-110 10mm Bolt on Rear Race Hub (28H)

$449.99

Vente Épuisé

Frais d'expédition calculés à l'étape de paiement.

Color Black Clear Blue Gold Red Green Purple Orange Pink

Quantité

Bolt-on BMX hubs are designed to work in conjunction w/ Chain tensioner(s) & have a MAX bolt torque of 15 Nm. Only the 28 spoke count hubshell is available in multiple anodized colors.

New for 2025! Bearings changed to EZO + Titanium bolts standard on all Ohm hubs

For Cogs Click Here: https://level7bikes.com/products/onyx-bmx-race-cogs-stainless-steel-and-alloy

Weight: 11.3oz / 320g
Hub Type: Rear
Axle Width - 110mm
Axle Diameter - 10mm
Spoke Count: 28
Attach Style: Bolt-on
Hub Shell Style: Solid
Driver style: Shimano Hyperglide®
Bolts: Titanium
Spoke Tension - Max kgf: 120

A - Hub Center To Flange Center, Non-Drive Side (mm)	27.87
B - Hub Center To Flange Center, Drive Side (mm)	27.87
C - Axle Width (mm)	110
Spoke Hole Circle Diameter, Drive Side (mm)	47
Spoke Hole Circle Diameter, Non-Drive Side (mm)	37
Spoke Hole Counts Available	28
