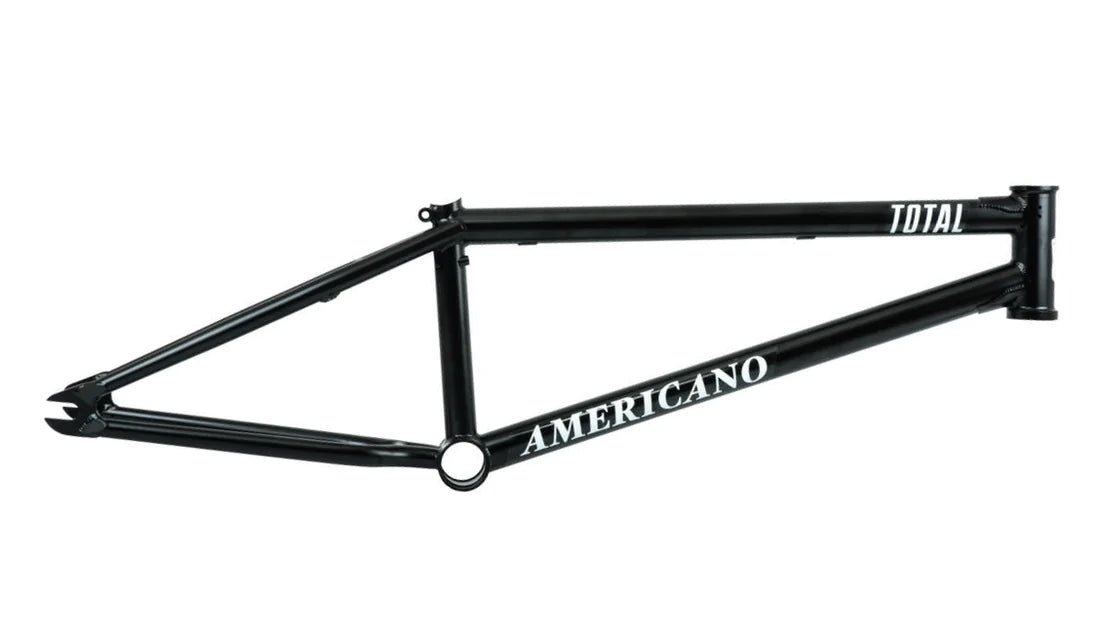

Total Americano Frame

Built for a rider who always goes a bit bigger than everyone else on the park course, the Americano is strong yet light enough to be ridden in a technical but burly style. Together w/ Nick Bruce, Total have worked hard to get the frame to ride well & be durable, adding the 'DBS' brake mod which simplifies the lower brake cables of a gyro, originally designed by team mate Mark Webb but refined by their product designer for the production model. Due to the routing of the DBS system through the seat tube, a short seat post must be used to ensure the cables aren't fouled.

Weight:

2.14kg/ 4lbs 11oz

Specs:

4130 Chromoly Steel
75.1° head tube angle
71° seat tube angle
8.25" stand over
13.3" chain stays (slammed)
11.5" bottom bracket height
Top tube & down tube gussets
DBS cable routing
Supplied w/ threaded removable brake mounts
Headtube tapped for Gyro tabs
6mm thick CNC'd dropouts w/ integrated chain tensioners
Top tube sizes: 20.5"/ 20.75"/ 21”
