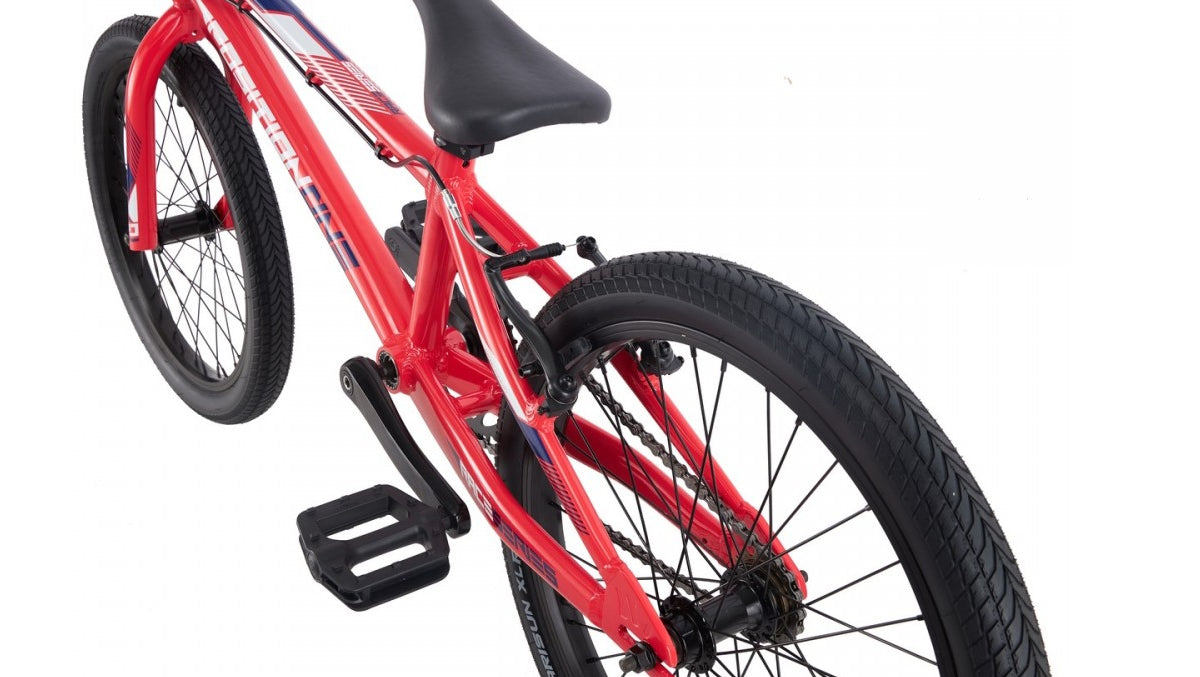

Position One Pro
Position One Pro
Verfügbarkeit für Abholungen konnte nicht geladen werden
POSITION ONE Bikes offers you one of the best BMX Racing Bikes for your first ride & race on track & help get you on the way to becoming a future BMX Champion. We offer 5 sizes in the Position One BMX Racing line. We start by using the winning race proven geometry from our championship winning brand, Chase BMX, to create a truly certified BMX racing bike. We then load the POSITION ONE bikes w/ real BMX racing parts, giving you not only a real race bike, but the best value for your money in a entry-level race bike, from a company that actually races. All of our POSITION ONE racing bikes feature a 6061-T6 alloy frame w/ integrated head tubes, race perfect geometry, 100% chromoly bars & forks, sealed hubs, double walled rims, & raced tuned parts from great companies like KMC, VEE RUBBER, & ARISUN.
- Frame Pro 20.5" Top Tube
- Fork Full Cr-Mo Fork
- Head Set Integrated Sealed Bearing
- Chain Ring 4 Bolts 43 Tooth
- Crank Alloy 175mm
- Chain KMC Z33
- Rims Double Wall 36H 1.75"
- Tires Arisun XLR8 1.95"/1.75"
- Seat & Seat Post Pro Combo 27.2mm
RECOMMENDED SIZE: 4' 11,8" - 5' 5,4" / 1m52 - 1m66
WEIGHT: 9.5 KG / 20.94lbs w/out pedals
GEOMETRIES:
| FRAME SIZE | TT | CS min | LR | AF | SA | HT | SPL | BBH | WHEELS |
|---|---|---|---|---|---|---|---|---|---|
| Micro | 16.15 - 410.21 mm | 10.85" - 275.6 mm | 1.8" - 46 mm | 71° | 69° | 4" - 100 mm | 8" - 203.5 mm | 9.10" - 231.14 mm | 18×1" |
| Mini | 17.25" - 438.15 mm | 12.5" - 317.5 mm | 1.8" - 46 mm | 72° | 70° | 4" - 100 mm | 8.65" - 219.71 mm | 10.6" - 269.24 mm | 20×1-1/8" |
| Junior | 19" - 482.6 mm | 13" - 330.2 mm | 1.8" - 46 mm | 73° | 72° | 4" - 100 mm | 8.75" - 222.25 mm | 10.6" - 269.24 mm | 20×1-1/8" |
| Expert | 19.5" - 495.3 mm | 13.25" - 336.55mm | 1.8" - 46 mm | 74° | 72° | 4" - 100 mm | 8.75" - 222.25 mm | 11" - 279.4 mm | 20×1-3/8" |
| Pro | 20.5" - 520.7 mm | 14.25" - 361.95 mm | 1.8" - 46 mm | 74° | 72° | 4.33" - 110 mm | 9.25" - 234.95 mm | 11" - 279.4 mm | 20×1.75" |
PRODUCT DETAILS:
- FRAME Pro 20.5" Top Tube 6061 T6 Alloy, Integrated Head Tube, 1-1/8", Water Decals
- FORK Full Cr-Mo, 1-1/8" Steer Tube
- HANDLEBAR 7.5" Rise 27" Wide, 10° Back Sweep & 2° Up Sweep
- GRIPS 130mm Soft Single Ply Without Flange
- STEM Top Load 50mm 6061 T6 Alloy
- HEADSET Integrated Sealed Bearing
- CRANKS 3 Piece Crank 175mm Alloy Arm, Cr-Mo Chain Ring Bolts / Nuts
- BOTTOM BRACKET 118mm Sealed Bearing Square BB
- CHAINRING 43 Tooth 4 Bolt 104mm 1/2"X3/32" 5mm Steel Ring
- CHAIN KMC Z33 1/2"X3/32"
- PEDALS Platform PP 9/16"
- RATIO GEAR 43x16
- SADDLE Pro Combo
- SEAT POST Pro Combo 27.2mm
- SEAT POST CLAMP Alloy 1 Bolt
- FRONT RIM Double Wall 36H 20x1.75" Schrader Valve
- REAR RIM Double Wall 36H 20x1.75" Schrader Valve
- FRONT HUB 36H, Double Contact Seals Bearing, 3/8" Axle/Nuts
- REAR HUB 36H, Double Contact Seals Bearing, 3/8" Axle/Nuts, Freewheel
- COG 16 Tooth
- SPOKES 14 Gauge
- NIPPLES Brass Nipples
- FRONT TIRE Arisun XLR8 20x1.95"
- REAR TIRE Arisun XLR8 20x1.75"
- TUBES 20x1.5"-1.75" Schrader Valve
- BRAKE LEVER Alloy Pro
- REAR BRAKE Alloy 103mm
- WEIGHT 9.5 KG / 20.94lbd w/out Pedals
- FRAME SIZE Pro
- RIDER SIZE 4'9" - 5'4"
