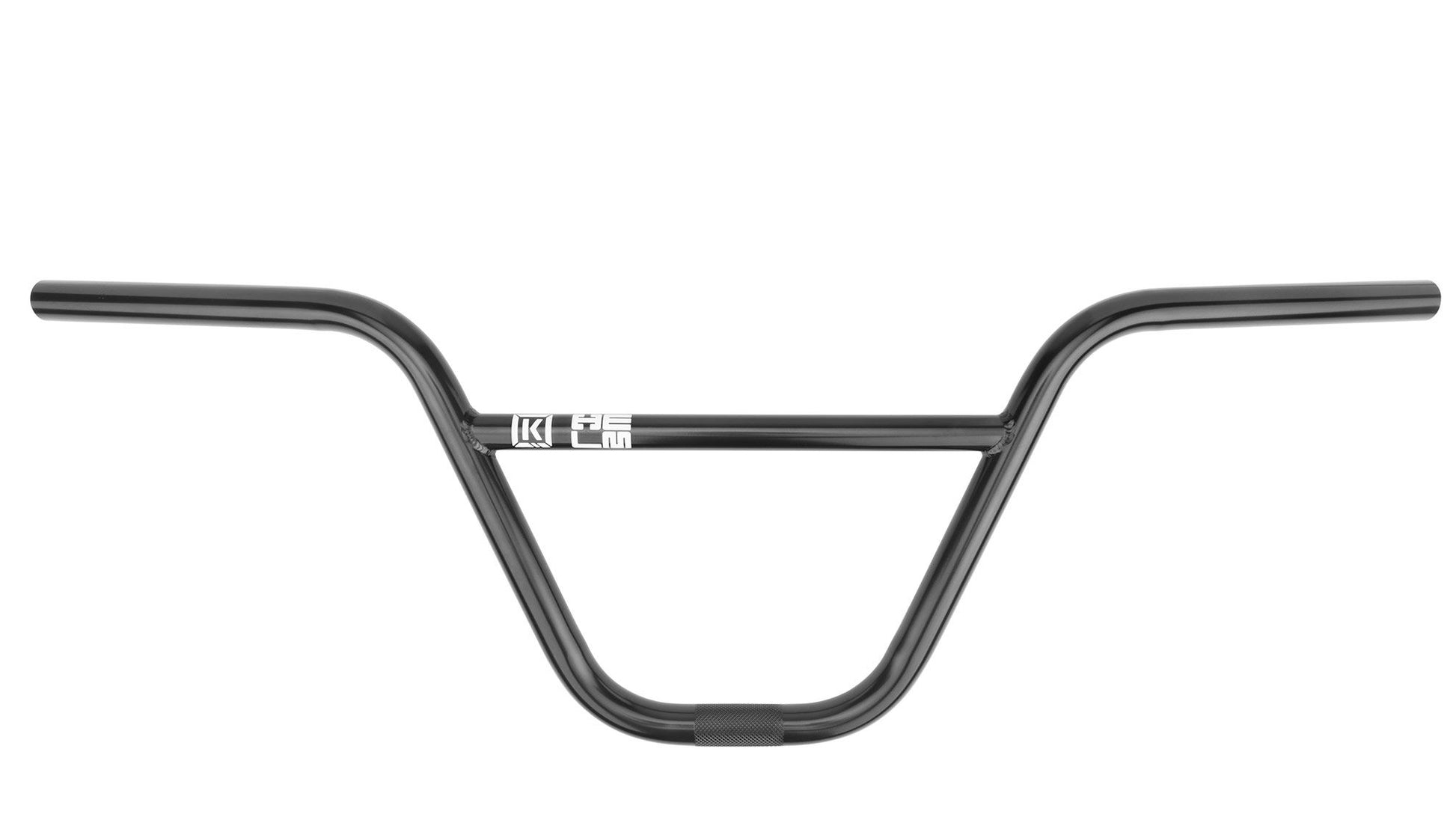

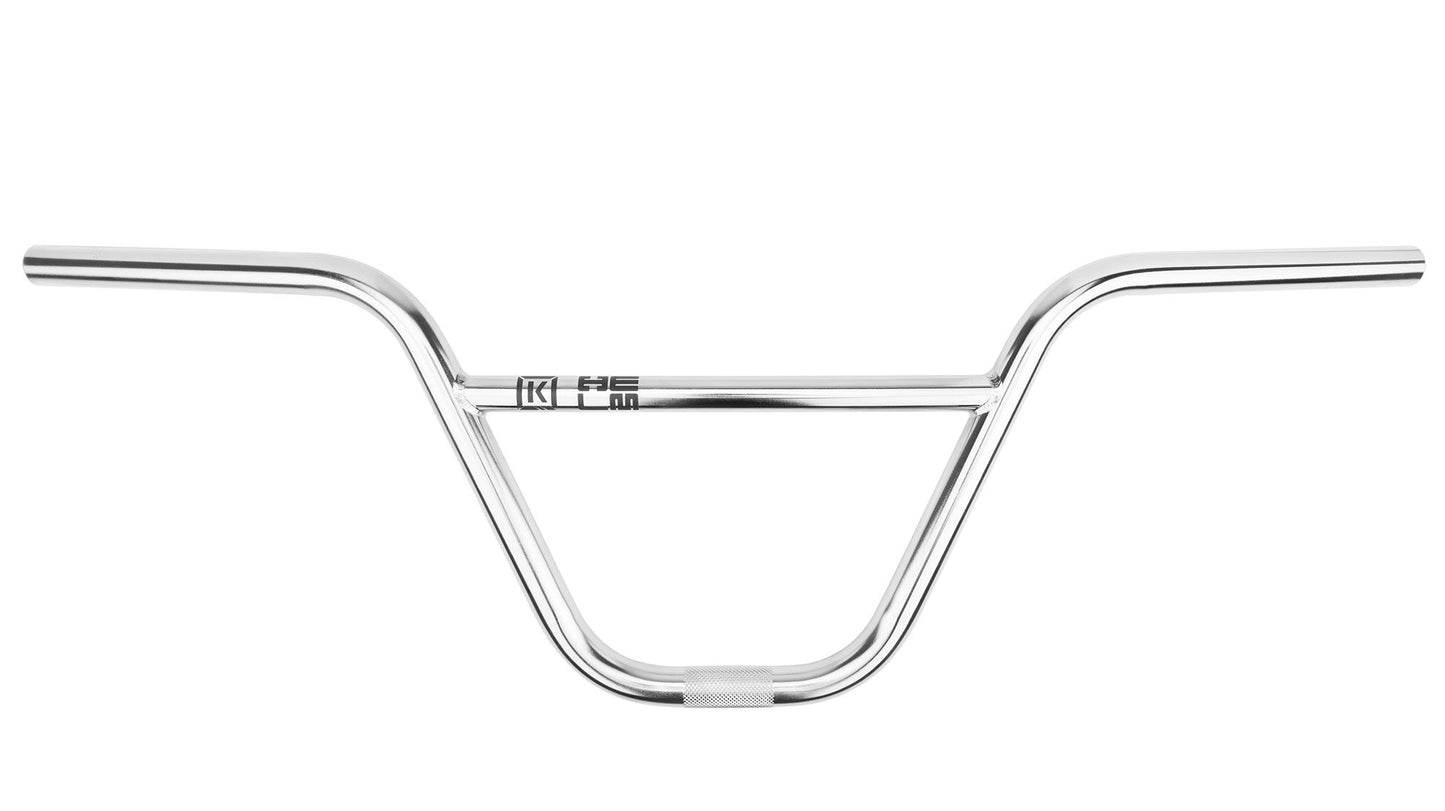

Kink Helm Bars

The Helm bars strike the right balance between strength & weight by using internal butting throughout the main tubing & crossbar. This increases thickness & strength where it's needed in the bends, weld points, & the ends of the bars while keeping the tubing thinner in the straight sections. Constructed from 4130 chromoly steel tubing, these bars are also heat treated for superior strength after welding. The Helm bars come in various rises to fit your preference, & have a 12" backsweep,1" upsweep, and 29", 29.5", 29.5", & 30" widths.

Rise: 8.75". 9", 9.5", 10" & 10.5"

Width: 29", 29.5", 29.5 & 30"

Backsweep: 12 Degrees

Upsweep: 1 Degree

Tubing: Multi Butted 4130 Chromoly Steel

Heat Treatment: TruTherm Post Weld Heat Treated

Weight: 31.4oz (9.5")
