Chase Element Pro XL

$1,389.99

Sale Ausverkauft

Versand wird beim Checkout berechnet

Color Black & Grey Wine & Sand

Anzahl

CHASE BICYCLES

Chase has been pushing the envelope for the past 11 years w/ our complete bikes & the newest edition of the Element, Element 10 is the best we have ever offered.

FRAME: Chase Element Pro XL 21" Top tube, Hydroformed 7005 T6 Alloy, Aero system shaping, Enclosed rear dropouts, Integrated Chain tensioner system
FORK: Ikon Carbon Pro 1-1/8", 20mm Drop Out, Alloy Steer Tube, Drop Out & Top Cap
STEM: Chase Element 31.8mm 53mm
HANDLEBAR: Chase Element 31.8mm 8.0"

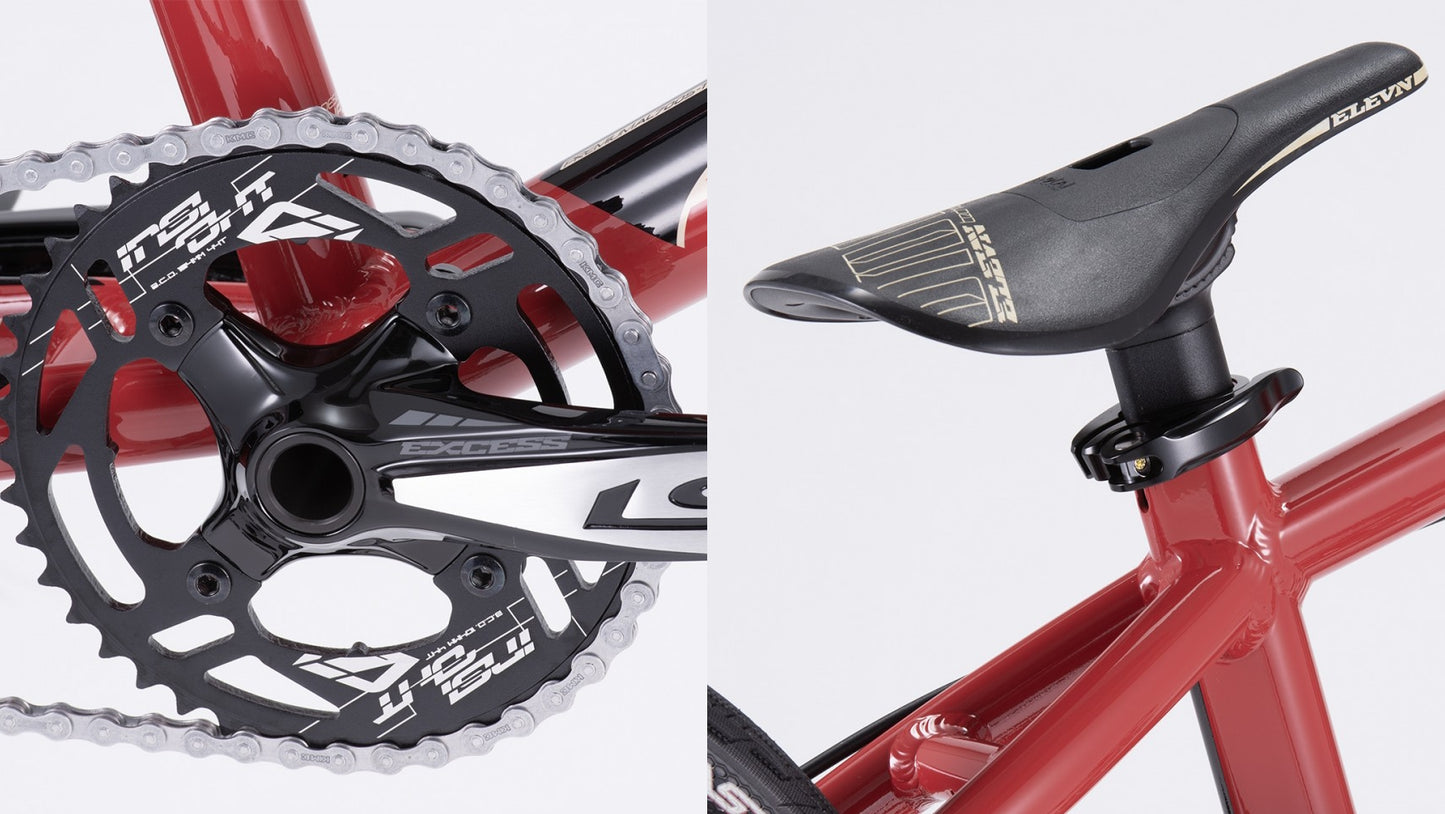

CHAINRING: Insight 44T 4 Bolts BCD 104mm
CRANKSET : Excess LSP 180mm, Press Fit BB86
HUBS: Chase Element 3/8" Bolts, 36H Front, Chase Element 3/8" Cassette ISO Hub 36H, 3 Pawls Triple Angle Engagement 24T Ratchets Rear, 16T cog
RIMS: Sun Ringlé Envy Rims 20×1.75", 36H, No Brake Surface
TIRES: Tioga Fastr X 20×1.75" Front & 20×1.60" Rear
BRAKES: Tektro Hydraulic lever and caliper (Resin Pads), 120mm disc rotor, Lock Disc Adaptor
SEAT: Chase Aero seat post & clamp / ELEVN PC Pivotal seat
PEDALS: Nylon Platform - Pictured w/ Shimano XT Pedals but this was for photo purposes only.

RECOMMENDED SIZE: 5' 4.6" - 5' 10.1" / 1m64 - 1m78
WEIGHT: 20.85 LBS / 9.45Kg with pedals

SPECIFICATIONS :

FRAME	Chase Element Pro XL 21" Top Tube, 7005 T6 Alloy, Integrated 1-1/8″ Head Tube, Enclosed rear dropouts and Chain tensioner system
FORK	Ikon Pro 20" Carbon, Alloy 1-1/8" Steer Tube, 20mm Drop Out with Adaptor 3/8" Axle, Alloy Top Cap
HEADSET	Integrated IS 42/42 1-1/8", Sealed Bearing
HANDLEBAR	Chase Element 31.8mm, 8.0" Rise, 28.5" Wide, 10° Back Sweep, 2° Up Sweep
GRIPS	Insight C.O.G.S 145mm, Alloy Clamps Laser Etched Logo, PVC End Plug
STEM	Chase Element 1-1/8" Steer Tube, Diameter 31.8mmmm, Length 53mm 6061 T6 Alloy CNC Laser Etched Logo
BB	Press Fit 68/73mm Cartridge Bearings
CHAINRING	Insight 44 Tooth 4 Bolt 104mm 1/2"x3/32" 5mm Alloy Ring
CRANK	Excess LSP 2 Piece Crank 180mm Alloy Arm, 4 Bolt Spider, Cr-mo Pedal Inserts, Alloy Chain Ring Bolts / Nuts
PEDAL	Nylon Platform Pedal 9/16"
CHAIN	KMC Z1 narrow 1/2"x3/32"
COG	16 Tooth
FRONT HUB	Chase Element 3/8" Bolts, 36H, Sealed Bearing
REAR HUB	Chase Element Pro ISO Hub, 36H, Sealed Bearing, 3/8" Bolts, Steel Cassette Body with 3 Pawls at Triple Angle Engagement for 24T Ratchets
SPOKES	Front 186mm, Rear 181mm, 14 Gauge, Steel
NIPPLES	Brass 14Gx5/8"
RIMS	Sun Rims Alloy Envy Front 36H 20"x1.75" No Brake Surface Schrader Valve
FRONT TIRE	Tioga Fastr X 20"x1.75" 60 TPI Wire Bead
REAR TIRE	Tioga Fastr X 20"x1.60" 60 TPI Wire Bead
TUBES	20×1.50/1.75" Schrader valve
BRAKES	Tioga Fastr X 20"x1.65" 60 TPI Wire Bead, Lock Disc Adaptor
SADDLE	Elevn PC Pivotal
SEAT POST	Chase Aero Pivotal 27.2x260mm Alloy
SEAT CLAMP	Chase Aero 27.2mm QR Alloy
CHAIN TENSIONER	Integrated Built-In With New Lock Disc Adaptor

GEOMETRIES :

cadre

FRAME SIZE	TT	CS min	LR	AF	SA	HT	SPL	BBH	WHEELS
Expert	20" - 508 mm	13.5" - 342.9 mm	1.5" - 38.1 mm	73°	70°	4.7" - 120 mm	9.2" - 236 mm	11" - 279.4 mm	20×1-3/8"
Pro	20.5" - 520.7 mm	14.25" - 362 mm	1.5" - 38.1 mm	74°	72,5°	4.7" - 120 mm	9.2" - 236 mm	11.5" - 292.1 mm	20×1.5"
Pro XL	21" - 533.4 mm	14.3" - 363.3 mm	1.5" - 38.1 mm	74°	72,5°	4.7" - 120 mm	9.2" - 236 mm	11.5" - 292.1 mm	20×1.75"
Pro XXL	21.5" - 546.1 mm	14.5" - 368.3 mm	1.5" - 38.1 mm	74°	72,5°	4.7" - 120 mm	9.2" - 236 mm	11.5" - 292.1 mm	20×1.75"
Pro XXXL	22.0" - 558.8 mm	14.5" - 368.3 mm	1.5" - 38.1 mm	74°	72,5°	4.7" - 120 mm	9.2" - 236 mm	11.5" - 292.1 mm	20×1.75"
Pro Cruiser	21.5" - 546.1 mm	15.25" - 387.3 mm	1.5" - 38.1 mm	73°	69,5°	4.7" - 120 mm	9.8" - 250 mm	12" - 304.8 mm	24×1.75"
Pro Cruiser +	22.0" - 558.8 mm	15.25" - 387.3 mm	1.5" - 38.1 mm	73°	69,5°	4.7" - 120 mm	9.8" - 250 mm	12" - 304.8 mm	24×1.75"
